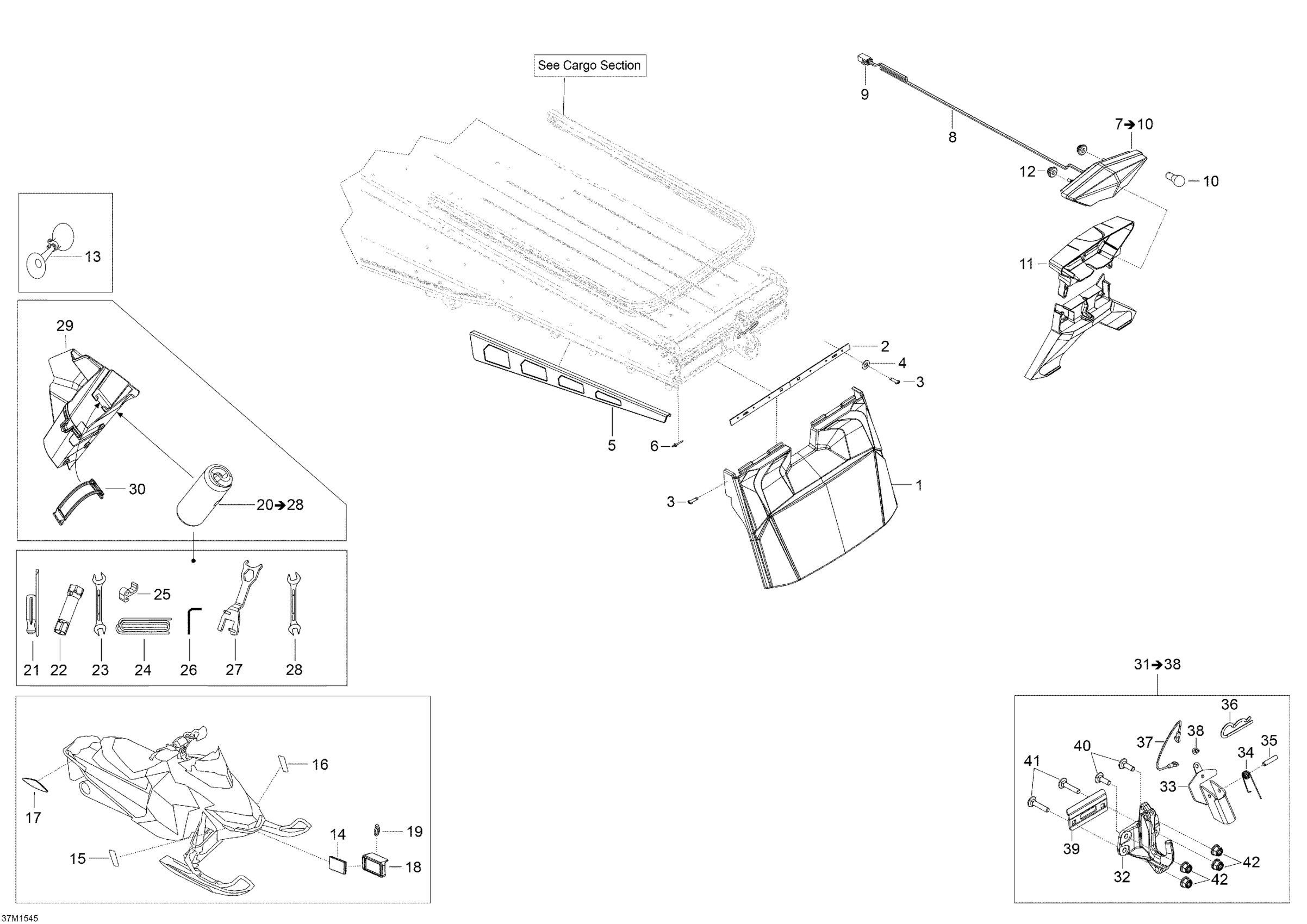

Ski-Doo Tundra WT 550 RER, 2015 Utilities _37M1545 Diagram
#
1
Snow Guard
520001411
Unavailable
2
Plate
520001021
Unavailable
3
Forming Screw M5 x 16
250000676
Unavailable
4
Washer M5
250200025
Unavailable
5
RH Protector
520000693
Unavailable
5
LH Protector
520000694
Unavailable
6
Rivet Hucklok
293150163
Unavailable
7
Rear Light | Includes 200 to 200a
520000848
Unavailable
8
Rear Wiring Harness
520000849
Unavailable
9
Male Housing, 3 Circuits
515175494
Unavailable
10
Bulb
520000758
Unavailable
11
Rear Light Cover
511000764
Unavailable
12
Stopper Rubber
705014429
Unavailable
13
Horn
549011291
Unavailable
14
Reflector (Bright)
21118
Unavailable
15
Yellow, RH Reflector
520001600
Unavailable
16
Yellow, LH Reflector
520001601
Unavailable
17
Amber, Lateral Reflector
705002423
Unavailable
18
Deep Black, Reflector Support
520000871
Unavailable
19
TIE RAP - Call your local BRP dealership
27120
Unavailable
20
Tool Kit | Includes 20 To 28
529000065
Unavailable
21
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
22
Set Key, 16/21 mm
529000046
Unavailable
23
FORK WRENCH, 10/13 MM - Call your local BRP dealership
529000002
Unavailable
24
Was 412500100 Rope-Starter
219704403
Unavailable
25
Starter Grip
529000060
Unavailable
26
Spacing Tool
520001142
Unavailable
27
WRENCH SUSPENSION - Call your local BRP dealership
520000988
Unavailable
28
Wrench
34017
Unavailable
29
Tool Kit Rack
520000894
Unavailable
30
Latch
520000528
Unavailable
31
Hitch Ass'y | Includes 3600 to 3600f
520001774
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Pin
41012
Unavailable
36
Hair pin
41029
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Avex Rivet
390909100
Unavailable
39
Plate
520000727
Unavailable
40
Carriage Bolt, M8 X 25 | XXC
207782544
Unavailable
41
Bolt Carriage M8 X 40
207784044
Unavailable
42
Hex. Flange Elastic Nut M8
233281414
Unavailable
