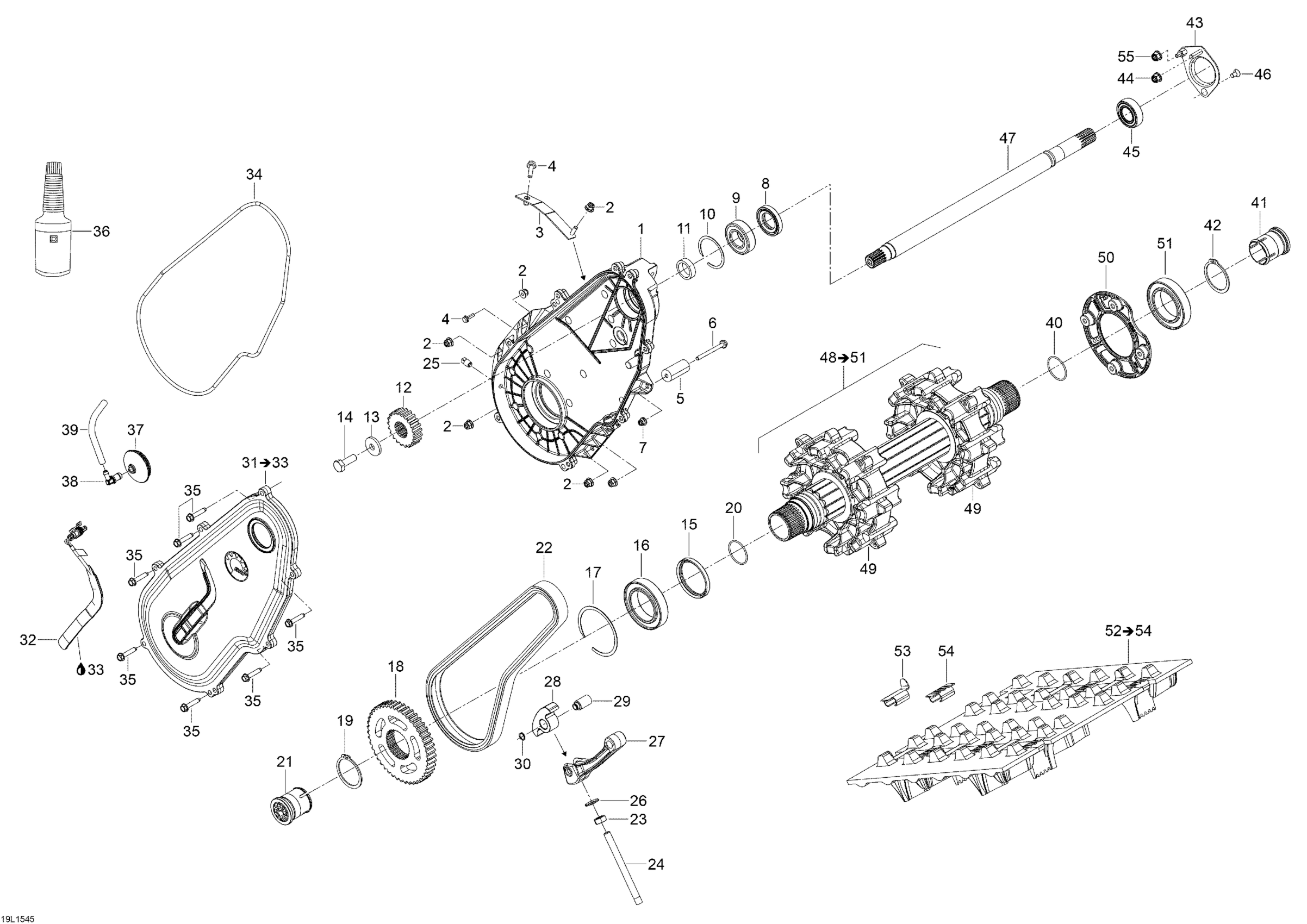

Ski-Doo Tundra WT 550 RER, 2015 Drive System _19M1545 Diagram

#

Description
Price

1

Chaincase

504153181

$314.90

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

CHAINCASE COUNTER PLATE - Call your local BRP dealership | Includes 3 to 3,2

518328101

Unavailable

4

Hex. Flange Screw M6 x 20

207662056

$0.96

5

Sleeve

518327966

$5.19

6

Hex. Flange Screw M6 X 70

207667056

$4.15

7

Elastic Flange Nut M6 X 1.0

233261416

$2.00

8

Oil Seal

293200168

$13.24

9

Ball Bearing

293350115

$10.82

10

Circlip

504152576

$8.45

11

Shim

504152628

$8.15

12

Sprocket, 19 Teeth

504153783

$105.94

13

Spring Washer M10

504152784

$6.07

14

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

15

Oil Seal

293200159

$12.73

16

Ball Bearing

293350059

$29.82

17

Circlip

504152582

$8.45

18

Kit Sprocket This part replaces 504152581.

861805539

$145.49

19

Circlip

504152572

$6.07

20

O-Ring

293300122

$2.00

21

Magnetic Cap

504152619

$22.36

22

Drive Chain, 104 Links

504152629

$168.63

23

Hex. Nut M10 X 1.5

232006414

$1.27

24

Adjustment Screw

504152602

$9.33

25

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.69

26

Seal Ring

293200128

Unavailable

27

Tensioner chain

504153429

$13.36

28

Slider Chain

504152739

$65.64

29

Tensioner Axle

504152841

$14.21

30

Circlip

504152282

$3.01

31

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$314.90

32

Rotation Sensor

504152896

$34.30

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Tight Seal

293300130

$7.09

35

Hex. HD Forming Screw M6 x 30

250000811

$2.00

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Cap

504152860

$18.63

38

Male Connector

414580700

$3.88

39

Polyurethane Hose 10000Mm Long

219704410

$52.96

40

O-Ring

293300122

$2.00

41

Magnetic Cap

504152619

$22.36

42

Circlip

504152572

$6.07

43

Bearing Housing

504153187

$27.58

44

Hex. Flange Elastic Nut M8

233281414

$1.31

45

Ball Bearing

293350074

$38.49

46

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

47

Counter Shaft

504153212

$233.55

48

Drive Axle Ass'y | Includes 48 To 51

504153240

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Retaining Ring

504153886

$17.88

51

Ball Bearing

293350059

$29.82

52

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1,249.99

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
