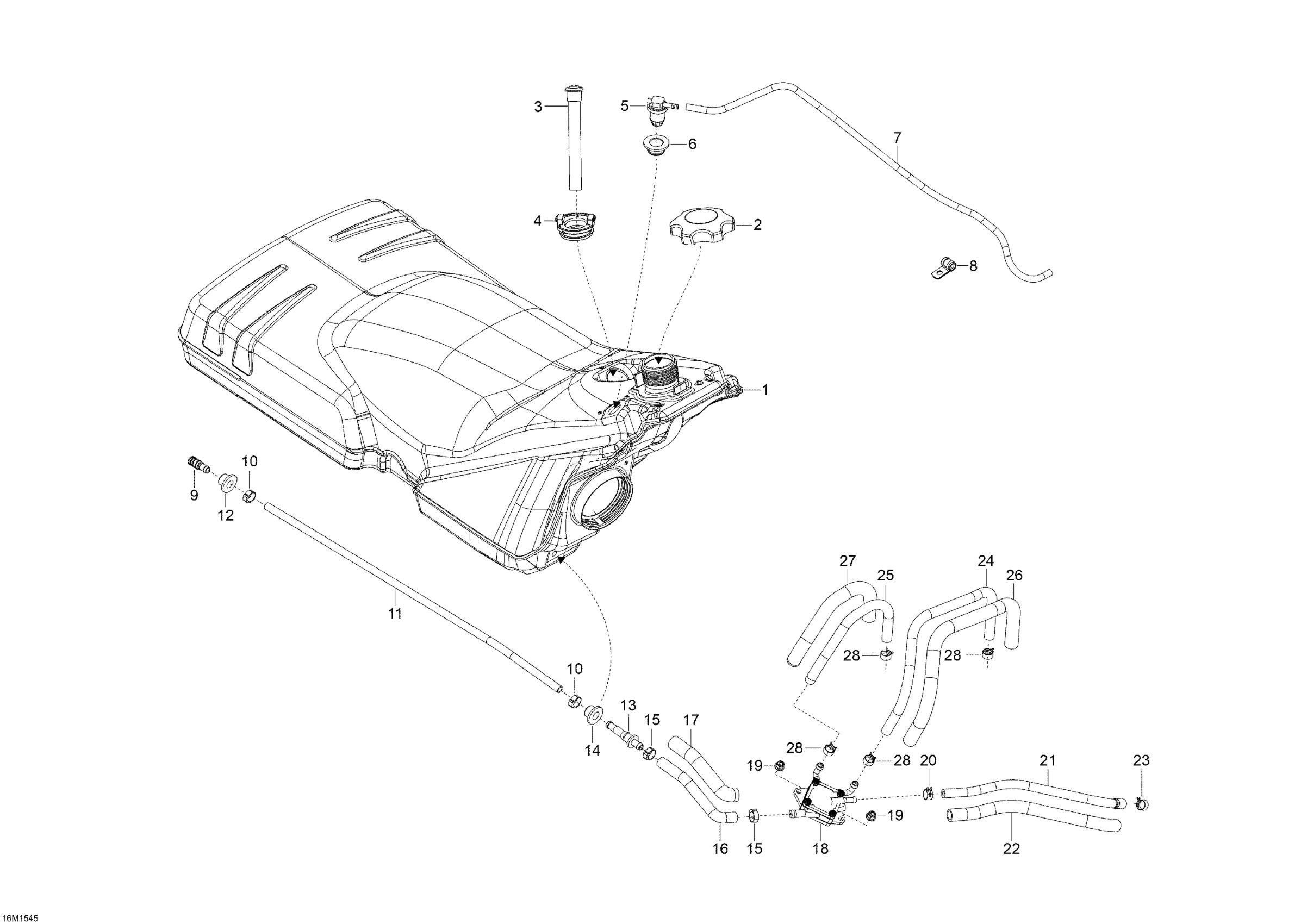

Ski-Doo Tundra WT 550 RER, 2015 Fuel System _16M1545 Diagram
#
Description
Price
1
Fuel Tank
513033632
Unavailable
3
Fuel Sensor
513033538
Unavailable
7
Polyurethane Hose 10000Mm Long
219704410
Unavailable
8
Clamp
293650256
Unavailable
10
Norma Spring Clamp
513033010
Unavailable
11
Polyurethane Hose 1000Mm Long
219704391
Unavailable
12
Grommet
280000674
Unavailable
13
Male Connector
414872700
Unavailable
14
Grommet
513033435
Unavailable
15
Crimp Clamp
293650053
Unavailable
16
Molded Hose - 3/8 I.D.
513033626
Unavailable
17
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
18
Fuel Pump
403901813
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
21
Formed Hose
513033553
Unavailable
22
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
23
Universal Spring Clamp
513033029
Unavailable
24
Hose 3000Mm Long
219704612
Unavailable
25
Hose 3000Mm Long
219704612
Unavailable
26
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
27
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
28
Universal Spring Clamp
513033029
Unavailable
