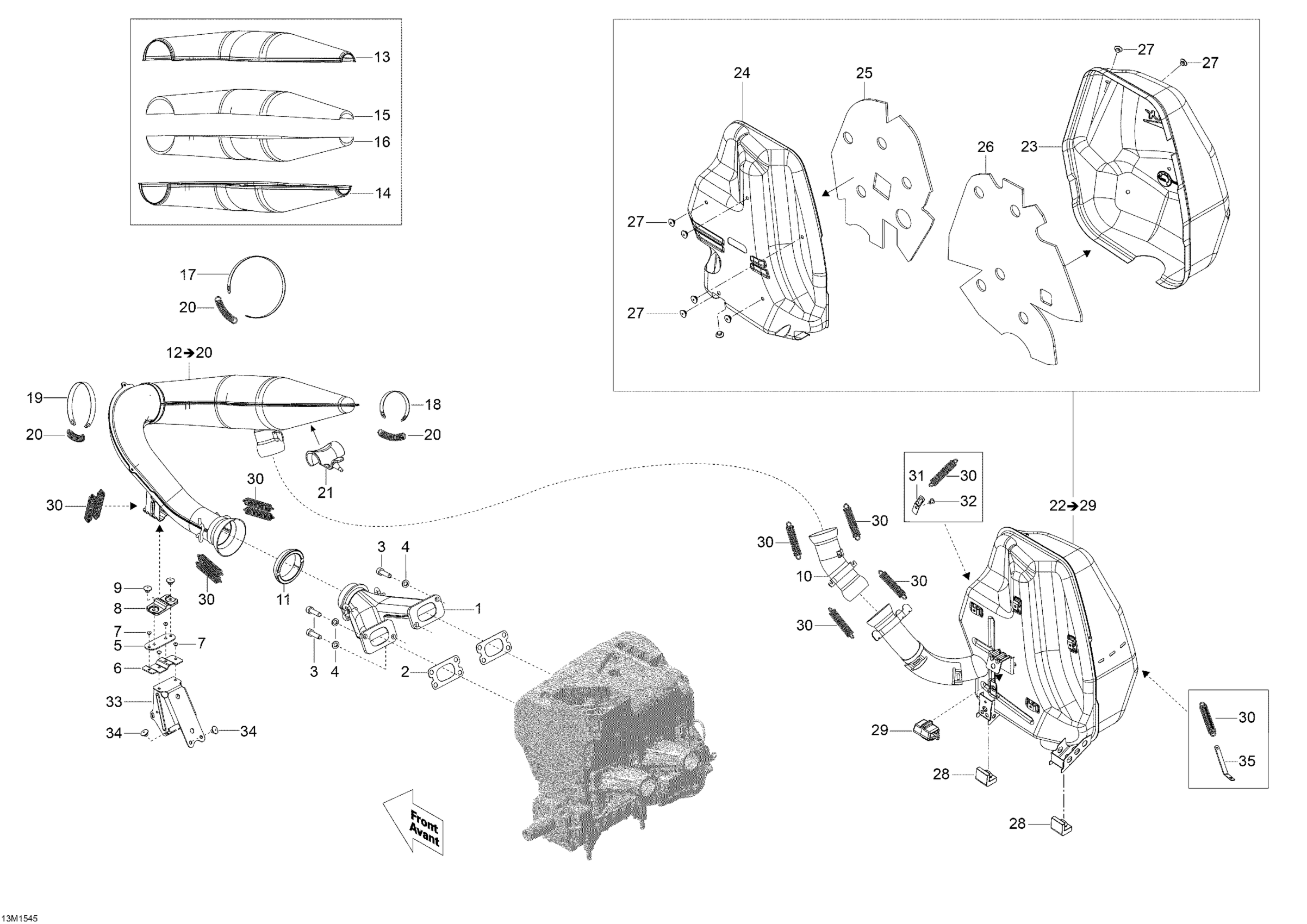

Ski-Doo Tundra WT 550 RER, 2015 Exhaust System _13M1545 Diagram

#

Description
Price

1

Exhaust Manifold

420673065

$319.20

2

Gasket 1.0 mm

420831849

$7.92

3

Socket Head Screw M8 X 30

205083044

$0.92

4

Washer

250200111

$1.74

5

Support Plate

514055275

$5.35

6

Support

514055270

$10.80

7

Avex Rivet

390909200

$0.29

8

Bumper

514054617

$14.65

9

Pop Rivet 3/16"

293150103

$0.54

10

Exhaust Elbow

514054411

$77.66

11

Exhaust Gasket

514053644

$25.35

12

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

13

Rear Upper Half-enveloppe

514054208

$50.74

14

Rear Lower Half Envellope

514054210

$54.58

15

Upper Insulating Wool

514054244

$12.65

16

Lower Insulating Wool

514054243

$12.65

17

Retaining Strap

514053502

$8.35

18

Retaining Strap

514053492

$10.55

19

Retaining Strap

514053498

$8.35

20

Spring

514053643

$6.20

21

Bumper

514054513

$19.20

22

Muffler Ass'y | Includes 400 to 400g

514055055

$738.43

23

RH Deflector

514054984

$54.58

24

LH DEFLECTOR - Call your local BRP dealership

514055069

Unavailable

25

LH Insulated Wool

514054421

$18.43

26

RH Insulating Wool

514054711

$18.43

27

Pop Rivet 3/16”

390910000

$0.48

28

Lower Stopper

514054529

$17.66

29

Upper Stopper

514054606

$14.92

30

Spring

415107100

$6.20

31

Spring Bracket

514054522

$6.28

32

Pop Rivet 3/16"

390402200

$0.26

33

Exhaust Muffler Support

514054767

$18.43

34

Hemlock Rivet, 6.5 mm

293150096

$3.17

35

Spring Bracket

514054846

$4.34
