Partiron

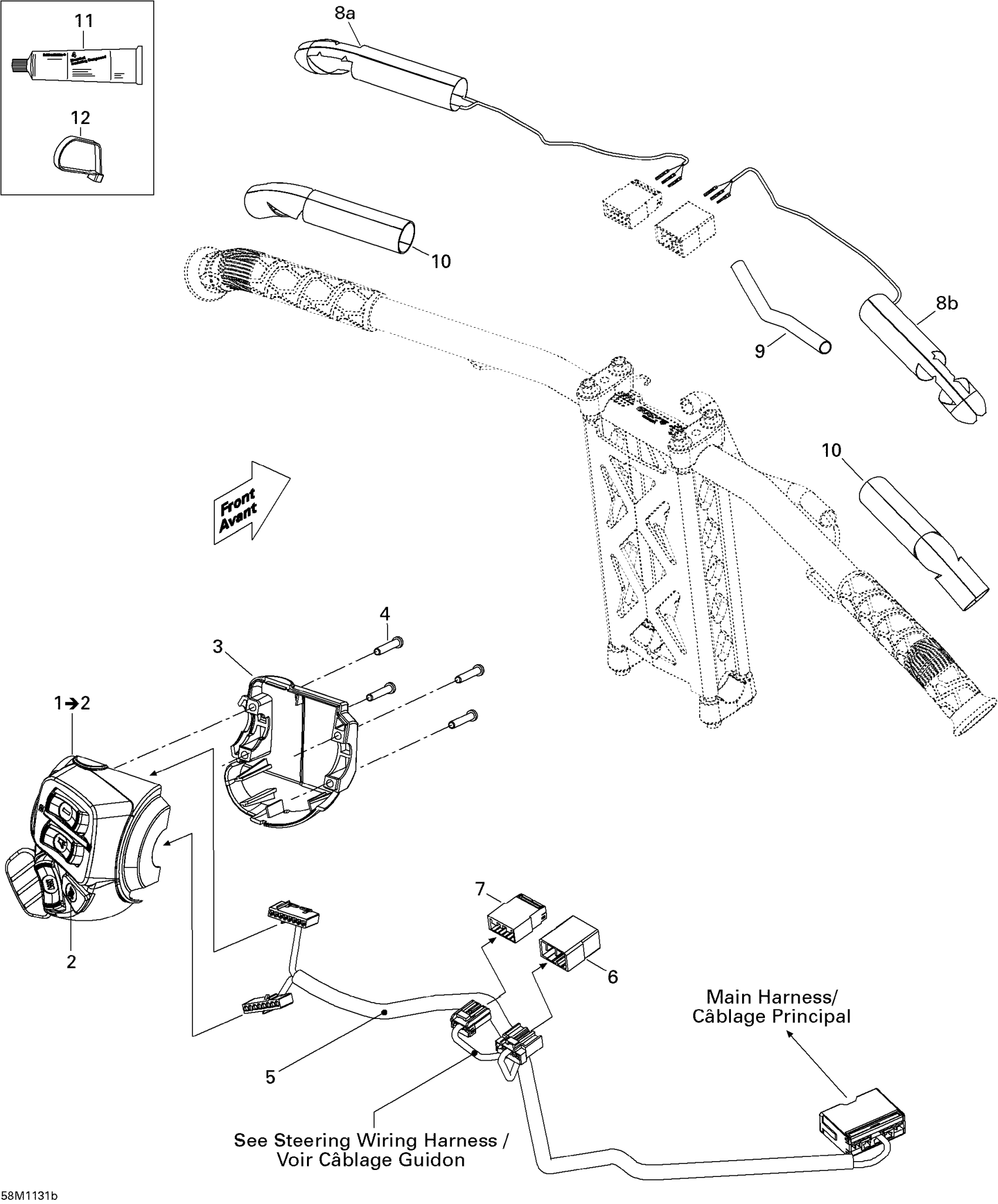

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 Electrical Accessories, Steering Sport, LT Diagram

#

Description
Price

1

LH Housing

515177021

$214.58

2

Start/RER Button

515176088

$18.43

3

Switch Housing Plate

515175926

$17.66

4

Torx Screw #8-18

250000263

$1.02

5

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$106.89

6

Male Terminal Housing, 8 Circuits

515175817

$8.57

7

Male Terminal Housing, 6 Circuits

515175662

$8.57

8a

Heating Element 20W

506152484

Unavailable

8b

Heating Element 20W

506152516

Unavailable

9

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

10

Insulant

506152360

$5.89

11

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

12

Tie-Rap 180 mm

414115200

$0.09

12

Tie Wrap 142 mm

293750002

$0.88

12

Tie Wrap 368 mm

293750008

$0.85

12

Tie Wrap 94 mm | 4X4

293750001

$0.83

12

Tie-Rap 173 mm

293750009

$0.85
