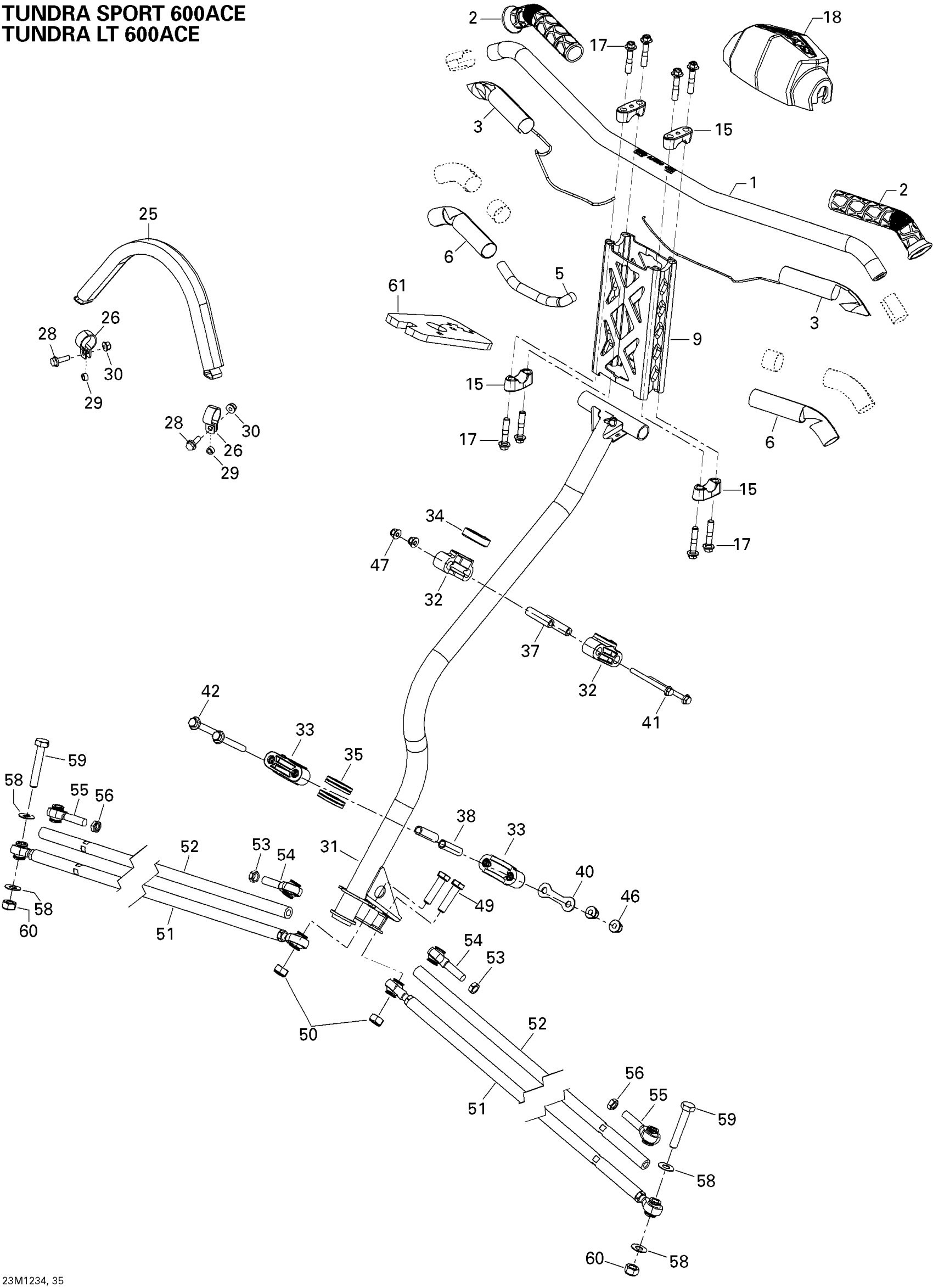

Ski-Doo Tundra Sport 600ACE LFF, 2012 Steering Diagram
#
Description
Price
1
BLACK HANDLE BAR - Call your local BRP dealership
506152710
Unavailable
3
Heating Element 20W
506152484
Unavailable
5
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
219704427
Unavailable
6
Insulant
506152360
Unavailable
9
Extension Kit ( 205mm ) This part replaces 860200269.
860200821
Unavailable
17
Hex. Flange Screw M8 X 40
250000352
Unavailable
18
Steering Pad
506152192
Unavailable
28
Hex. Flange Screw M6 X 20
207662084
Unavailable
35
Lower Vibration Ring
506152518
Unavailable
37
Housing Bushing
506152297
Unavailable
38
Lower Housing Bushing
506152388
Unavailable
40
Stopper Plate
506152389
Unavailable
42
Hex. Flange Screw M8 x 65
207686534
Unavailable
46
Hex. Flange Elastic Nut M8
233281414
Unavailable
47
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
51
Not Available As Spare Part - Friction Washer
Unavailable
54
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
56
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
59
Hex. Screw M10 X 45
207004544
Unavailable
