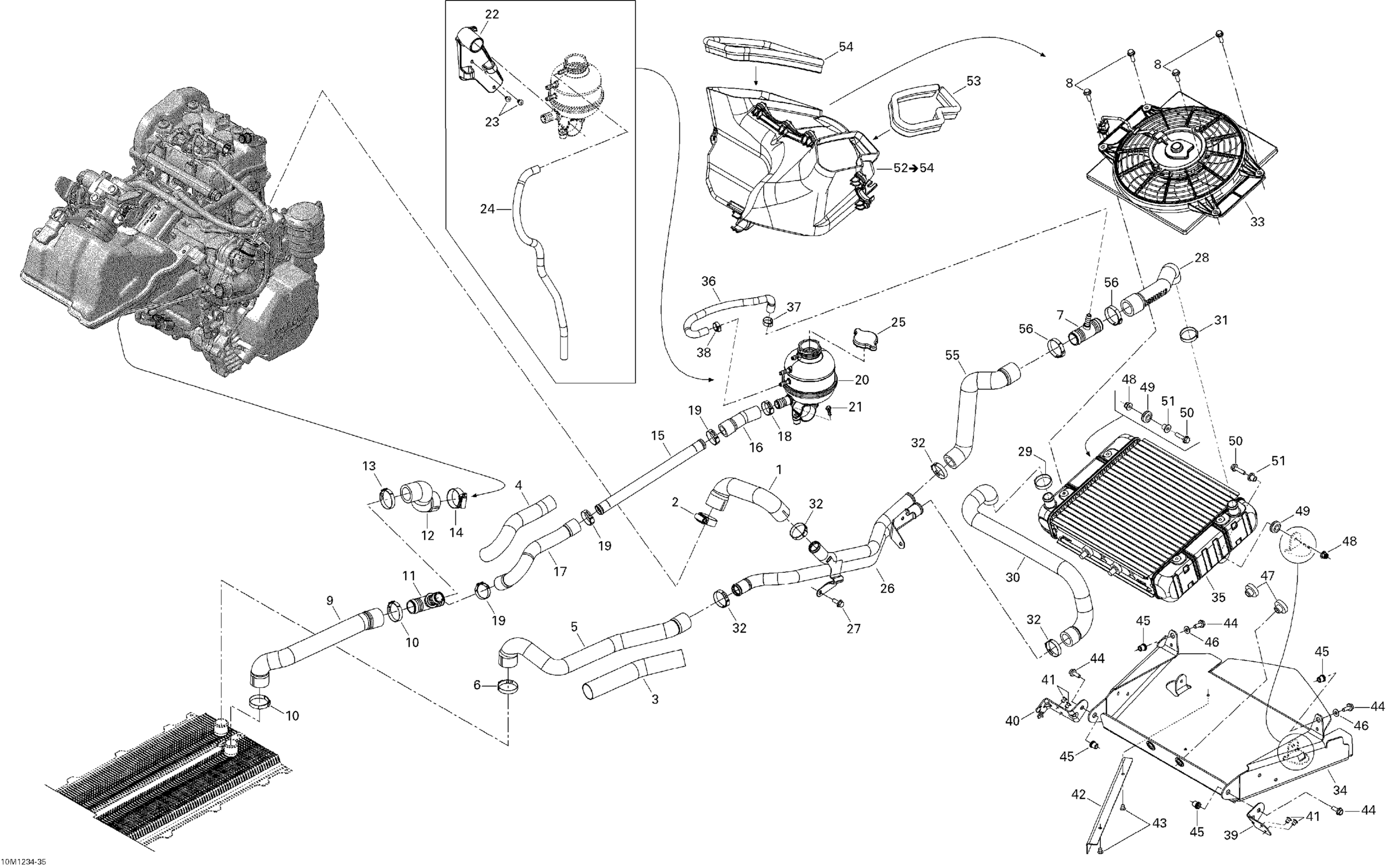

Ski-Doo Tundra Sport 600ACE LFF, 2012 Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000932

$17.66

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

4

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

5

Hose

509000634

$23.82

6

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

7

T-Fitting

509000510

$11.52

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

9

Radiator Return Hose

509001062

$14.54

10

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

11

T-Fitting

509000372

$7.87

12

Engine Inlet Hose | Engine 600 ACE

509000565

$13.58

13

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

14

Aba Gear Clamp, 26-38 MM

509000443

$5.68

15

PIPE - Call your local BRP dealership

509000644

Unavailable

16

HOSE - Call your local BRP dealership

509000698

Unavailable

17

HOSE - Call your local BRP dealership

509000563

Unavailable

18

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

19

Crimp Clamp

293650099

$4.60

20

Coolant Tank

509000368

$86.89

21

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

22

Front Bracket

509000694

$9.31

23

Avex Rivet

390909100

$0.29

24

Was 415129508 Bleeder Hose

219704416

$11.83

25

Radiator Pressure Cap

509000180

$11.69

26

Water Pipe

509000800

$105.35

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

28

Radiator Hose

509000618

$13.60

29

Oetiker Gear Clamp

293650165

$4.32

30

Radiator Hose

509000560

$18.43

31

Oetiker Gear Clamp

293650165

$4.32

32

Clamp

509000735

$5.86

33

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$225.35

34

RADIATOR SUPPORT - Call your local BRP dealership | Includes 53 To 53a

509000721

Unavailable

35

RADIATOR - Call your local BRP dealership

509000691

Unavailable

36

Breather Hose

509000635

Unavailable

37

Crimp Clamp, 15.3-706R

293650047

$2.64

38

Oetiker Gear Clamp

293650025

$2.46

39

Support

509000715

$10.52

40

Support

509000772

$17.66

41

Avex Rivet

390909200

$0.29

42

DEFLECTOR - Call your local BRP dealership

509000892

Unavailable

43

Avex Rivet

390909200

$0.29

44

Hex. Flange Screw M6 X 16

207661654

$1.74

45

Insert

293450275

$9.89

46

Flat Washer

224061121

$0.44

47

Grommet

709200285

$7.09

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

49

Grommet

709000582

$4.38

50

Hex. Flange Screw M6 X 25

207662544

$0.53

51

Bushing

293900100

$6.31

52

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

Unavailable

53

Neoprene Seal 3000Mm Long

219704371

$45.47

54

Neoprene Seal 3000Mm Long

219704371

$45.47

55

Radiator Hose

509000617

$13.60

56

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable
