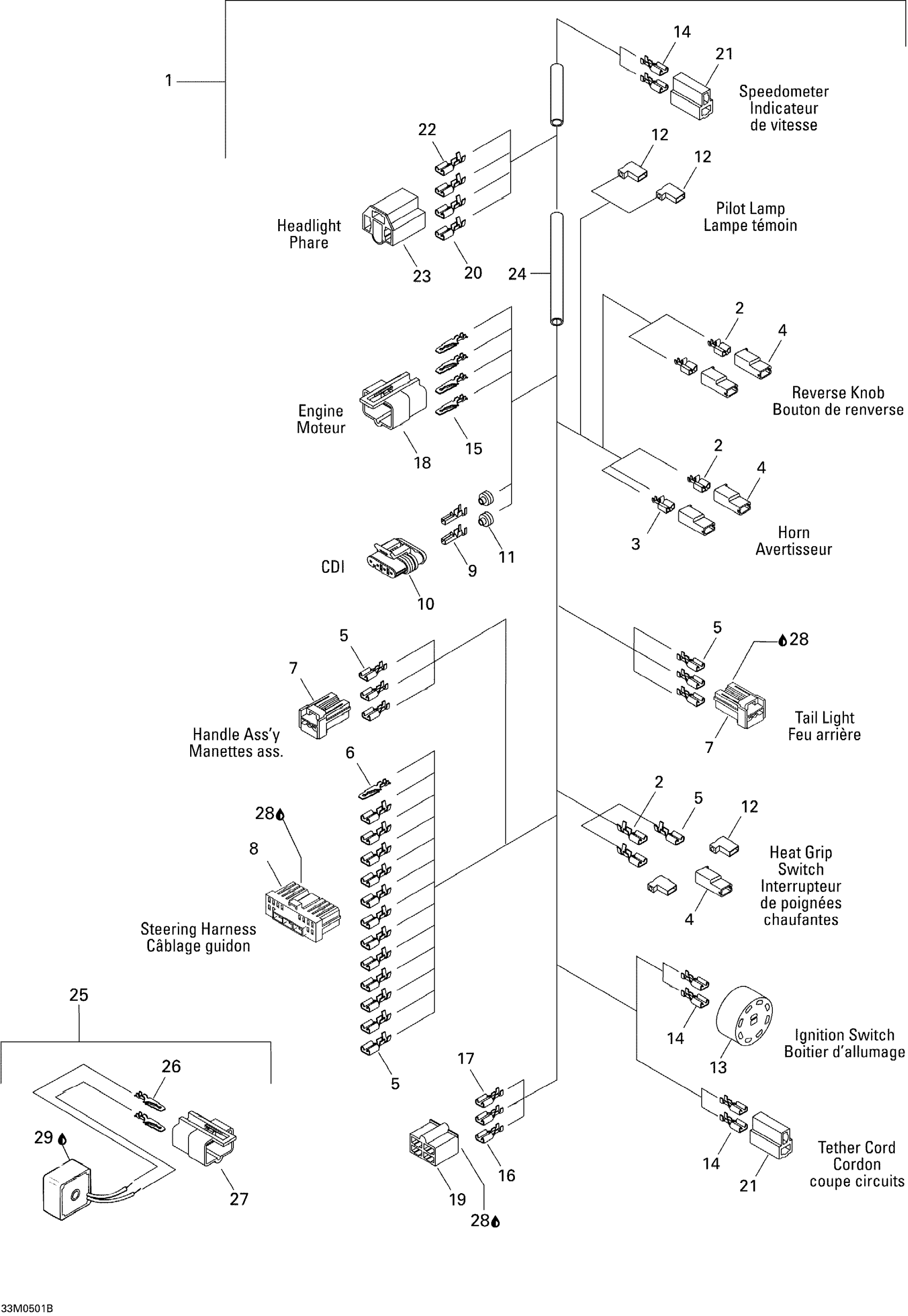

Ski-Doo Tundra R, 2005 Frame Harness Diagram

#

Description
Price

1

Frame Harness Ass'y | See 33M0501B

515175835

Unavailable

2

Female Terminal

409010100

$5.46

3

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

4

Female Terminal Housing, 1 Circuit

409010400

$7.48

5

Female Terminal

515175231

$4.12

6

Female Terminal

515175282

$6.43

7

Female Housing, 3 Circuits

515175495

$15.35

8

Female Terminal Housing, 13 Circuits

515175350

$12.88

9

Female Terminal

278001014

$2.72

10

Female Housing, 4 Circuits

409209700

$12.97

11

Wire Seal

278001013

$2.72

12

Female Terminal

409010300

$4.12

13

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

14

Female Terminal

561503100

Unavailable

15

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

16

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

17

FEMALE TERMINAL - Call your local BRP dealership

515175313

Unavailable

18

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

19

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

20

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

21

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

23

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

24

Was 409901700 Tubing (9 mm)

219704399

$79.97

25

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

26

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

27

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

28

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

29

Grease Tube Lmz, 400 G

413707500

Unavailable
