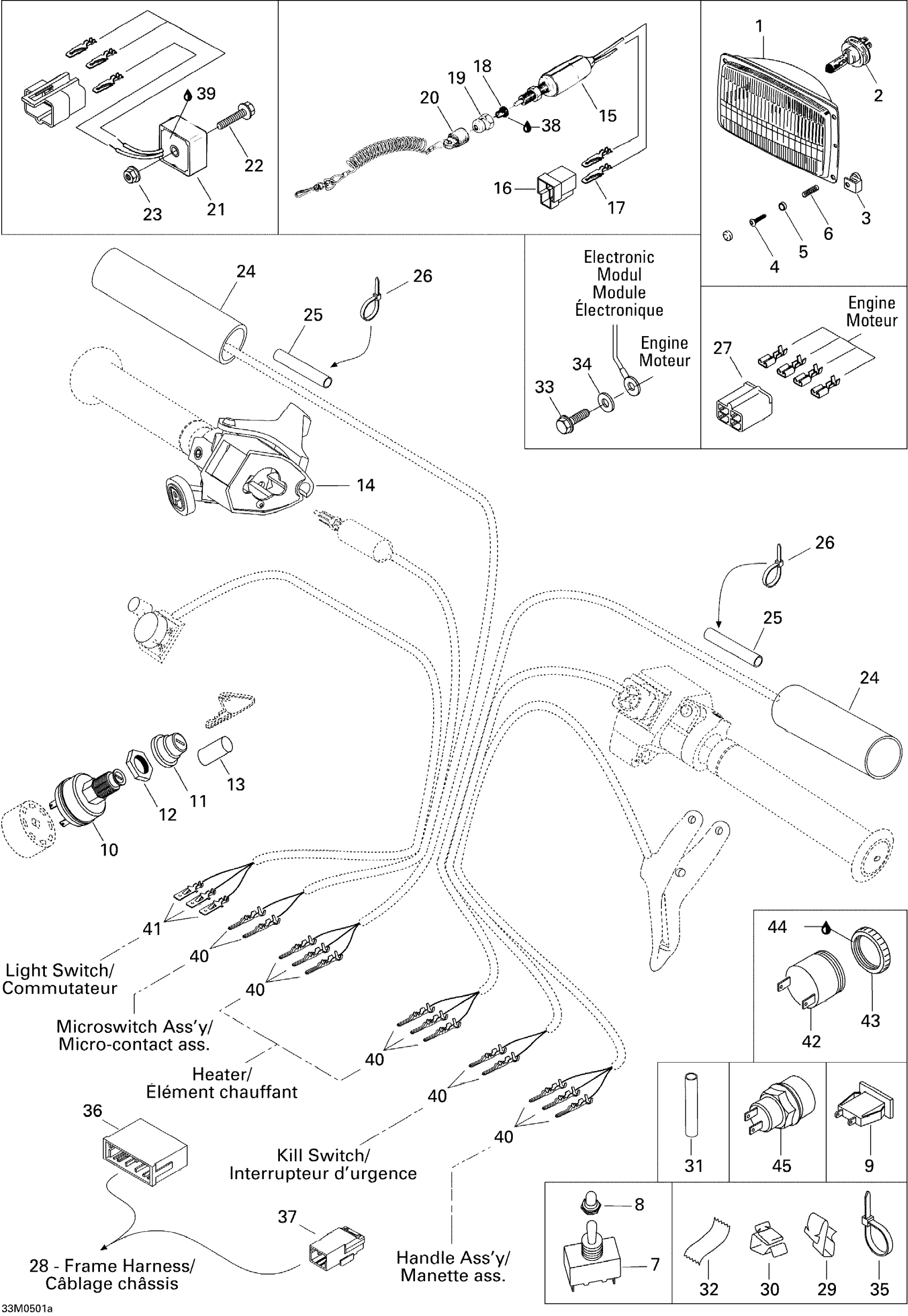

Ski-Doo Tundra R, 2005 Electrical System Diagram

#

Description
Price

1

Halogene Headlamp Ass'y

410606800

Unavailable

2

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

3

Protector Nut

572378700

Unavailable

4

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

5

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

6

SPRING - Call your local BRP dealership

517166000

Unavailable

7

Switch (Heating Grip) | FREERIDE

410107300

$34.58

8

Switch Cover

515175281

$15.03

9

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

10

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

12

FACE NUT - Call your local BRP dealership

410112100

Unavailable

11

Switch Boot

570013700

$10.82

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Brake Switch

515175653

$15.57

16

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

17

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

18

Plunger Cap

570151100

$10.14

19

Switch Nut

515145900

$10.83

20

Cap Ass'y

515178283

$37.66

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Hex. Flange Screw M6 X 35

207063544

$1.35

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

24

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

25

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

26

Tie Wrap 94 mm | 4X4

293750001

$0.83

27

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

28

Frame Harness Ass'y | See 33M0501B

515175835

Unavailable

29

Clip

414095100

Unavailable

30

Clip

414227300

$1.45

31

Tubing 6 Mm 3000Mm Long

219704425

$13.14

32

Tape

293740005

Unavailable

33

Taptite Screw M5 X 16

420941928

Unavailable

34

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

35

Tie-Rap 180 mm

414115200

$0.09

36

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

37

Male Housing, 3 Circuits

515175494

$15.35

38

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

39

Grease Tube Lmz, 400 G

413707500

Unavailable

40

Male Terminal

515175232

$1.49

41

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

42

HORN - Call your local BRP dealership

515176035

Unavailable

43

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

44

Silicone Sealant 51388, 300 ml

296000309

$35.72

45

Push Button

415130372

$124.99
