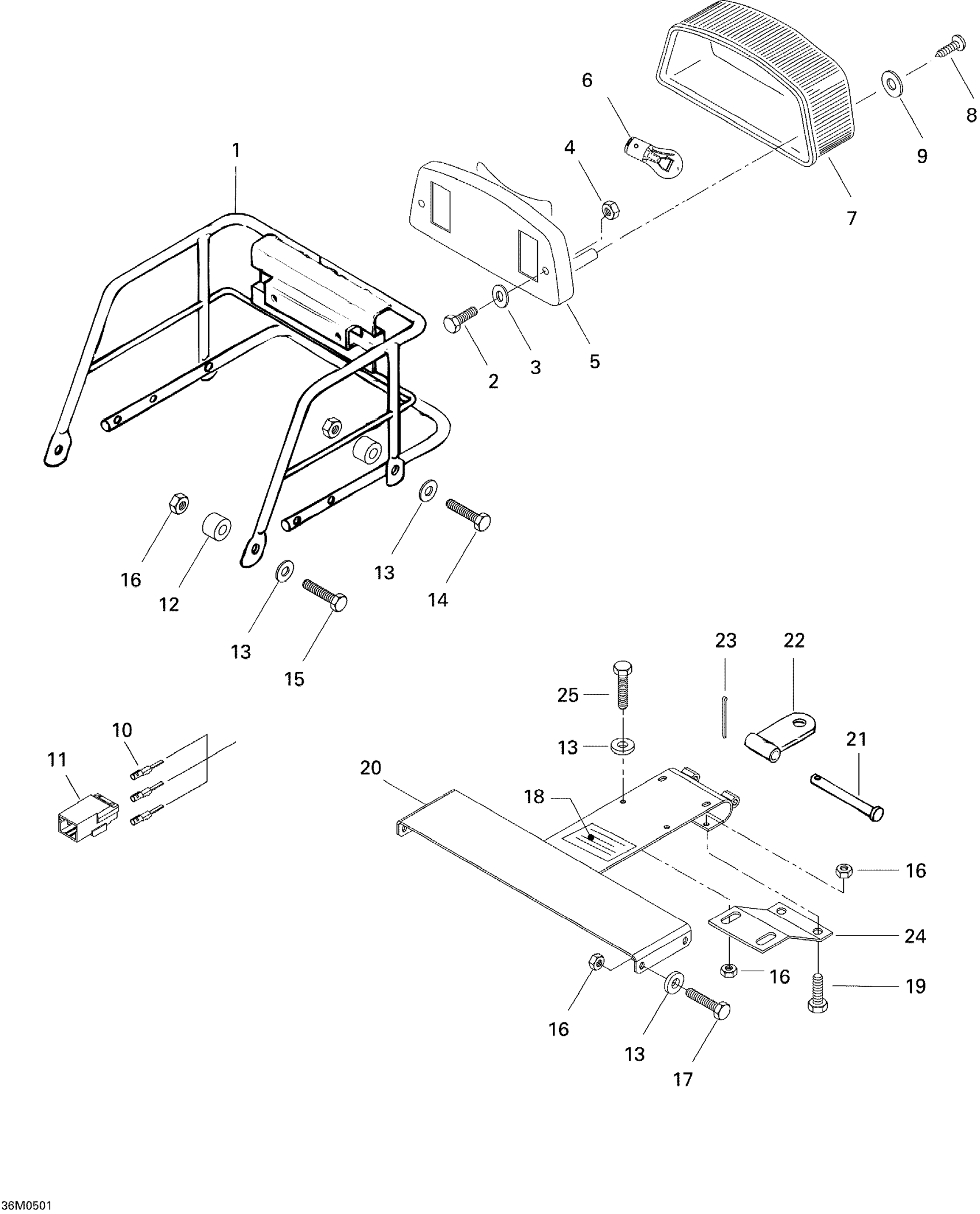

Ski-Doo Tundra R, 2005 Luggage Rack Diagram

#

Description
Price

1

Paint Rack

517191500

Unavailable

2

Hex. Screw M5 X 30

207053044

$0.98

3

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

4

Hex. Flange Elastic Nut M5

233251414

$1.66

5

LAMP HOUSING - Call your local BRP dealership

515175397

$44.99

6

Bulb

520000758

$7.49

7

Lens

414513700

Unavailable

8

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

9

Washer - Call your local BRP dealership

414516400

Unavailable

10

Male Terminal

515175232

$1.49

11

Male Housing, 3 Circuits

515175494

$15.35

12

Spacer

517185600

Unavailable

13

Flat Washer

224061121

$0.44

14

Hex. Screw M6 X 60

207066044

$0.56

15

Hex. Flange Screw M6 X 35

207063544

$1.35

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Hex. Screw M6 X 40

207064044

$1.48

18

Security Label, Hitch

516001243

Unavailable

19

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

20

Paint Hitch

517200600

Unavailable

21

CLEVIS PIN - Call your local BRP dealership

505001700

$4.25

22

Hitch Plate Welded

511000521

$14.54

23

Cotter Pin

371800200

$0.51

24

Paint Reinforcement

517217800

Unavailable

25

Hex. Screw M6 X 25

207162544

$1.05
