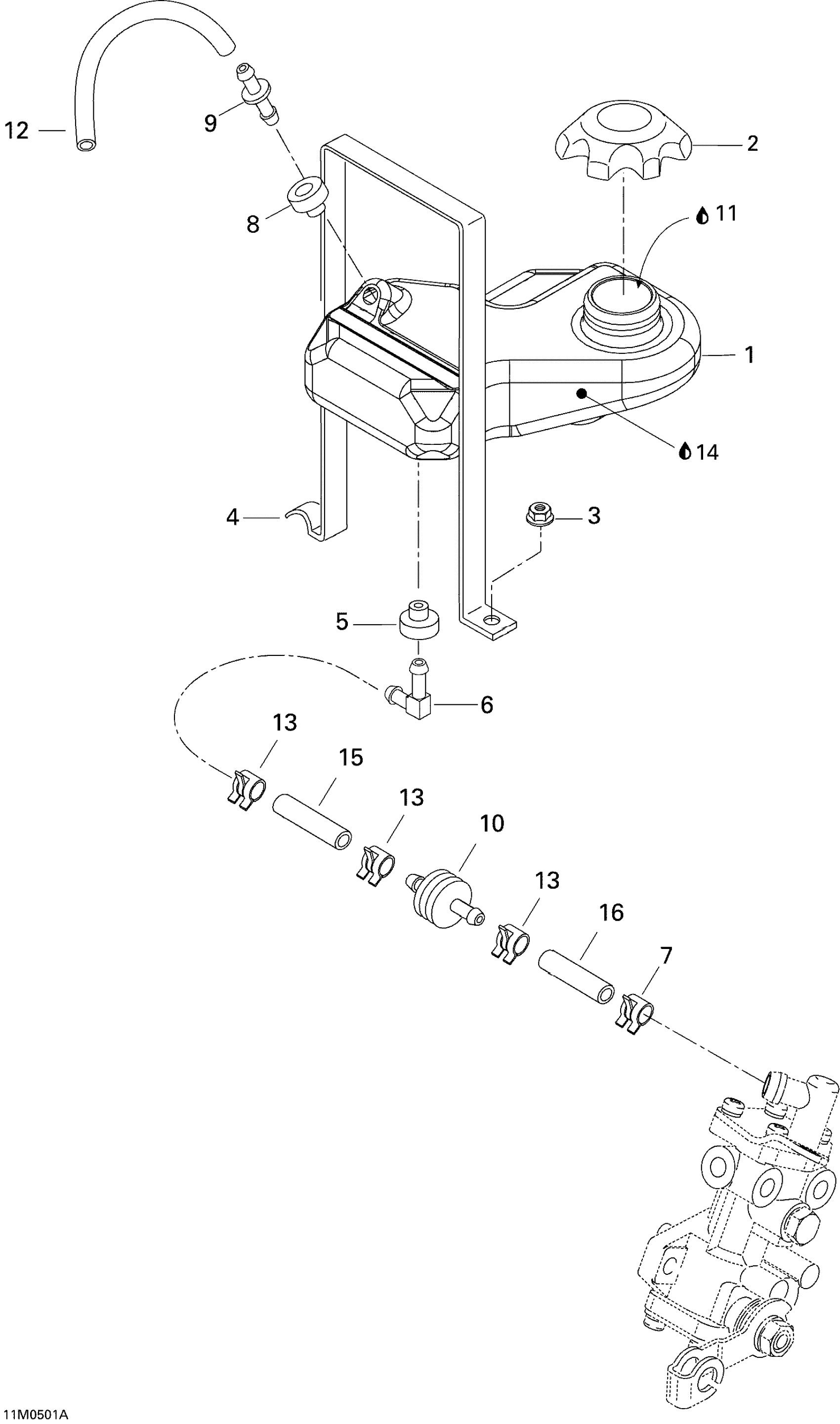

Ski-Doo Tundra R, 2005 Oil System Diagram

#

Description
Price

1

Oil Tank

519000046

Unavailable

2

Fuel Tank Cap

513033025

$22.36

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4

Retainer Strip

517263400

Unavailable

5

Grommet

709200285

$8.13

6

MALE CONNECTOR - Call your local BRP dealership

519000055

Unavailable

7

Universal Spring Clamp

513033029

$4.96

8

GROMMET - Call your local BRP dealership

570027700

Unavailable

9

Check Valve

275500398

$9.84

10

Filter

414536500

$3.73

11

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

13

Spring Clamp

414655700

$0.66

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

16

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable
