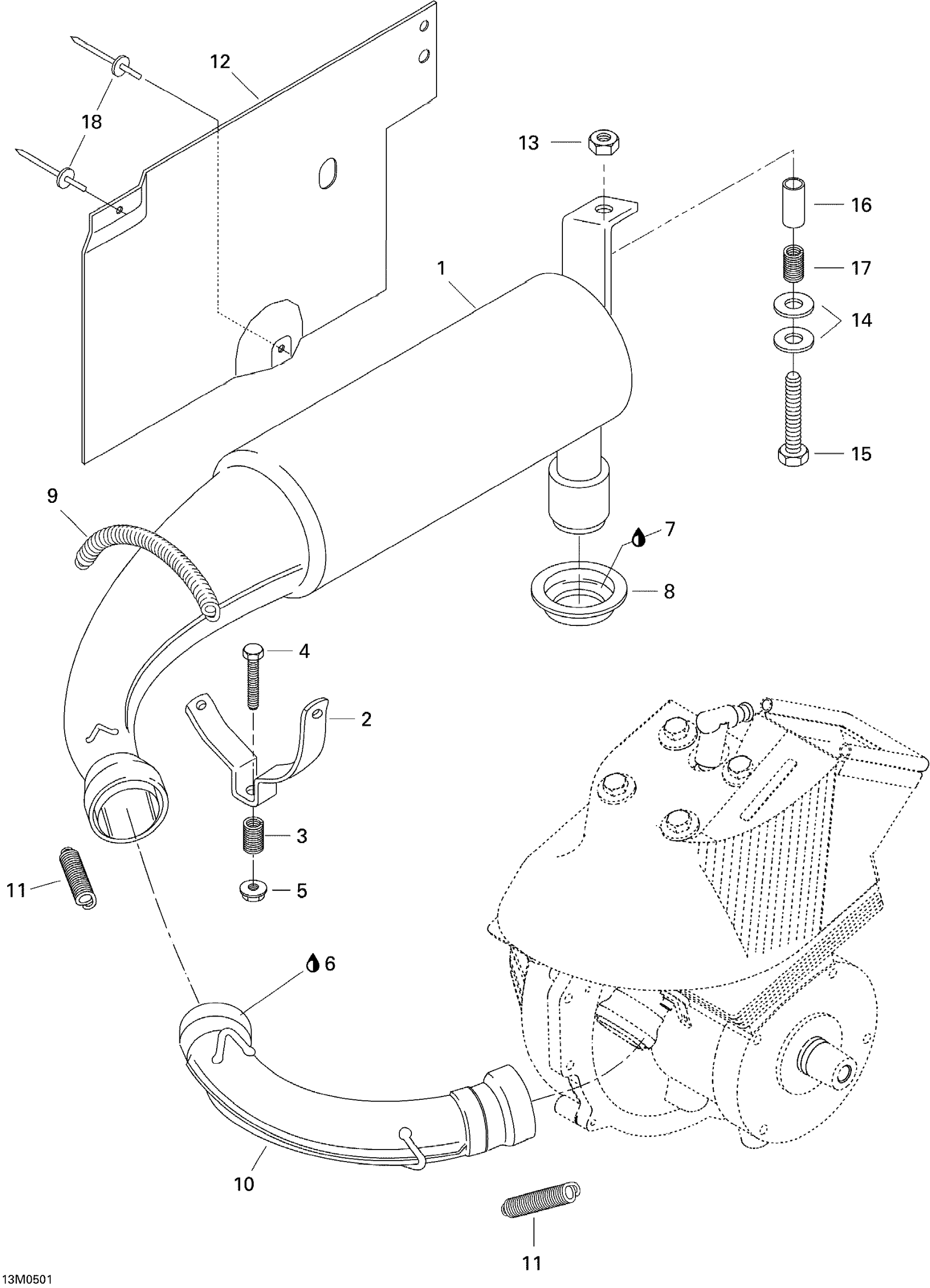

Ski-Doo Tundra R, 2005 Exhaust System Diagram

#

Description
Price

1

Paint Muffler

514053339

Unavailable

2

Muffler Support

514017900

Unavailable

3

SPRING - Call your local BRP dealership

414913700

$2.28

4

Hex. Screw M6 X 45

207064544

$2.02

5

Elastic Stop Nut M6

232561414

$1.55

6

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

7

Grease, Super Lube

293550030

$24.67

8

Exhaust Grommet

570141300

Unavailable

9

Spring

517268300

Unavailable

10

Welded Exhaust Elbow

514050300

Unavailable

11

SPRING - Call your local BRP dealership

517182100

$10.26

12

Heat Shield

517299300

Unavailable

13

Hex. Elastic Stop Nut M8

232581414

$0.47

14

Flat Washer 8 mm

234082410

$1.11

15

Hex. Screw M8 X 50

207085044

$1.25

16

Guide

514035800

Unavailable

17

SPRING - Call your local BRP dealership

414913700

$2.28

18

Rivet 3/16"

293150102

$0.71
