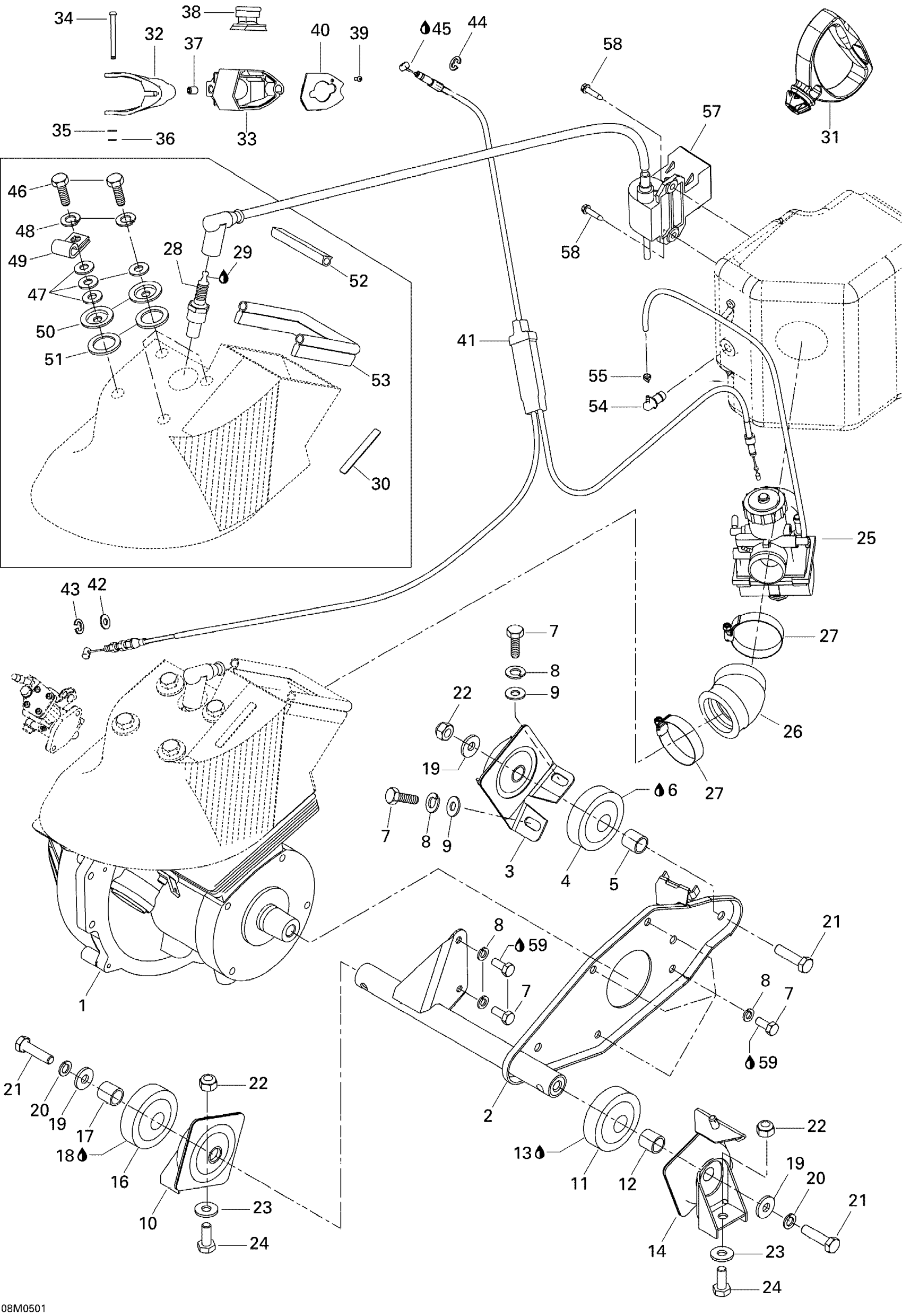

Ski-Doo Tundra R, 2005 Engine And Engine Support Diagram

#

Description
Price

1

Engine 277 Ass'y

400206003

Unavailable

2

Engine Support Paint

512059034

Unavailable

3

WELDED SUPPORT - Call your local BRP dealership

512050400

Unavailable

4

RUBBER MOUNT - Call your local BRP dealership | Includes item 4 and 5

570126800

Unavailable

5

BUSHING - Call your local BRP dealership

517167100

Unavailable

6

Grease, Super Lube

293550030

$24.67

7

Hex. Screw M8 X 20

207182044

$0.61

8

Lock Washer 8 mm

234181401

$0.89

9

FLAT WASHER - Call your local BRP dealership

224081201

$0.70

10

RH Welded Support

512048300

Unavailable

11

RUBBER MOUNT - Call your local BRP dealership | Includes item 4 and 5

570126800

Unavailable

12

BUSHING - Call your local BRP dealership

517167100

Unavailable

13

Grease, Super Lube

293550030

$24.67

14

LH Support

512048400

Unavailable

15

Clevis Pin

414822300

Unavailable

16

RUBBER MOUNT - Call your local BRP dealership | Includes item 4 and 5

570126800

Unavailable

17

BUSHING - Call your local BRP dealership

517167100

Unavailable

18

Grease, Super Lube

293550030

$24.67

19

Washer

506063100

Unavailable

20

Lock Washer M10

234101402

Unavailable

21

HEX. SCREW M10 X 40 - Call your local BRP dealership

207104044

$1.09

22

Elastic Locking Nut M10 X 1.5

233601416

$1.68

23

WASHER - Call your local BRP dealership

732900051

Unavailable

24

Hex. Screw M10 X 25

207102544

$1.11

25

Carburetor Vm-34

403138753

Unavailable

26

Rubber Flanged

570025400

$59.97

27

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

$7.66

28

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.03

29

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

30

Spark Plug Decal

516000986

Unavailable

31

Starter Grip

572084400

$14.54

32

Handle Ass'y

512060214

$117.66

33

Throttle Housing

512060603

$10.57

34

Lever Pin

414438700

$11.14

35

Flat Washer M5, Stainless

234051600

$0.64

36

Circlip | Model-RS

414439000

$4.14

37

Socket Set Screw M8 X 10

414440800

$4.00

38

Kill Switch

515175410

Unavailable

39

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

$1.32

40

Plate

512060390

$9.31

41

THROTTLE CABLE - Call your local BRP dealership

512059614

Unavailable

42

Flat Washer 8 mm, Nylon

234081100

$1.00

43

Circlip

414753500

$0.59

44

Circlip

293370020

Unavailable

45

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

46

Hex. Screw M8 X 20

207182044

$0.61

47

Flat Washer 8 mm

234081410

$0.69

48

Washer-Lock Din.128

420945832

$1.09

49

Open Clamp

414176000

$1.86

50

COWL COVER - Call your local BRP dealership

420827140

$7.43

51

RUBBER WASHER - Call your local BRP dealership

420960860

$1.58

52

Neoprene Seal 3000Mm Long

219704371

$45.47

53

Was 293200017 Neoprene Seal

219704365

$118.27

54

Male Connector

414814100

$2.18

55

Tie Wrap 94 mm | 4X4

293750001

$0.83

56

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

$1,896.12

57

Calibrated Module | Includes 52 to 55

512060006

$387.66

58

Screw-hex.taping 12

365901400

Unavailable

59

Loctite 243, 10 ml

293800060

$20.77
