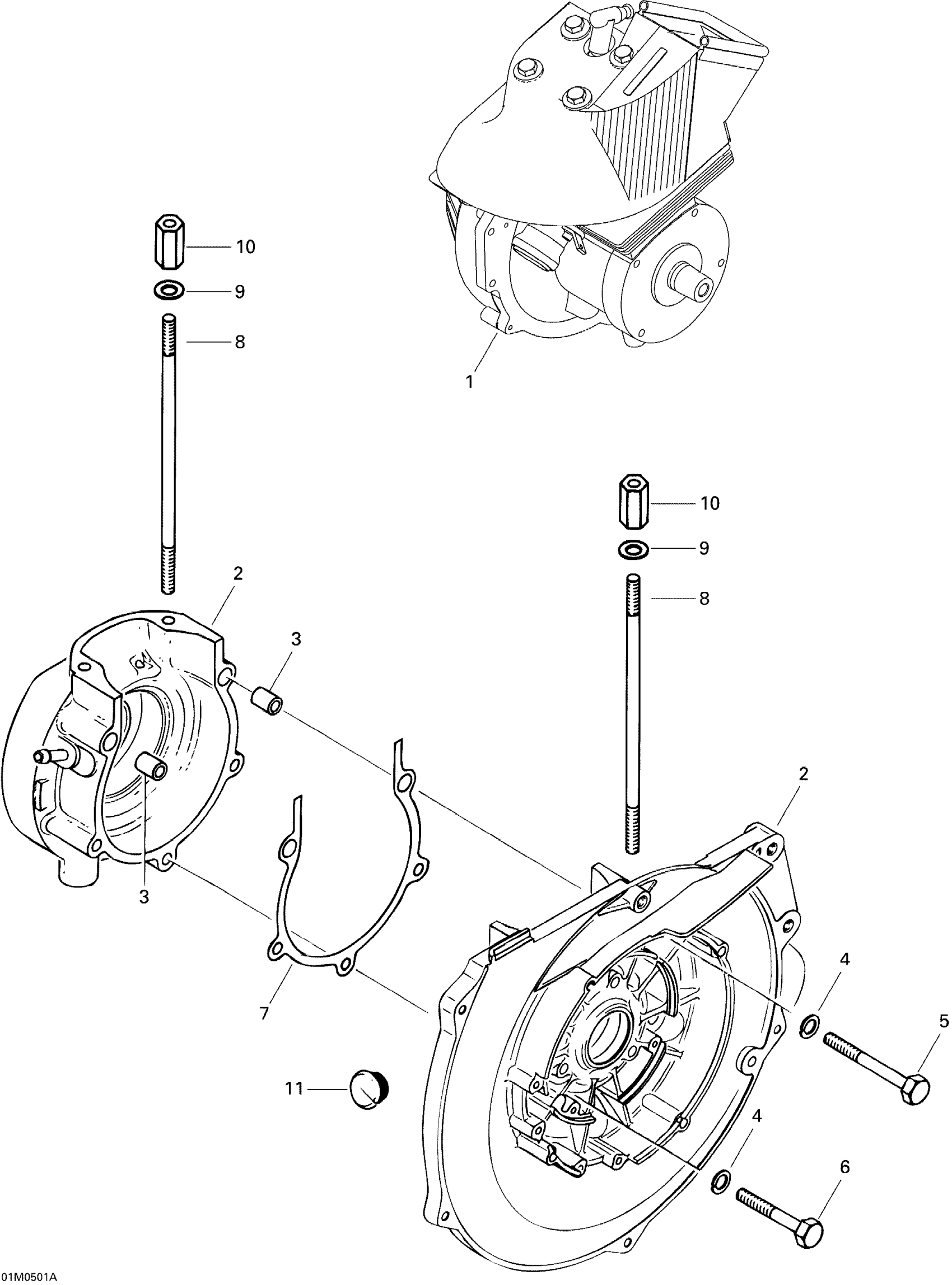

Ski-Doo Tundra R, 2005 Crankcase Diagram

#

Description

Price

1

Engine 277 Ass'y

400206003

Unavailable

2

Crankcase Ass'y | 1 to 5

420886709

$684.99

3

DOWEL - Call your local BRP dealership

420229150

$3.51

4

Washer-Lock Din.128

420945832

$1.09

5

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

$1.42

6

HEX. SCREW M8 X 55 - Call your local BRP dealership

207085596

$1.48

7

GASKET CRANKCASE - Call your local BRP dealership

420850060

$4.31

8

STUD M8 X 175 - Call your local BRP dealership

420840620

Unavailable

9

Flat Washer 8.4 mm

420250315

$1.09

10

DISTANCE NUT M8 X 27.5 - Call your local BRP dealership

420842010

$11.15

11

Cable Grommet

420860962

$11.52
