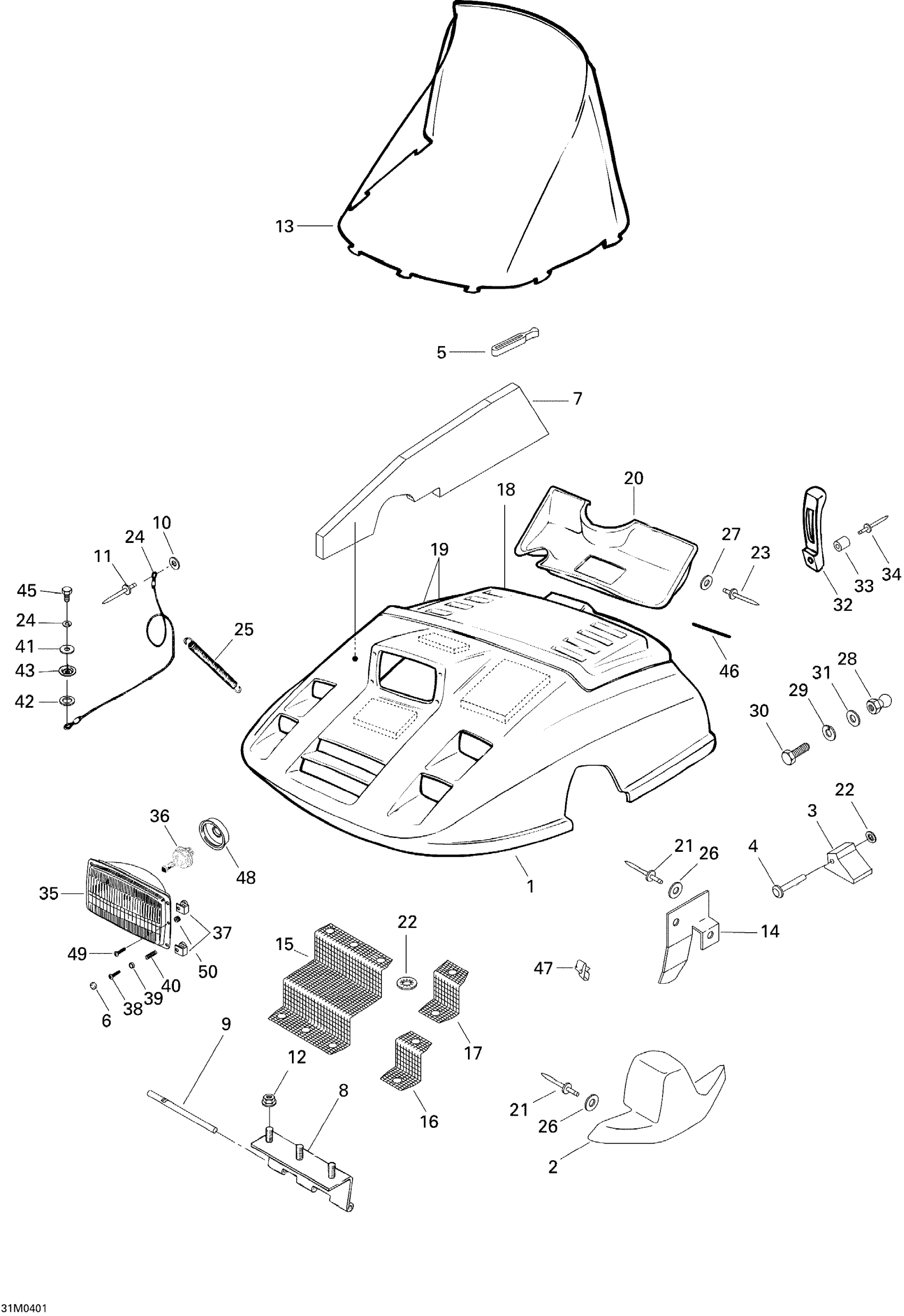

Ski-Doo Tundra R, 2004 Cab, Console Diagram

#

Description
Price

1

Yellow Hood | CB-190

572048102

Unavailable

1

Black Hood | CB-160

517302725

Unavailable

2

RH Hood Moulding

572038900

Unavailable

2

LH Hood Moulding

572038800

Unavailable

3

Hood Guide

570038700

Unavailable

4

Steel Rivet

390907000

Unavailable

5

Windshield Latch

570023800

Unavailable

6

Snap Cap (Yellow) | CB-190

414768500

Unavailable

6

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

7

RH Foam

517302204

Unavailable

7

LH Foam

414867100

Unavailable

8

Welded Hinge

517182200

Unavailable

9

Pivot Pin

517279800

Unavailable

10

Washer

517124300

Unavailable

11

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

13

Windshield

414829400

$119.97

14

RH Hood Guide

517261300

Unavailable

14

LH Hood Guide

517251500

Unavailable

15

Paint Central Front Grill

517251700

Unavailable

16

Front Grill

517251800

Unavailable

17

RH Up Side Grill

517270600

Unavailable

17

LH Up Side Grill

517270700

Unavailable

18

Side Foam

414829600

Unavailable

19

Front Foam

414829800

Unavailable

20

AIR DUCT - Call your local BRP dealership

414804000

Unavailable

21

Pop Rivet 3/16”

390407200

$0.66

22

Push Nut

389804300

$0.43

23

Pop Rivet 3/16" (Yellow) | CB-190

390400400

Unavailable

23

Pop Rivet 3/16" | CB-160

293150121

Unavailable

24

Retainer Cable

414581400

Unavailable

25

Spring

414763300

Unavailable

26

Flat Washer

517225900

$0.17

27

Flat Washer

517225900

$0.17

28

Knob

517245800

Unavailable

29

Lock Washer 5 mm | Europe

234151401

Unavailable

30

Hex. Screw M5 X 14

207151444

Unavailable

31

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

32

BLACK LATCH - Call your local BRP dealership

570025900

Unavailable

33

Bushing

293900112

Unavailable

34

Pop Rivet 3/16”

293150108

$1.23

35

Halogene Headlamp Ass'y

410606800

Unavailable

36

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

37

Protector Nut

572378700

Unavailable

38

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

39

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

40

SPRING - Call your local BRP dealership

517166000

Unavailable

41

Flat Washer 8 mm

234081410

Unavailable

42

RUBBER WASHER - Call your local BRP dealership

420960860

Unavailable

43

COWL COVER - Call your local BRP dealership

420827140

Unavailable

44

Washer-Lock Din.128

420945832

Unavailable

45

Hex. Screw M8 X 25

207182544

Unavailable

46

Was 293200017 Neoprene Seal

219704365

Unavailable

47

Clip

414095100

Unavailable

48

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

49

Slotted Screw

410603300

Unavailable

50

Grommet

410604400

Unavailable
