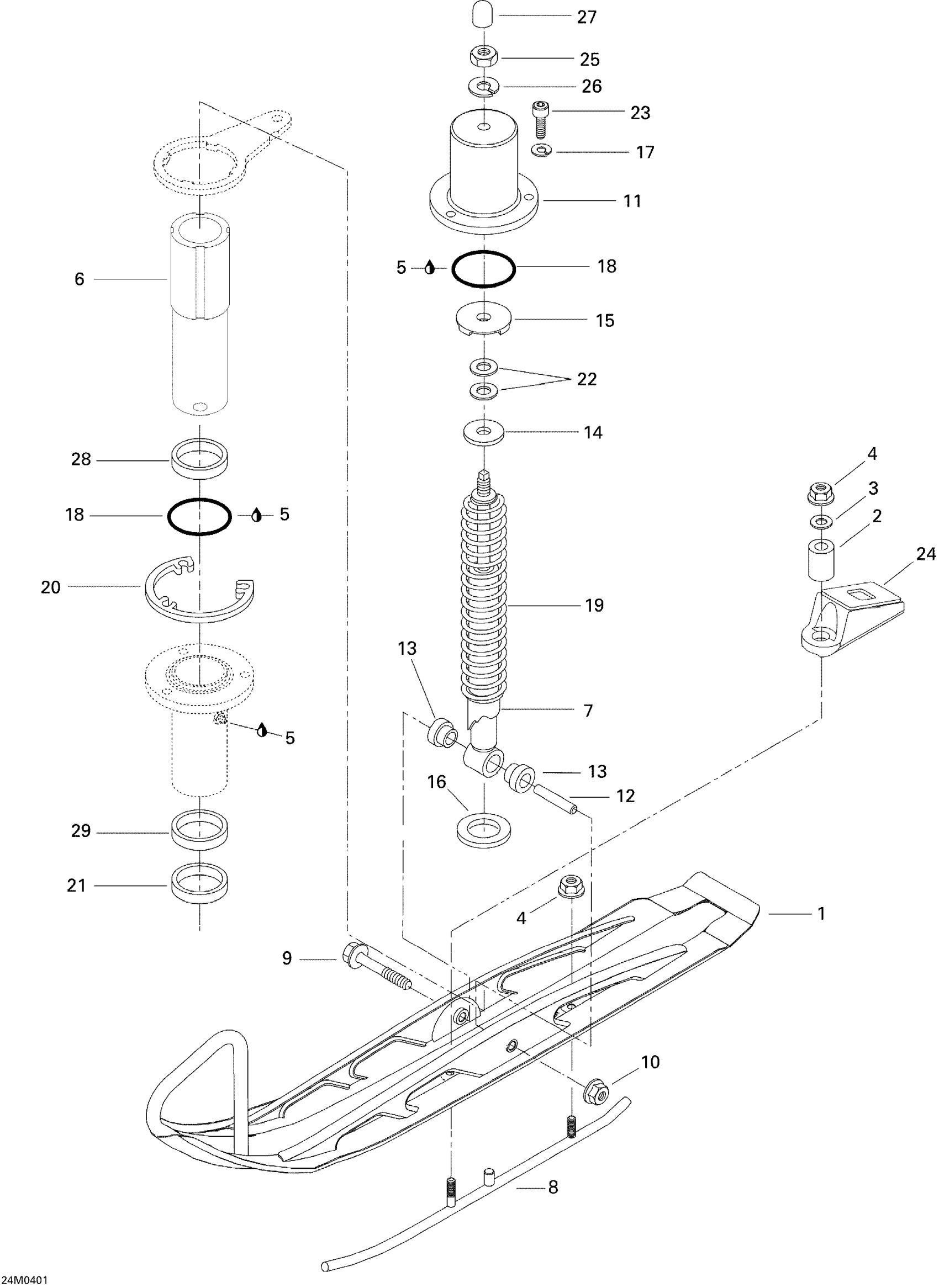

Ski-Doo Tundra R, 2004 Front Suspension And Ski Diagram
#
Description
Price
1
PAINT SKI - Call your local BRP dealership
505070203
Unavailable
2
BUSHING - Call your local BRP dealership
506117300
Unavailable
4
Hex. Elastic Stop Nut M8
232581414
Unavailable
5
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
6
Ski Leg
505070808
Unavailable
7
SHOCK - Call your local BRP dealership
505070014
Unavailable
8
Wekded Ski Runner
505070264
Unavailable
9
HEX. SCREW M10 X 110 - Call your local BRP dealership
230001044
Unavailable
11
Paint Cover
518203200
Unavailable
12
Bushing
503156400
Unavailable
13
Cushion
572034500
Unavailable
14
Washer
518203400
Unavailable
15
Stopper
570025800
Unavailable
16
WASHER - Call your local BRP dealership
505070192
Unavailable
17
Lock Washer 8 mm
234181401
Unavailable
19
Black Spring
505070130
Unavailable
21
Seal Oil
505072696
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
24
Stopper
505070230
Unavailable
26
Lock Washer M10
234101402
Unavailable
27
Cap
414877100
Unavailable
28
Upper Cushion
414803100
Unavailable
29
Lower Cushion
414803200
Unavailable
