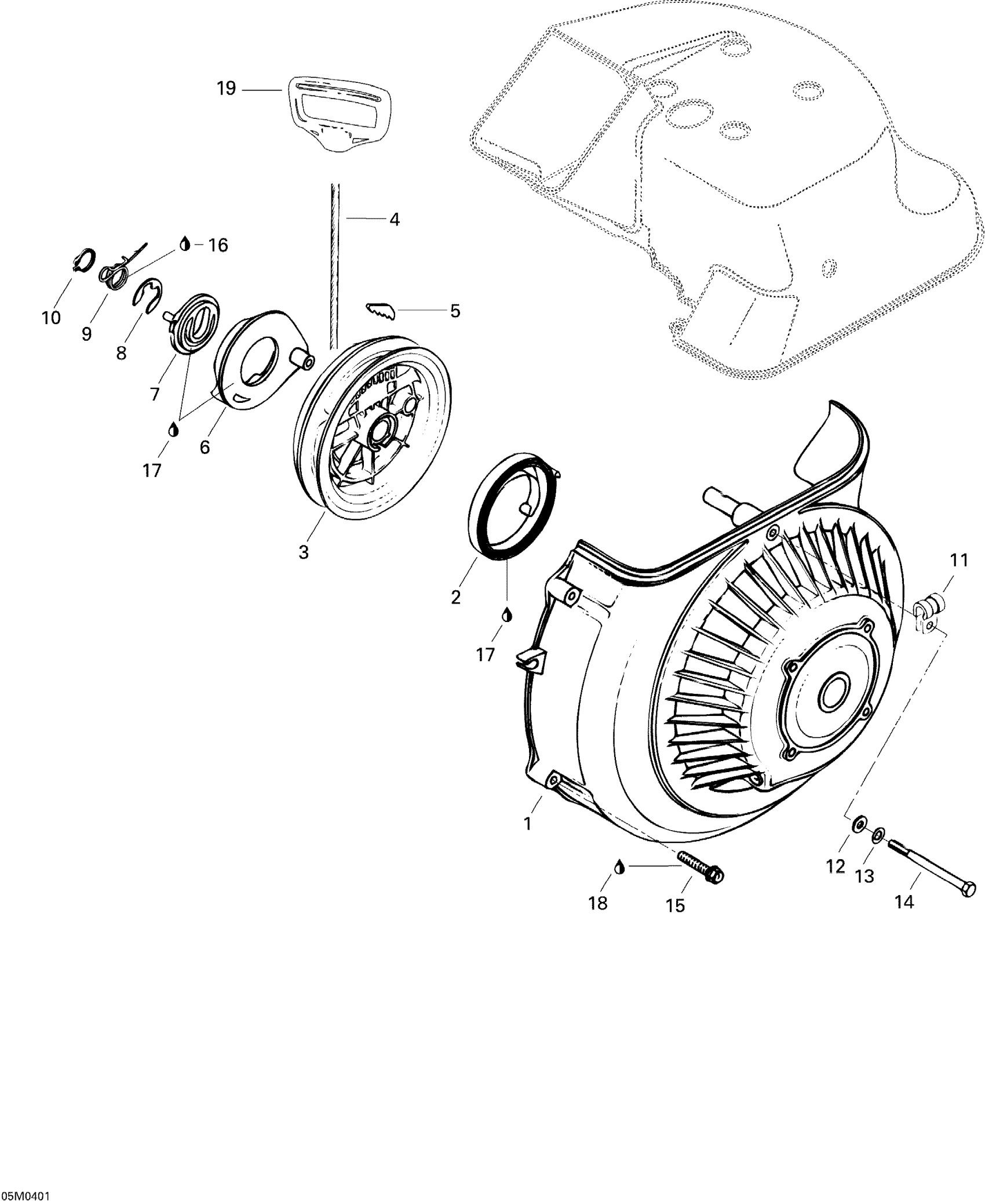

Ski-Doo Tundra R, 2004 Rewind Starter Diagram

#

Description
Price

1

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

Unavailable

1

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

Unavailable

2

Rewind Spring

420939115

$25.32

3

Rope Sheave

420852283

Unavailable

4

Was 412500100 Rope-Starter

219704403

Unavailable

5

Key Clamp

420852070

Unavailable

6

Pawl

420852296

Unavailable

7

PAWL LOCK - Call your local BRP dealership

420852302

Unavailable

8

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

9

Pawl Spring

420938986

Unavailable

10

LOCK RING - Call your local BRP dealership

420945770

Unavailable

11

GEAR CLAMP - Call your local BRP dealership

420851240

Unavailable

12

Flat Washer

224061121

$0.44

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 x 75

222067544

Unavailable

15

TAPPING SCREW M6 X 35 - Call your local BRP dealership

420640411

Unavailable

16

Molykote G-N, 50 g

420297433

Unavailable

17

Molykote PG 54, 10 g

420899763

Unavailable

18

Loctite 243, 10 ml

293800060

$20.77

19

Starter Grip

572084400

Unavailable
