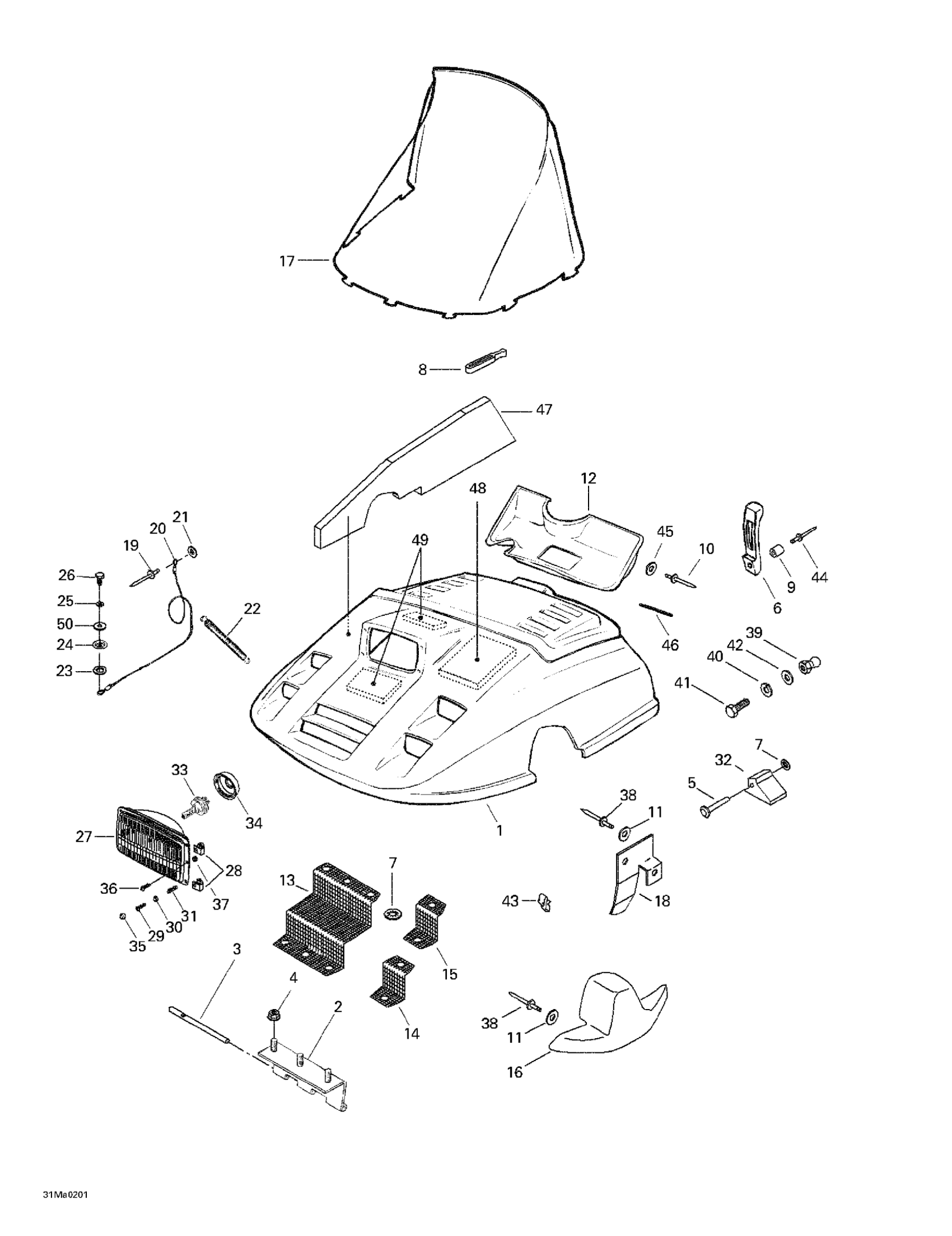

Ski-Doo Tundra R, 2002 Cab, Accessories Diagram

#

Description
Price

1

Yellow Hood | CB-190

572048102

Unavailable

2

Welded Hinge

517182200

Unavailable

3

Pivot Pin

517279800

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Steel Rivet

390907000

Unavailable

6

BLACK LATCH - Call your local BRP dealership

570025900

Unavailable

7

Push Nut

389804300

$0.43

8

Windshield Latch

570023800

$3.58

9

Bushing

293900112

$10.14

10

Pop Rivet 3/16" (Yellow) | CB-190

390400400

Unavailable

11

Flat Washer

517225900

$0.17

12

AIR DUCT - Call your local BRP dealership

414804000

Unavailable

13

Paint Central Front Grill

517251700

Unavailable

14

Front Grill

517251800

Unavailable

15

RH Up Side Grill

517270600

Unavailable

LH Up Side Grill

517270700

Unavailable

16

RH Hood Moulding

572038900

Unavailable

LH Hood Moulding

572038800

Unavailable

17

Windshield

414829400

$119.97

18

RH Hood Guide

517261300

Unavailable

LH Hood Guide

517251500

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

20

Retainer Cable

414581400

Unavailable

21

Washer

517124300

$0.16

22

Spring

414763300

Unavailable

23

RUBBER WASHER - Call your local BRP dealership

420960860

$1.58

24

COWL COVER - Call your local BRP dealership

420827140

$7.43

25

Washer-Lock Din.128

420945832

$1.09

26

Hex. Screw M8 X 25

207182544

$0.74

27

Halogene Headlamp Ass'y

410606800

Unavailable

28

Protector Nut

572378700

Unavailable

29

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

$1.20

30

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

31

SPRING - Call your local BRP dealership

517166000

$4.58

32

Hood Guide

570038700

Unavailable

33

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

34

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

35

Snap Cap (Yellow) | CB-190

414768500

Unavailable

36

Slotted Screw

410603300

Unavailable

37

Grommet

410604400

Unavailable

38

Pop Rivet 3/16”

390407200

$0.66

39

Knob

517245800

$10.83

40

Lock Washer 5 mm | Europe

234151401

$0.46

41

Hex. Screw M5 X 14

207151444

$0.72

42

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

43

Clip

414095100

Unavailable

44

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

45

Flat Washer, Emhart

213200016

$0.68

46

Was 293200017 Neoprene Seal

219704365

$118.27

47

RH Foam

517302204

Unavailable

LH Foam

414867100

Unavailable

48

Side Foam

414829600

Unavailable

49

Front Foam

414829800

Unavailable

50

Flat Washer 8 mm

234081410

$0.69
