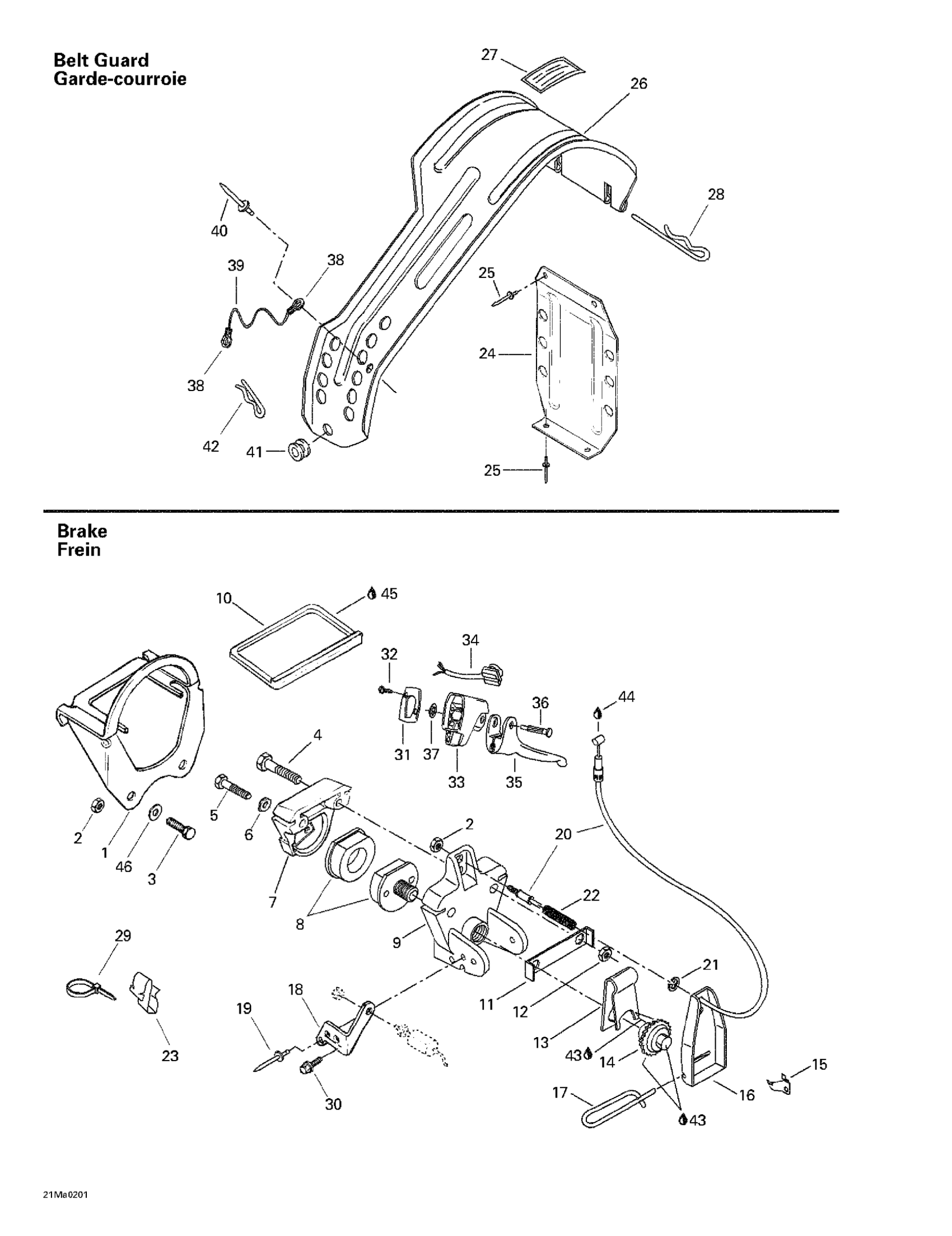

Ski-Doo Tundra R, 2002 Brake And Belt Guard Diagram

#

Description
Price

1

Welded Caliper Support

507032201

Unavailable

2

Elastic Stop Nut M6

232561414

$1.55

3

Hex. Screw M6 X 25

207162544

$1.05

4

Hex. Screw M8 X 50

207085044

$1.25

5

Hex. Screw M5 X 14

207151444

$0.72

6

TAB LOCK - Call your local BRP dealership

507023600

$6.89

7

ANVIL - Call your local BRP dealership

414466800

$13.82

8

Brake Pad

860700100

$50.74

9

Caliper Machined

507026600

Unavailable

10

Slider

572013500

Unavailable

11

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

12

Hex. Elastic Stop Nut M8

232581414

$0.47

13

RELEASE SPRING - Call your local BRP dealership

507020200

$9.20

14

WELDED RATCHET WHEEL - Call your local BRP dealership

507032310

Unavailable

15

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

16

LEVER - Call your local BRP dealership

507021500

$8.43

17

HAIR PIN - Call your local BRP dealership

507032306

$6.12

18

Stop Light Switch Support

507026700

Unavailable

19

Pop Rivet 3/16"

390402300

$0.64

20

Brake Cable and Housing

414920800

Unavailable

21

Circlip

371901300

Unavailable

22

SPRING - Call your local BRP dealership

414460600

$5.58

23

Clip

414227300

$1.45

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Pop Rivet 3/16"

390402400

$0.25

26

Belt Guard Ass'y

417300181

Unavailable

27

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

28

Pin

517164600

Unavailable

29

Tie-Rap 180 mm

414115200

$0.09

30

Hex. Taptite Screw

309904500

Unavailable

31

Cap

572066200

Unavailable

32

Plastite Screw M3 x 16

243231640

Unavailable

33

Brake Handle Housing

572067600

Unavailable

34

Dimmer Switch

410213000

Unavailable

35

Brake Handle

572066600

Unavailable

36

Pin

414179200

Unavailable

37

Push Nut

389804300

$0.43

38

Terminal Ring

561502800

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

41

Grommet

414036300

$2.22

42

Hair Pin

414575600

$1.51

43

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

44

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

46

Flat Washer 6 mm

234061410

$1.04
