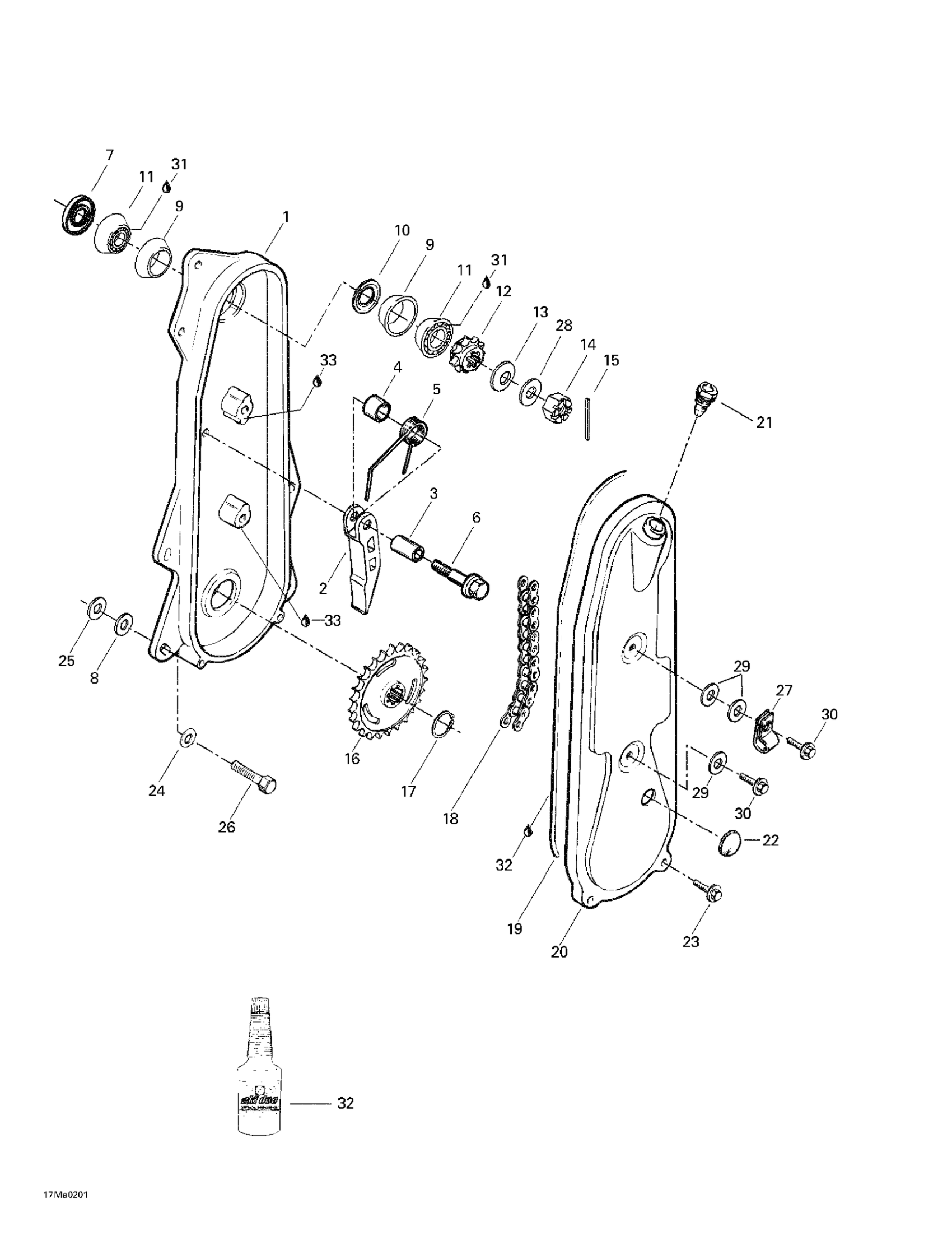

Ski-Doo Tundra R, 2002 Chaincase Diagram

#

Description
Price

1

Machined Chain Case

504088000

Unavailable

2

CHAIN TENSIONER - Call your local BRP dealership

572041600

Unavailable

3

Spacer

504051600

Unavailable

4

SPACER - Call your local BRP dealership

504018200

Unavailable

5

Spring

414130600

Unavailable

6

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

$5.28

7

Oil Seal

406300600

$15.35

8

WASHER - Call your local BRP dealership

504073700

$3.08

9

Cup Bearing

405000300

Unavailable

10

Oil Deflector

504005800

Unavailable

11

CONE BEARING - Call your local BRP dealership

405000400

Unavailable

12

SPROCKET 14 TOOTH - Call your local BRP dealership

504088500

$73.82

13

Washer

414823700

Unavailable

14

HEX. CASTELLATED NUT M12 - Call your local BRP dealership

232220413

$2.14

15

COTTER PIN - Call your local BRP dealership

371800800

Unavailable

16

Sprocket 25 Tooth

504088600

Unavailable

17

External Circlip

371904900

Unavailable

18

Driving Chain

412106300

Unavailable

19

Seal

570045900

Unavailable

20

PAINT CHAINCASE COVER - Call your local BRP dealership

504088100

$93.82

21

Breather

572040600

Unavailable

22

Plug

570040600

Unavailable

23

Hex. Flange Screw M6 X 16

210261650

$1.22

24

Washer

506151245

$0.91

25

WASHER - Call your local BRP dealership

250200001

Unavailable

26

Hex. Screw M8 X 25

207182544

$0.74

27

CLIP - Call your local BRP dealership

414351600

$2.89

28

Special Washer

504049500

Unavailable

29

Flat Washer 6 mm

234062410

$0.64

30

Hexagonal Head Screw

210262050

$1.74

31

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

32

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

33

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12
