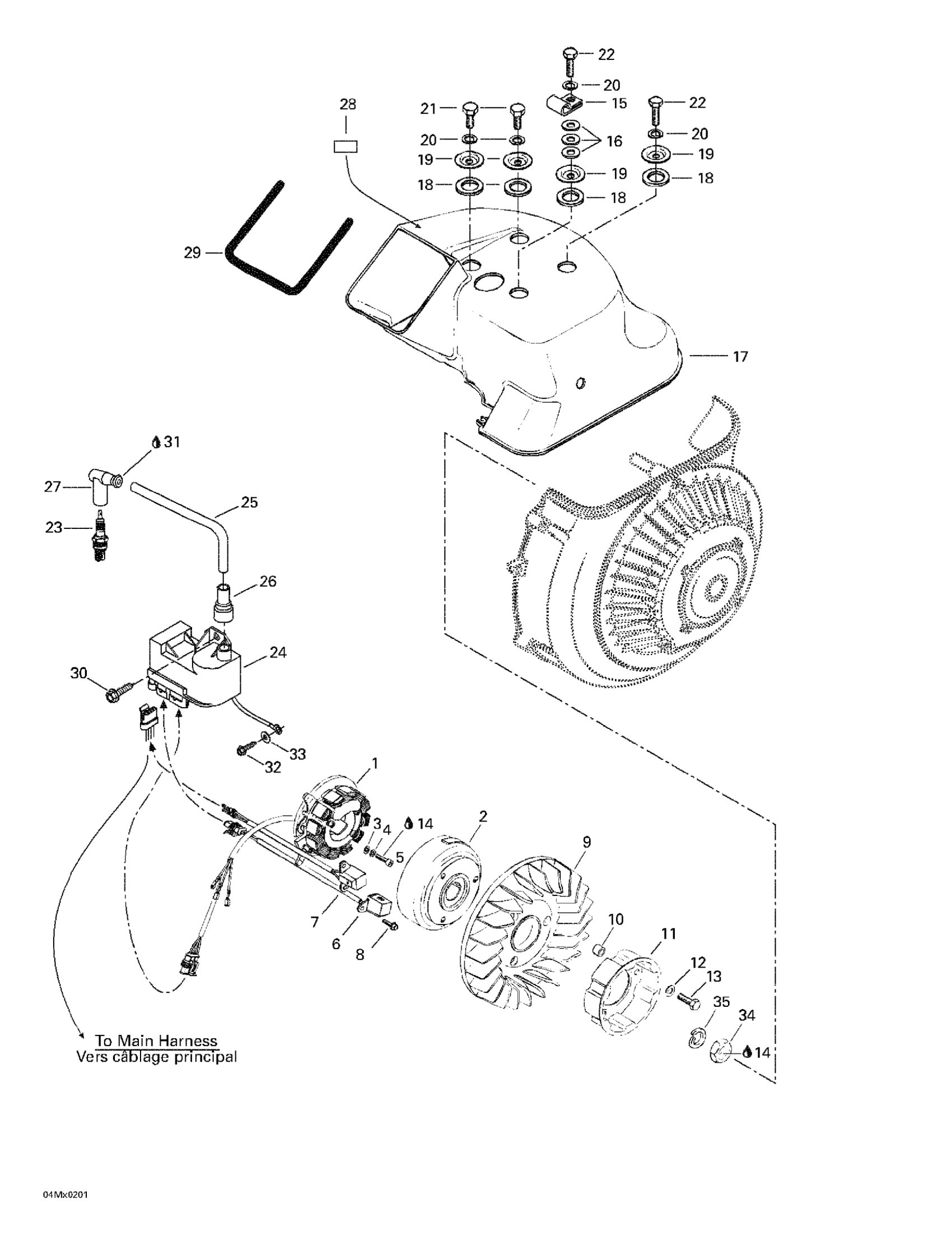

Ski-Doo Tundra R, 2002 Magneto (tundra R) Diagram

#

Description
Price

1

DUCATI MAGNETO 12 V 240W ASS'Y - Call your local BRP dealership

420887658

Unavailable

1

STATOR PLATE ASS'Y - Call your local BRP dealership

420886608

Unavailable

2

FLYWHEEL - Call your local BRP dealership

420996829

Unavailable

3

Washer 5.3

420927574

$1.85

4

Lock Washer

420945750

Unavailable

5

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

$1.08

6

Pick Up Ass'y

420966542

Unavailable

7

Pick Up Ass'y

420966544

Unavailable

8

Taptite Screw M5 X 16

420941928

$0.39

9

FAN - Call your local BRP dealership

420866435

Unavailable

10

SPACER BUSHING - Call your local BRP dealership

420847440

$8.43

11

Starting Pulley

420852590

$28.43

12

Washer-Lock Din.128

420945832

$1.09

13

Hex. Screw M8 X 25

207182544

$0.74

14

Loctite 243, 10 ml

293800060

$20.77

15

Open Clamp

414176000

$1.86

16

Flat Washer 8 mm

234081410

$0.69

17

CYLINDER COWL - Call your local BRP dealership

420910020

Unavailable

18

RUBBER WASHER - Call your local BRP dealership

420960860

$1.58

19

COWL COVER - Call your local BRP dealership

420827140

$7.43

20

Washer-Lock Din.128

420945832

$1.09

21

Hex. Screw M8 x 16

207181644

$0.87

22

Hex. Screw M8 X 25

207182544

$0.74

23

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.03

24

Calibrated Module | Includes 52 to 55

512060006

$387.66

25

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

26

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

27

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

28

Spark Plug Decal

516000986

Unavailable

29

Neoprene Seal 3000Mm Long

219704371

$45.47

30

Screw-hex.taping 12

365901400

Unavailable

31

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

32

Taptite Screw M5 X 16

420941928

$0.39

33

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

34

Hex. Nut, M22 X 1.5

420842239

$14.27

35

Lock Washer, 22 mm

420945759

$1.55
