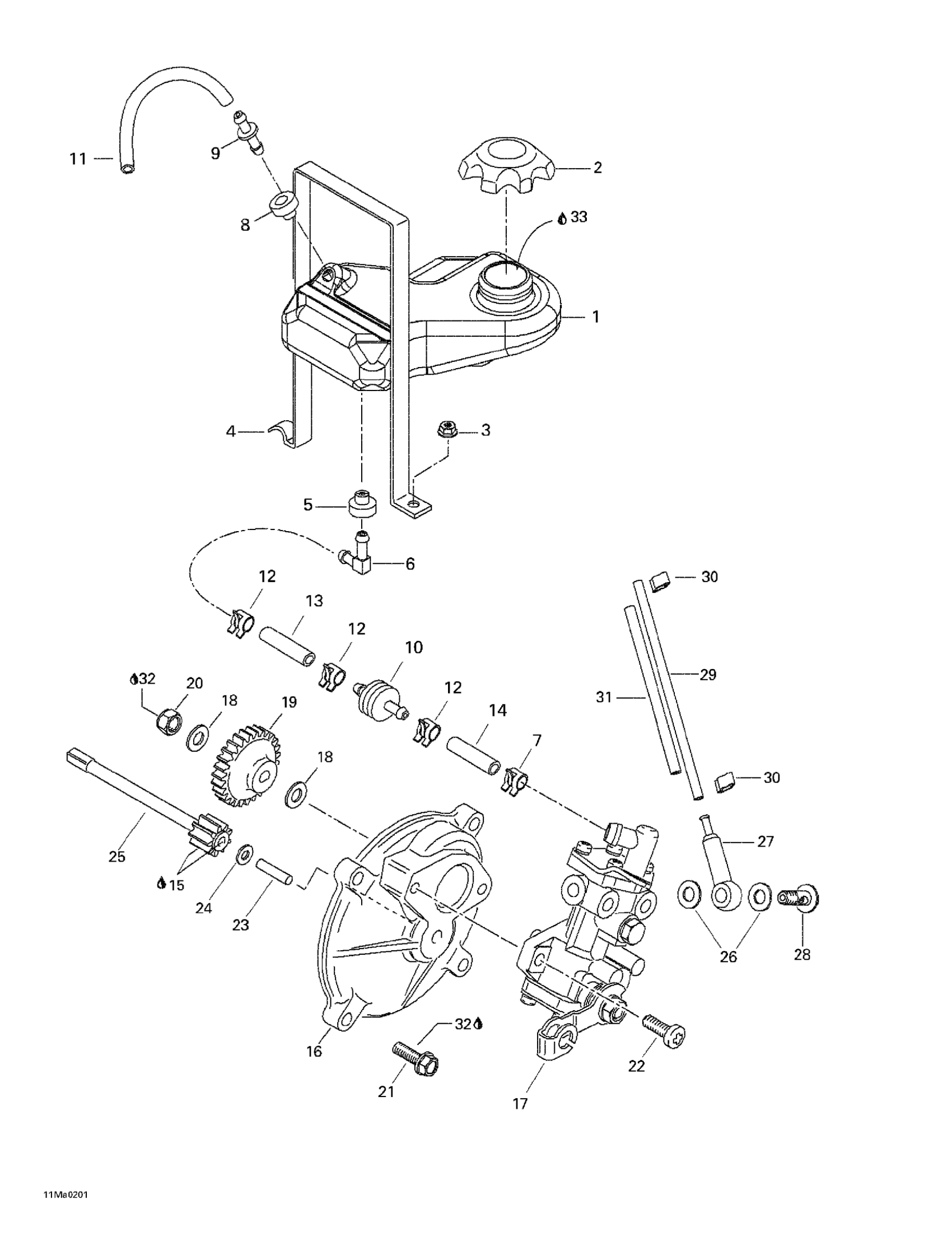

Ski-Doo Tundra R, 2002 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

519000046

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4

Retainer Strip

517263400

Unavailable

5

Grommet

709200285

$8.38

6

MALE CONNECTOR - Call your local BRP dealership

519000055

Unavailable

7

Universal Spring Clamp

513033029

$5.11

8

GROMMET - Call your local BRP dealership

570027700

$8.29

9

Check Valve

275500398

$8.57

10

Filter

414536500

$3.25

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

12

Spring Clamp

414655700

$0.68

13

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

14

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

15

Dow Corning 111, 150 g

413707000

$57.82

16

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

$65.35

17

Oil Pump Ass'y

404046100

Unavailable

18

FLAT WASHER - Call your local BRP dealership

420927945

$1.38

19

Oil Pump Gear, 27 Teeth

420935930

$14.54

20

Elastic Stop Nut M6

232561414

$1.55

21

SCREW - Call your local BRP dealership

420841976

$4.65

22

Screw

420841971

$2.91

23

NEEDLE PIN - Call your local BRP dealership

420832260

$3.85

24

Flat Washer 4

420244072

$0.70

25

GEAR, 9 TEETH - Call your local BRP dealership

420935975

$12.95

26

Sealing Washer

404146600

$0.72

27

Valve Ass’Y

420956010

$14.27

28

Banjo Bolt M6 X 16

404146800

Unavailable

29

Oil Hose 1500Mm Long

219704404

$13.62

30

Clamp

420853840

$4.28

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

$1,896.12

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable
