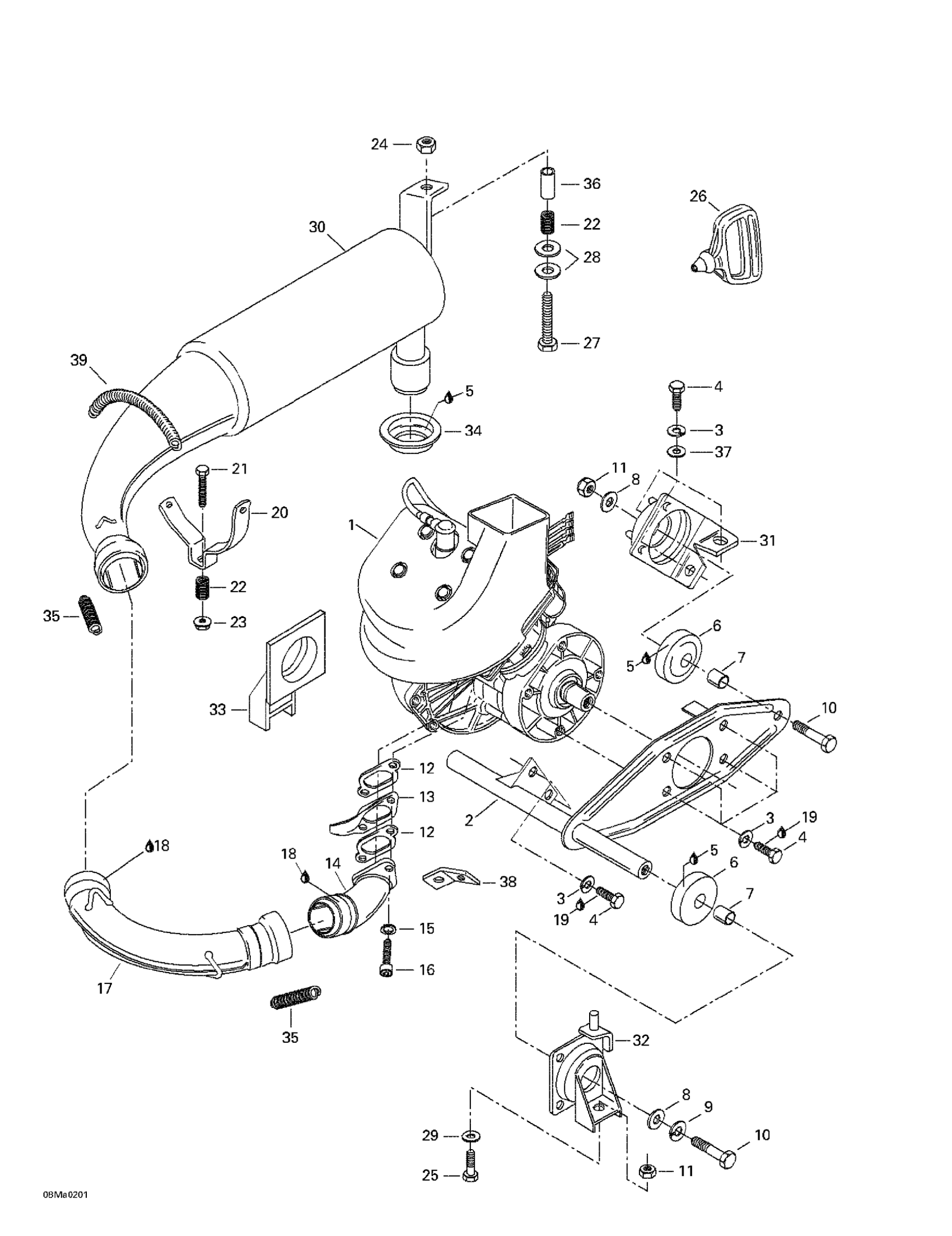

Ski-Doo Tundra R, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

Engine 277 Ass'y

400206003

Unavailable

2

Engine Support Paint

512059034

Unavailable

3

Lock Washer 8 mm

234181401

$0.89

4

Hex. Screw M8 X 20

207182044

$0.61

5

Grease, Super Lube

293550030

$24.67

6

RUBBER MOUNT - Call your local BRP dealership | Includes item 4 and 5

570126800

Unavailable

7

BUSHING - Call your local BRP dealership

517167100

Unavailable

8

Washer

506063100

Unavailable

9

Lock Washer M10

234101402

Unavailable

10

Hex. Screw M10 X 40

207004044

$4.65

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Gasket 1 mm

420831847

$11.52

13

AIR DEFLECTOR - Call your local BRP dealership

420975720

$11.51

14

Exhaust Socket

420978836

Unavailable

15

Washer-Lock Din.128

420945832

$1.09

16

Socket Head Screw M8 X 30

205083044

$0.92

17

Welded Exhaust Elbow

514050300

Unavailable

18

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

19

Loctite 243, 10 ml

293800060

$20.77

20

Muffler Support

514017900

Unavailable

21

Hex. Screw M6 X 45

207064544

$2.02

22

SPRING - Call your local BRP dealership

414913700

$2.28

23

Elastic Stop Nut M6

232561414

$1.55

24

Hex. Elastic Stop Nut M8

232581414

$0.47

25

Hex. Screw M10 X 25

207102544

$1.11

26

Starter Grip

572084400

$14.54

27

Hex. Screw M8 X 50

207085044

$1.25

28

Flat Washer 8 mm

234082410

$1.11

29

WASHER - Call your local BRP dealership

732900051

Unavailable

30

Paint Muffler

514053339

Unavailable

31

WELDED SUPPORT - Call your local BRP dealership

512050400

Unavailable

32

LH Support

512048400

Unavailable

33

RH Welded Support

512048300

Unavailable

34

Exhaust Grommet

570141300

Unavailable

35

SPRING - Call your local BRP dealership

517182100

$10.26

36

Guide

514035800

Unavailable

37

FLAT WASHER - Call your local BRP dealership

224081201

$0.70

38

SPRING BRACKET - Call your local BRP dealership

420953170

$10.85

39

Spring

517268300

Unavailable

40

Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.

420992069

$60.74
