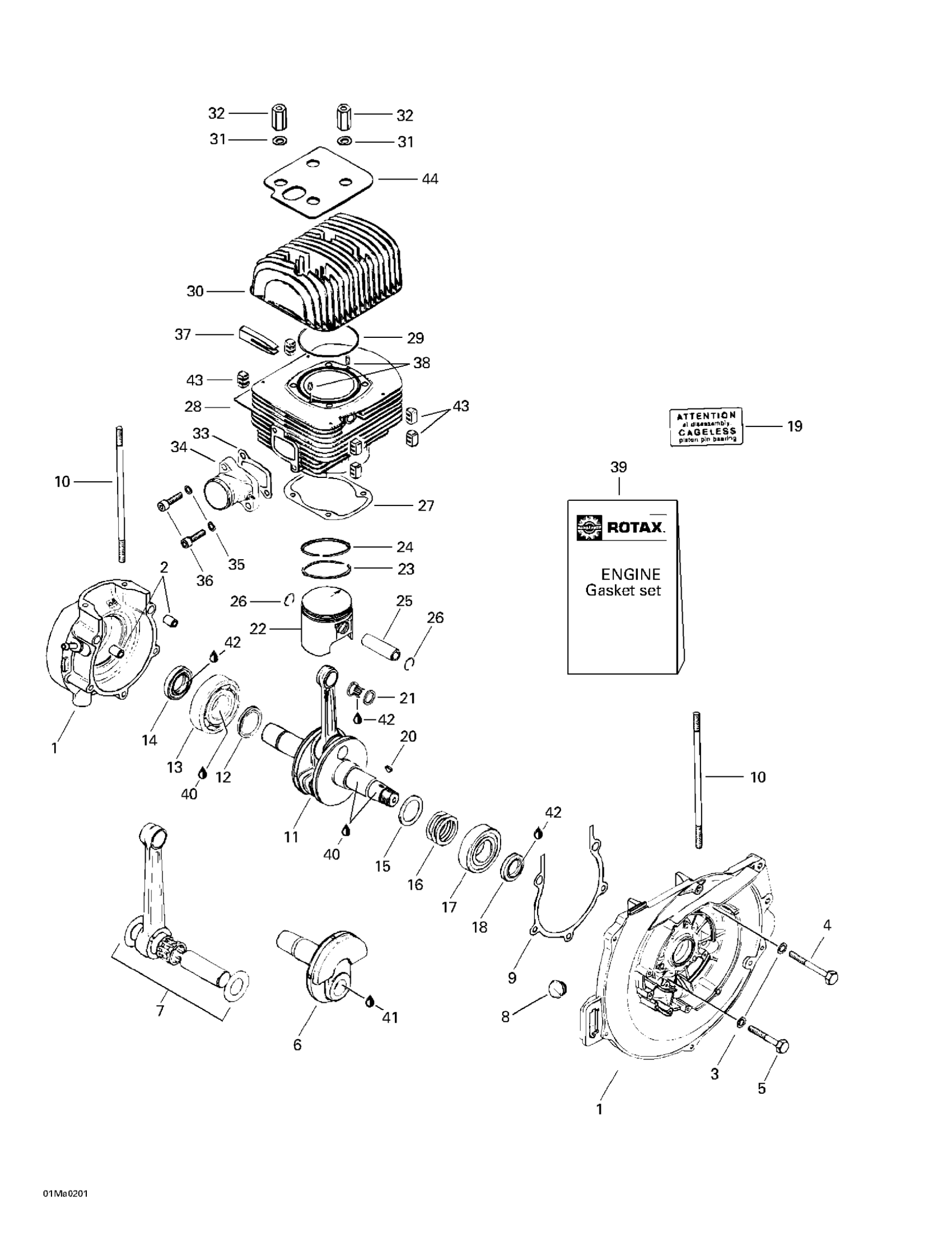

Ski-Doo Tundra R, 2002 Crankcase And Cylinder Diagram

#

Description
Price

1

Crankcase Ass'y | 1 to 5

420886709

$684.99

2

DOWEL - Call your local BRP dealership

420229150

$3.51

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

PTO CRANKSHAFT - Call your local BRP dealership

420919951

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Cable Grommet

420860962

$11.52

9

GASKET CRANKCASE - Call your local BRP dealership

420850060

$4.31

10

STUD M8 X 175 - Call your local BRP dealership

420840620

Unavailable

11

Crankshaft

420995301

Unavailable

12

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

$6.52

13

BALL BEARING - Call your local BRP dealership

420932571

$45.35

14

Oil Seal

420850050

$17.66

15

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

$6.52

16

SHIM 0.3 - Call your local BRP dealership

420944582

$1.80

SHIM 0.1 - Call your local BRP dealership

420944583

$1.63

Shim 0.5

420944584

$4.00

SHIM 0.2 - Call your local BRP dealership

420944586

$1.35

17

Ball Bearing

420932581

Unavailable

18

Oil Seal

420230425

$15.35

19

Cageless Label

420897280

Unavailable

20

Woodruff Key

420246055

$1.99

21

Needle Bearing

420832320

$24.67

22

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$174.58

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$174.58

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$159.99

23

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

$22.99

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

$28.43

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

24

SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership

420815200

$44.58

SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership

420815201

Unavailable

SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership

420815202

$46.12

25

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

26

Piston Circlip

420945735

$3.93

27

Gasket 0.4 mm

420831858

$11.52

28

Cylinder With Sleeve

420913219

Unavailable

29

O-Ring This part replaces 420850540.

293300026

$2.67

30

Cylinder Head

420823788

Unavailable

31

Flat Washer 8.4 mm

420250315

$1.09

32

DISTANCE NUT M8 X 27.5 - Call your local BRP dealership

420842010

$11.15

33

INTAKE GASKET - Call your local BRP dealership

420831861

Unavailable

34

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

35

Washer-Lock Din.128

420945832

$1.09

36

Socket Head Screw M8 X 30

205083044

$0.92

37

RUBBER FIN - Call your local BRP dealership

420860100

$6.12

38

Drive Pin 5 X 10

420929650

$1.34

39

Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.

420992069

$60.74

40

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

41

Sealant Loctite 648

219703000

$35.72

42

Dow Corning 111, 150 g

413707000

$57.82

43

NOISE DAMPER - Call your local BRP dealership

420860097

$10.74

44

SILENT BLOCK - Call your local BRP dealership

420960130

$10.74
