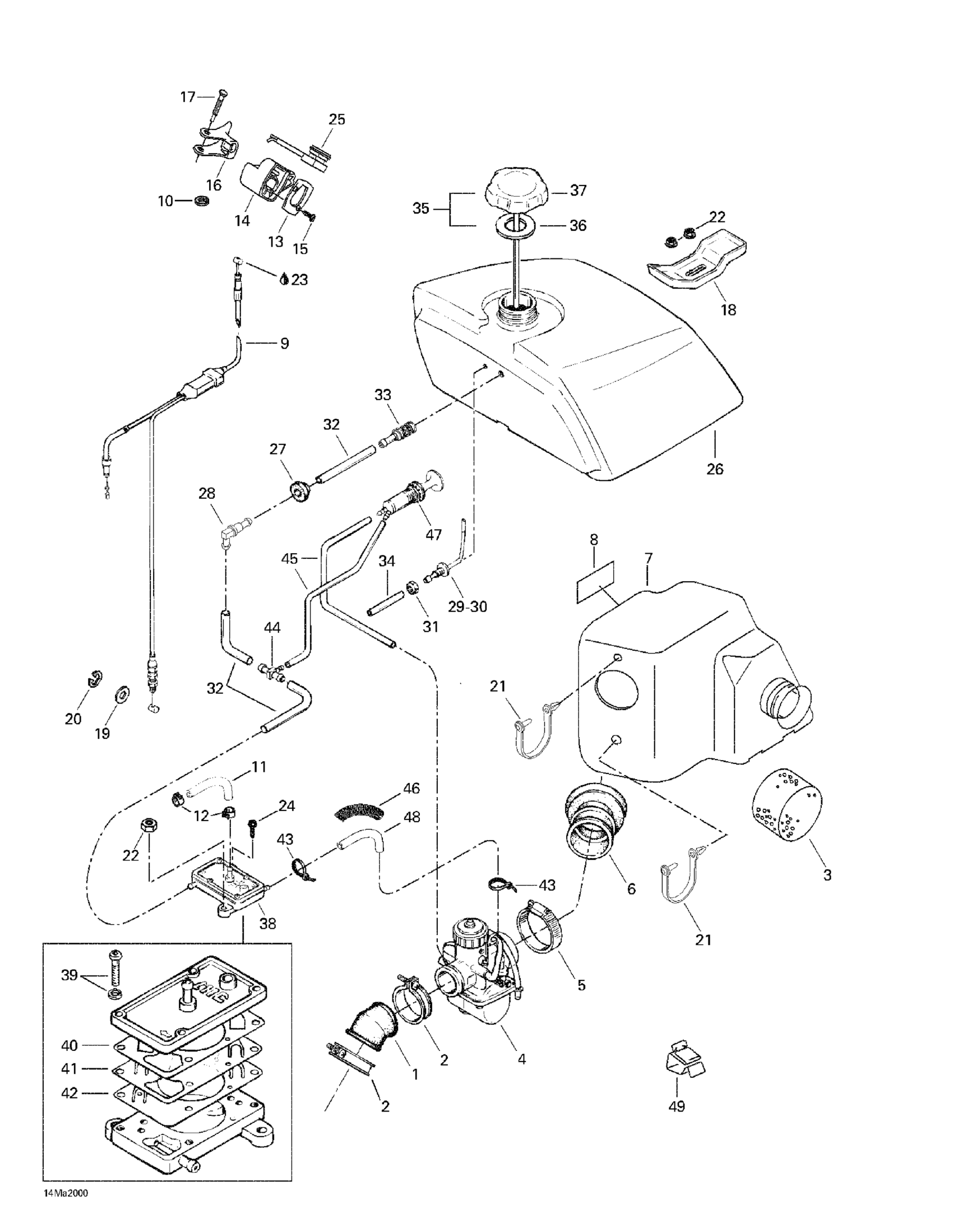

Ski-Doo Tundra R, 2000 Fuel System Diagram
#
1
Rubber Flanged
570025400
Unavailable
2
TRIDON GEAR CLAMP - Call your local BRP dealership
408801900
Unavailable
3
Air Filter
414819900
Unavailable
4
Carburetor VM 34-551
403138598
Unavailable
5
Tridon Gear Clamp
408802000
Unavailable
6
Carburetor Adaptor
570136300
Unavailable
7
Air Silencer
572107901
Unavailable
8
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
9
THROTTLE CABLE AND HOUSING - Call your local BRP dealership
512059040
Unavailable
10
Circlip
371904000
Unavailable
11
Hose
219704549
Unavailable
13
Cap
572066200
Unavailable
14
Throttle Handle Housing
572065400
Unavailable
15
Plastite Screw M3 x 16
243231640
Unavailable
16
Throttle Handle
512059053
Unavailable
17
Pin
414242700
Unavailable
18
Bracket Seat-tank
517159500
Unavailable
22
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
23
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
24
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
25
Kill Switch
515175409
Unavailable
26
Fuel Tank
513032960
Unavailable
29
Vent Fitting | Includes Items 4 to 6
513031100
Unavailable
30
Fitting
513031701
Unavailable
31
HEX. NUT 5/16-18 YIC - Call your local BRP dealership
396302200
Unavailable
32
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
34
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
38
FUEL PUMP DF44-226A - Call your local BRP dealership
403800800
Unavailable
39
Screw
404118500
Unavailable
40
Packing (Cap)
404901600
Unavailable
41
Diaphragm
404901700
Unavailable
42
Membrane
404901800
Unavailable
45
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
46
Tubing 10 MM 1000MM Long
219704407
Unavailable
47
Primer
415060500
Unavailable
48
Formed Hose
513032932
Unavailable
