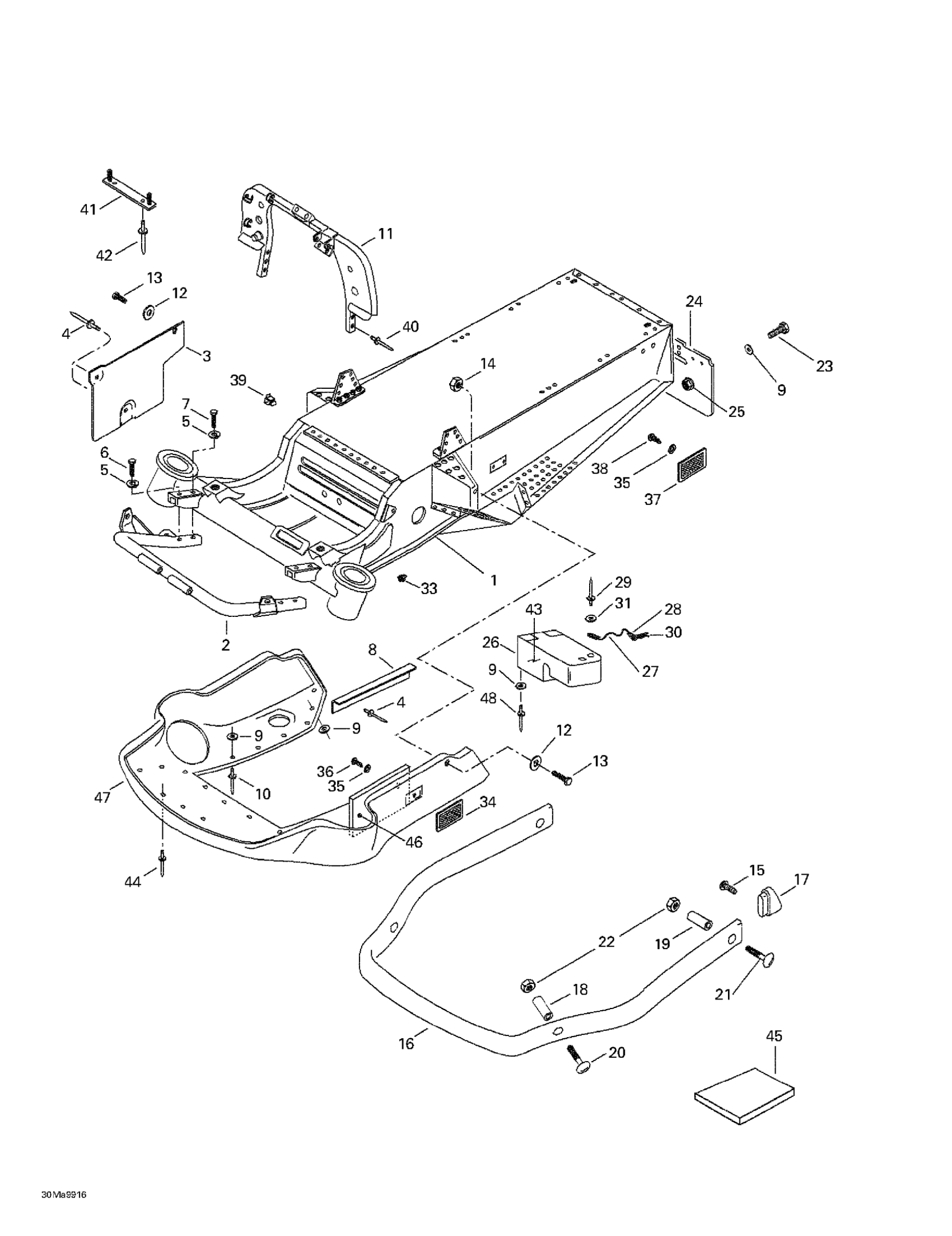

Ski-Doo Tundra R, 1999 Frame And Body 2 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Welded Front Bumper

518320200

Unavailable

3

Heat Shield

517299300

Unavailable

4

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

5

Lock Washer M6, Black

234161471

$0.52

6

Hex. Flange Screw M6 X 35

207063544

$1.35

7

Hex. Screw M6 X 25

207162544

Unavailable

8

Paint Reinforcement

517259200

Unavailable

9

Washer

517124300

Unavailable

10

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

11

Upper Column Support

518320300

Unavailable

Upper Column Support | Tundra.

518320800

Unavailable

12

Flat Washer

224061121

$0.44

13

Hex. Screw M6 X 16

207161644

Unavailable

14

Elastic Stop Nut M6

232561414

Unavailable

15

TAPPING SCREW M4.2X9.5 - Call your local BRP dealership

209640940

Unavailable

16

Bumper

517248810

Unavailable

17

Bumper Cap

572039300

Unavailable

18

BUSHING - Call your local BRP dealership | TROUSSE

517250600

Unavailable

19

Bushing | TROUSSE

517250700

Unavailable

20

Carriage Screw M8 x 75

222287565

Unavailable

21

Carriage Bolt M6 X 55 This part replaces 207785541.

207765544

Unavailable

22

Hex. Elastic Stop Nut M8

232581414

Unavailable

23

Hex. Screw M5 X 20

207152044

$0.88

24

Snow Guard

572013800

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

Tool Box

414624900

Unavailable

27

Wire

414407400

Unavailable

28

Terminal Ring

561502800

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Hair Pin

414575600

Unavailable

31

WASHER - Call your local BRP dealership

391301000

$0.65

32

Latch

517168500

Unavailable

33

Grease Fitting

408200700

Unavailable

34

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

35

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

37

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

38

Phillips Screw M5 x 8

222850865

Unavailable

39

Clip

414227300

$1.45

40

Pop Rivet

390411300

Unavailable

41

Retainer Plate

517278800

Unavailable

42

Pop Rivet 3/16"

390402400

Unavailable

43

Tool Kit

529034300

Unavailable

Tool Kit | Tundra.

529035574

Unavailable

Socket Wrench 21/26 mm

529014800

Unavailable

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

Socket Wrench 10/13 mm

529014900

Unavailable

Was 412500100 Rope-Starter

219704403

Unavailable

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

BELT TOOL - Call your local BRP dealership

529034200

Unavailable

44

Pop Rivet 3/16"

390906800

Unavailable

45

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

46

Side Foam

502006541

Unavailable

47

Bottom Pan

414920901

Unavailable

48

Pop Rivet 3/16"

390906800

Unavailable
