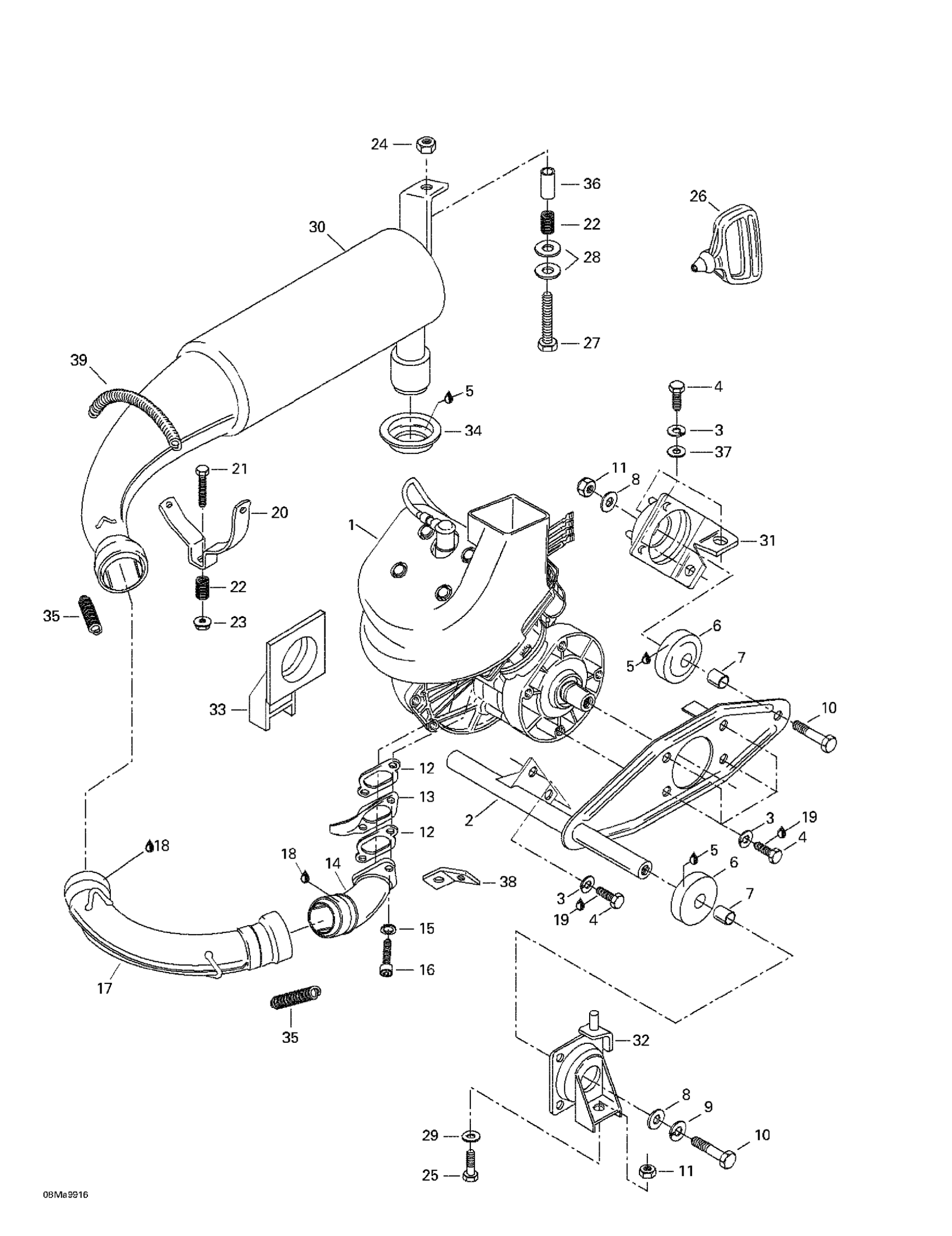

Ski-Doo Tundra R, 1999 Engine Support And Muffler Diagram
#
Description
Price
1
ROTAX Engine <<277>> | Tundra R.
400206002
Unavailable
ROTAX Engine <<277>> | Tundra.
400206001
Unavailable
2
Engine Support Paint
512059034
Unavailable
3
Lock Washer 8 mm
234181401
Unavailable
5
Grease, Super Lube
293550030
Unavailable
6
RUBBER MOUNT - Call your local BRP dealership | Includes item 4 and 5
570126800
Unavailable
7
BUSHING - Call your local BRP dealership
517167100
Unavailable
8
Washer
506063100
Unavailable
9
Lock Washer 10 mm
224701170
Unavailable
12
Gasket 1 mm
420831847
Unavailable
14
Exhaust Socket
420978836
Unavailable
15
Washer-Lock Din.128
420945832
Unavailable
16
Socket Head Screw M8 X 30
205083044
Unavailable
17
Welded Exhaust Elbow
514050300
Unavailable
18
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
20
Muffler Support
514017900
Unavailable
21
Hex. Screw M6 X 45
207064544
Unavailable
23
Elastic Stop Nut M6
232561414
Unavailable
24
Hex. Elastic Stop Nut M8
232581414
Unavailable
25
Hex. Screw M10 X 25
207102544
Unavailable
26
Starter Grip
572084400
Unavailable
27
Hex. Screw M8 X 50
207085044
Unavailable
29
WASHER - Call your local BRP dealership
732900051
Unavailable
30
Muffler
514050200
Unavailable
31
WELDED SUPPORT - Call your local BRP dealership
512050400
Unavailable
32
LH Support
512048400
Unavailable
33
RH Welded Support
512048300
Unavailable
34
Exhaust Grommet
570141300
Unavailable
35
SPRING - Call your local BRP dealership
517182100
Unavailable
36
Guide
514035800
Unavailable
37
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
38
SPRING BRACKET - Call your local BRP dealership
420953170
Unavailable
39
Spring
517268300
Unavailable
