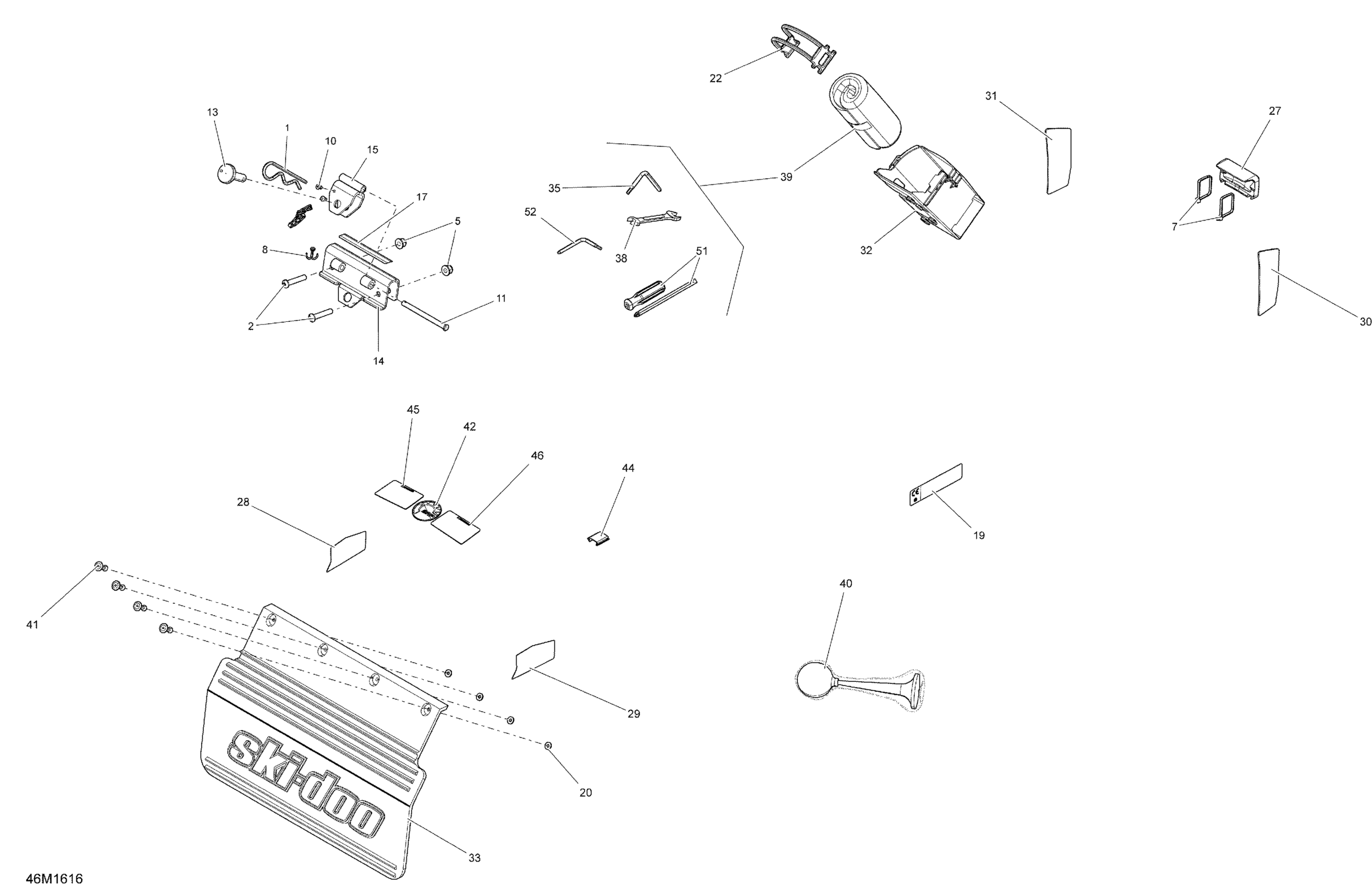

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 Utilities Diagram

#

Description
Price

1

Hair Pin

114045200

$10.69

2

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

3

Waranty Registration Form

219400038

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Elastic Flange Nut M8

233281466

$0.83

7

Tie Rap 371 mm

293750018

$0.46

8

Cotter Pin

371800200

$0.51

10

Pop Rivet 5/32” | Model Europe

390404300

$0.31

11

Lock Pin

511001451

$8.57

12

Hitch Plate Welded

511000521

$14.54

13

Pin

511000555

$18.43

14

Support

511000554

$18.43

15

HITCH PLATE - Call your local BRP dealership

511000588

$16.89

16

Support

511000768

$29.20

17

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

19

CE Decal | Model Europe

516006804

$9.94

20

Washer

517124300

$0.16

21

White, Reflector

415037900

$19.20

21

Amber, Reflector

520000271

$19.20

22

Latch

520000528

$6.60

27

Deep Black, Reflector Support

520000871

$5.29

28

Yellow, RH Rear Reflector

520000883

$13.38

28

Yellow, LH Rear Reflector

520000882

$13.38

28

Red, LH Rear Reflector

520000880

$13.38

29

Red, RH Rear Reflector

520000881

$13.38

30

Yellow, RH Front Reflector

520000891

$13.38

31

Yellow, LH Front Reflector

520000892

$13.38

32

Tool Kit Rack

520000894

$14.99

33

Snow Guard

520000949

$82.99

35

Spacing Tool

520001142

$10.99

38

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

39

Tools Kit | Includes 1400 to 1400b

520001593

$52.99

40

Horn

549011291

$35.35

41

Pop Rivet 3/16”

293150101

$2.06

42

BRP Logo 48mm

516008738

$12.87

44

Radiator Trim

520000829

$20.74

45

Warning Decal

516006908

Unavailable

46

RH Warning Decal, Safety

516005587

Unavailable

51

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

52

Set Key, 16/21 mm

529000046

$14.49
