Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.99

2

Hex. Flange Screw, Scotch Grip

207584034

$2.19

3

Hex. Flange Screw M6 X 20

207662044

$2.09

4

Hex. Flange Screw M6 X 25

207662544

$1.49

5

Hex. Flange Screw M6 X 16

210261650

$1.69

5

Hex. Flange Screw M6 X 16

210261650

$1.69

6

Hex. Flange Screw M6 X 20

210262040

$2.19

7

Flat Washer

224061201

$1.49

9

Hex. Flange Nut M6

233061414

$1.69

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

11

Elastic Flange Nut M6 X 1.0

233261416

$2.19

12

Hex. Flange Elastic Nut M8

233281414

$1.49

13

Conical Spring Washer M8

234281474

$1.49

14

Torx Truss Screw M6 X 12

250000767

$2.09

15

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.19

16

Tork Screw M6 X 16

250000534

$2.19

17

Torx Screw M8 X 55

250000535

$3.29

18

Tork Screw M6 X 18

250000536

$2.19

19

Flat Washer

250200039

$1.49

20

Clinch Stud M6 X 20

250300027

$2.09

21

Clinch Stud M6 X 30

250300031

$2.09

22

Clinch Stud

250300038

$4.39

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

24

Hemlock Rivet, 6.5 mm

293150119

$4.39

26

Hemlock Rivet 6.5 mm

293150120

$7.59

27

Stavex Rivet

293150144

$1.49

34

Henrob Rivet

293150146

$2.09

35

Ornit Rivet 6,5 X 14.5

293150266

$2.49

36

Hemlock Rivet, 6.4 mm

293150174

$7.99

37

Monobolt Rivet 6.4

293150182

$3.19

38

Black, Dart 8 mm

293730047

$2.29

38

Full Moon Dart 8 mm

293730041

$2.29

39

Black, Plug

293730052

$9.19

40

Full Moon Dart 10 mm

293730059

$4.69

41

Pop Rivet 3/16"

390402200

$1.49

42

Pop Rivet 3/16"

390402400

$1.49

43

Avex Rivet

390909100

$1.49

45

Avex Rivet

390909200

$1.49

46

Insert

293450275

$12.99

48

Vibration Damper

512061516

$62.99

49

Heat Shield

514054755

$9.39

50

RH Reinforcement

518324874

$27.99

50

LH Reinforcement

518324875

$27.99

53

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

53

LH Roller | Includes 10bd to 10be

518325160

$78.99

53

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

53

LH Roller

518325378

$76.99

55

Adhesive Patch

518325560

$4.69

56

Clear Rear Bumper | Sport

518325577

$109.99

56

Clear Rear Bumper

518325579

$114.99

58

RH Deflector, Black Polypropylene

518325782

$13.99

58

LH Deflector, Black Polypropylene

518325783

$13.99

60

RH Front Member

518325949

$19.99

61

LH Front Member

518325950

$19.49

62

Front Bottom Plate

518325951

$32.99

63

RH Slide Bracket

518325955

Unavailable

63

LH Slide Bracket

518325956

$49.99

65

RH Rear Base

518325973

$21.99

65

LH Rear Base | Includes 10v to 10x

518325974

$21.99

67

Engine Support

518326140

$124.99

68

Front Member

518326198

$64.99

69

RH Side Member

518326328

$284.99

70

LH Side Member

518326330

$284.99

71

Center Column Support

518326355

$22.49

72

Battery Support

518326472

$44.99

73

RH Support | LT

518326482

$9.19

74

Retaining Plate | Includes 40 to 40a

518326550

$18.49

75

Front Member, S Module

518326557

$369.99

76

Rear Member

518326559

$264.99

77

Rear Radiator Ass'y, 137" | SPORT

518326641

$739.99

77

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$739.99

78

Seal

518326656

$9.19

80

LH Stirup

518326820

$37.99

81

Upper Column Support

518326848

$15.99

82

Support

518326960

$12.99

83

U-Attach

518326961

$10.99

84

Attach | Includes 10n to 10p

518326986

$12.99

85

E-Module | LT

518327006

$769.99

86

Rear Cap

518327105

$22.49

87

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

88

RH Bracket | Sport

518328787

$81.99

88

LH Bracket | Sport

518328788

$79.99

90

Full Moon RH Cap

520000711

$8.99

90

Full Moon LH Cap

520000712

$9.39

92

FRAME TUNDRA 154 ACE - Call your local BRP dealership | LT

415130263

Unavailable

92

FRAME TUNDRA 137 ACE - Call your local BRP dealership | SPORT

415130262

Unavailable

93

Panel Nut M5 X 0.8

250000958

$4.29

94

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.19

95

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.19

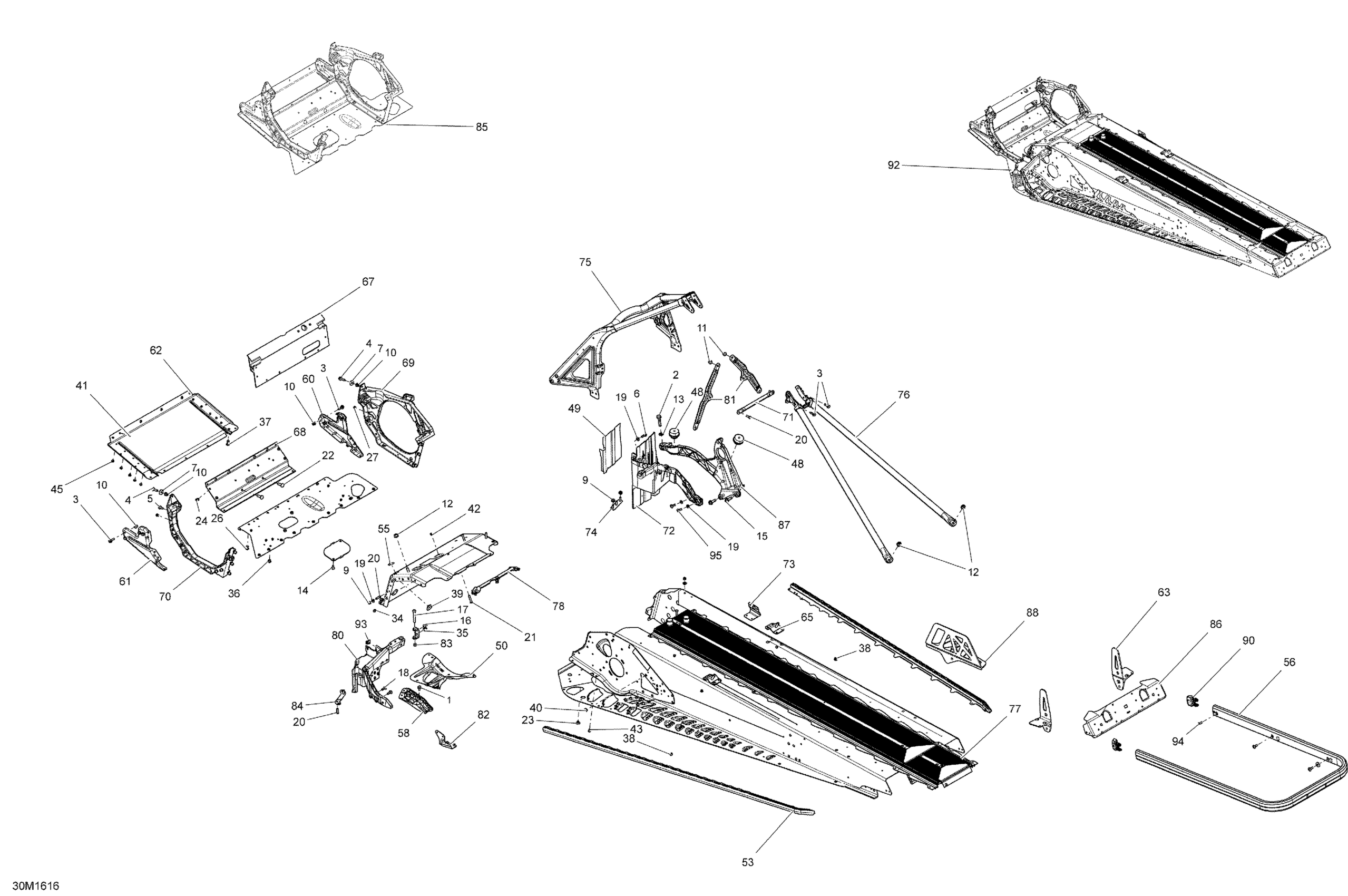

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 Frame Diagram
