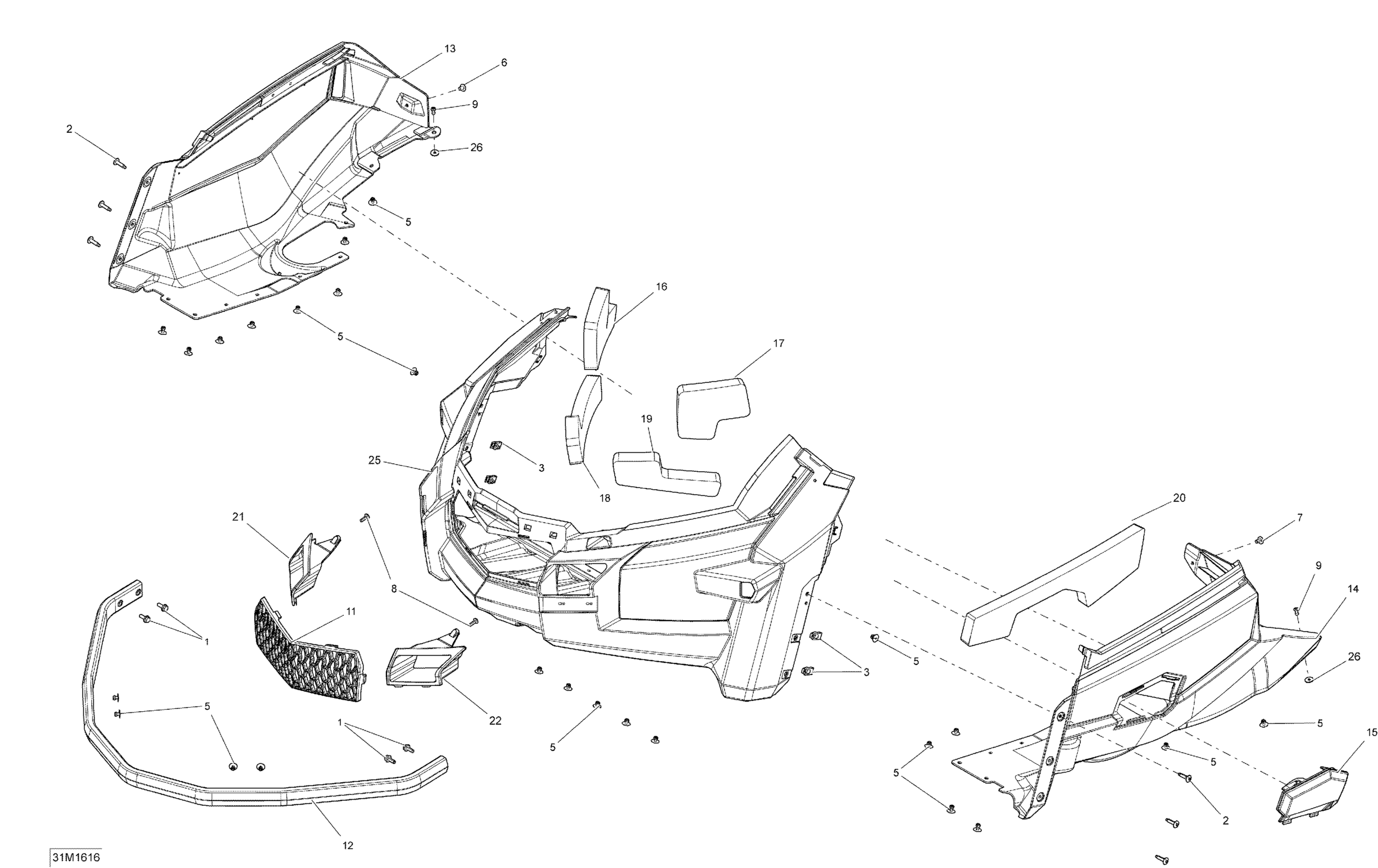

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 Bottom Pan Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Torx Screw M6 X 25

250000618

$4.28

3

Panel Nut M6 X 1.0

250100198

$1.73

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

Torx-truss M/s M6 X 10

250000995

$3.61

7

Torx Truss Screw M6 X 12

250000767

$1.66

8

Torx Screw K50 X 16

250000720

$1.39

9

Pop Rivet 3/16"

390402300

$0.75

11

Botton Pan Grille

502006887

$25.35

12

Black Front Bumper

502007121

$139.97

13

Black RH Bottom Pan

502006965

$77.99

14

Black LH Bottom Pan

502006966

$65.99

15

Black Bottom Pan Door

502006970

$18.43

16

RH Upper Bottom Pan Foam

502007204

$16.89

17

LH Upper Bottom Pan Foam

502007205

$16.89

18

RH Lower Bottom Pan Foam

502007206

$16.12

19

LH Lower Bottom Pan Foam

502007207

$16.12

20

LH Bottom Pan Foam

502007208

$16.12

21

RH Air Inlet

502007127

$10.20

22

LH Air Inlet

502007128

$10.20

25

Bottom Pan

502007362

$177.66

26

Washer

517124300

$0.16
