Description

Price

1

Socket Screw M8 X 25

205082554

$2.19

2

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.99

3

Socket Set Screw M6 X 8

206260844

$1.49

4

Hex. Screw M10 X 1.5 X 50

207005044

$3.89

5

Hex. Flange Screw M8 X 35

250000986

$2.19

7

Hex. Flange Screw M6 X 25

207662556

$4.49

8

Hex. Flange Screw M6 X 70

207667056

$4.49

9

Hex. Flange Screw M8 X 25

207682534

$2.19

10

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

11

Hex. Flange Screw M8 X 40

207684044

$1.49

12

Phillips Screw M6 X 25

208562531

$2.19

13

Hex Screw M10 x 100

230100054

$6.59

14

Hexagonal Nut M6

232061404

$1.49

15

Elastic Stop Nut M6

232561434

$1.99

16

Hex. Elastic Stop Nut M8

232581414

$1.49

17

Washer

503191910

$2.39

18

Flange Elastic Nut M10

233201466

$3.29

20

Hex. Flange Elastic Nut M6

233261466

$2.09

21

Elastic Flange Nut M8

233281466

$1.49

22

Elastic Locking Nut M10 X 1.5

233601416

$1.69

23

Elastic Locking Nut M10

233601466

$2.19

24

Flat Washer M5

234051410

$1.49

25

Conical Spring Washer 10 mm

234201474

$1.69

26

Hex. Screw S.Grip M10 X 55

250000605

$8.29

28

Torx Screw M5 X 14

250000742

$1.49

29

Flat Washer 8 mm

250200128

$4.49

31

Flat Washer

250200143

$3.29

32

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

33

Pop Rivet 3/16"

293150013

$1.49

34

E-Circlip

293370013

$1.49

35

Circlip

293370068

$1.49

36

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

Grease Fitting

408200700

$3.59

39

Bushing

414936000

$13.99

40

Retaining Ring

415129371

$12.49

41

Retaining Ring

415129780

$16.49

42

Upper Axle, Pivot Arm

503144300

$11.65

43

Retaining Ring

503168800

$15.49

44

Urethane Bushing

503189117

$8.19

45

Washer | 7415/7416. 7417/7418.

503189148

$2.89

46

Pivot Arm Axle

503189156

$21.99

47

Washer

503189157

$3.39

48

Bushing

503189271

$13.99

49

Bushing | Includes 240d to 240d1

503189282

$4.34

50

Bushing

503189324

$14.15

51

Block Guide

503189488

$41.99

52

Ball Bearing | Package-STD

503190396

$9.49

54

Rear Wheel Spacer

503190428

$8.29

55

Rear Axle

503190429

$61.99

56

Washer

503190432

$14.49

57

Labyrinth Seal

503190434

$6.19

58

Rubber Stopper

503190576

$13.49

59

Axle Bar (Long)

503190643

$17.49

61

Spring Support Kit

861805547

$10.99

63

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

64

Spring Support Kit

861805547

$10.99

65

RH Spring Cam

503191190

$15.99

66

Pivot Arm | Includes 3000j to 3000j3

503191209

$129.99

67

Upper Shaft

503191215

$39.99

68

Center Bushing

503191259

$11.99

69

Axle Strap

503191260

$31.99

70

Bushing

503191262

$15.79

71

Washer

503191273

$1.49

74

Rubber Stopper

503191291

$19.99

75

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

77

Swivel Bushing

503191555

$7.83

78

Extended Bushing

503191556

$7.83

79

LH Cam Adjuster

503191565

$16.99

80

RH Cam Adjuster

503191566

$16.99

81

Cam Axle

503191608

$17.99

82

Black Slider, 154"

503192618

$34.99

86

Washer

503191651

$8.49

87

LH Spring Cam

503191668

$12.99

88

Rear Spacer, Long

503191736

$18.49

89

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

91

Front Arm | Includes 2000a to 2000b

503191752

$370.99

92

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

93

Link Rod

503191765

$18.49

94

Wheel Cup M6

503191820

$5.09

95

Ball Bearing

503193548

$17.99

98

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

102

Rocker

503192211

$85.99

105

Black, RH Spring Square

503193159

$81.99

107

Black, LH Spring Square

503193158

$81.99

109

Spring

503194624

$31.99

111

Stopper Strap

503192360

$21.99

112

LH Block

503192426

$16.99

113

RH Block

503192427

$16.99

114

Compression Spring

503192436

$39.99

115

Rode

503192437

$6.29

116

Handle

503192438

$5.09

117

Bolt M8 X 248mm

503192440

$31.99

118

Washer

503192494

$3.29

119

Washer

503192496

$1.49

120

Tensioner

503192583

$8.49

121

LH Protector

503192609

$28.99

122

RH Protector

503192610

$28.99

123

Black, Wheel Ass'y, 100 mm

503192611

$33.99

124

Plate

503192612

$14.99

125

Axle Strap

503192613

$37.99

126

Front Wheel Axle

503192644

$159.99

127

Runner Pivot | Includes 100c to 100c3

503192647

$56.99

128

Spacer

503196943

$11.49

129

Black, Wheel Cap

503192771

$2.49

130

Bushing

503193037

$16.18

132

Rear Shock HPG SEAL

503193191

$248.99

134

Bolt M10 X 251MM

503193227

$17.49

135

Spacer

503193250

$16.99

136

Screw M8 X 90

503193372

$4.49

137

Black, LH Pivot Support Long

503195760

$91.99

137

Black, RH Pivot Support Long

503195759

$91.99

138

Pivot Axle

503193435

$41.99

140

Casted Support

503193894

$16.99

141

Machined Rail | Includes 10a to 10b

503193958

$309.99

142

Bushing

572080700

$17.39

143

Bolt M8, Short

732601197

$15.99

144

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.49

145

Hex. Cap Screw M6 X 30

207063054

$6.49

146

Socket Head Screw M10 X 35

205503554

$7.69

147

Socket Head Screw M10 X 35

205503554

$7.69

148

Bushing

503191552

$5.93

160

Center Shock

503192266

$164.49

161

Adjustment Cam

505073625

$13.49

162

Black, Spring 242MM

503191880

$69.99

163

Protector

503193663

$38.99

164

Spring Guide

503191872

$2.39

165

Spring Stopper

706200881

$13.49

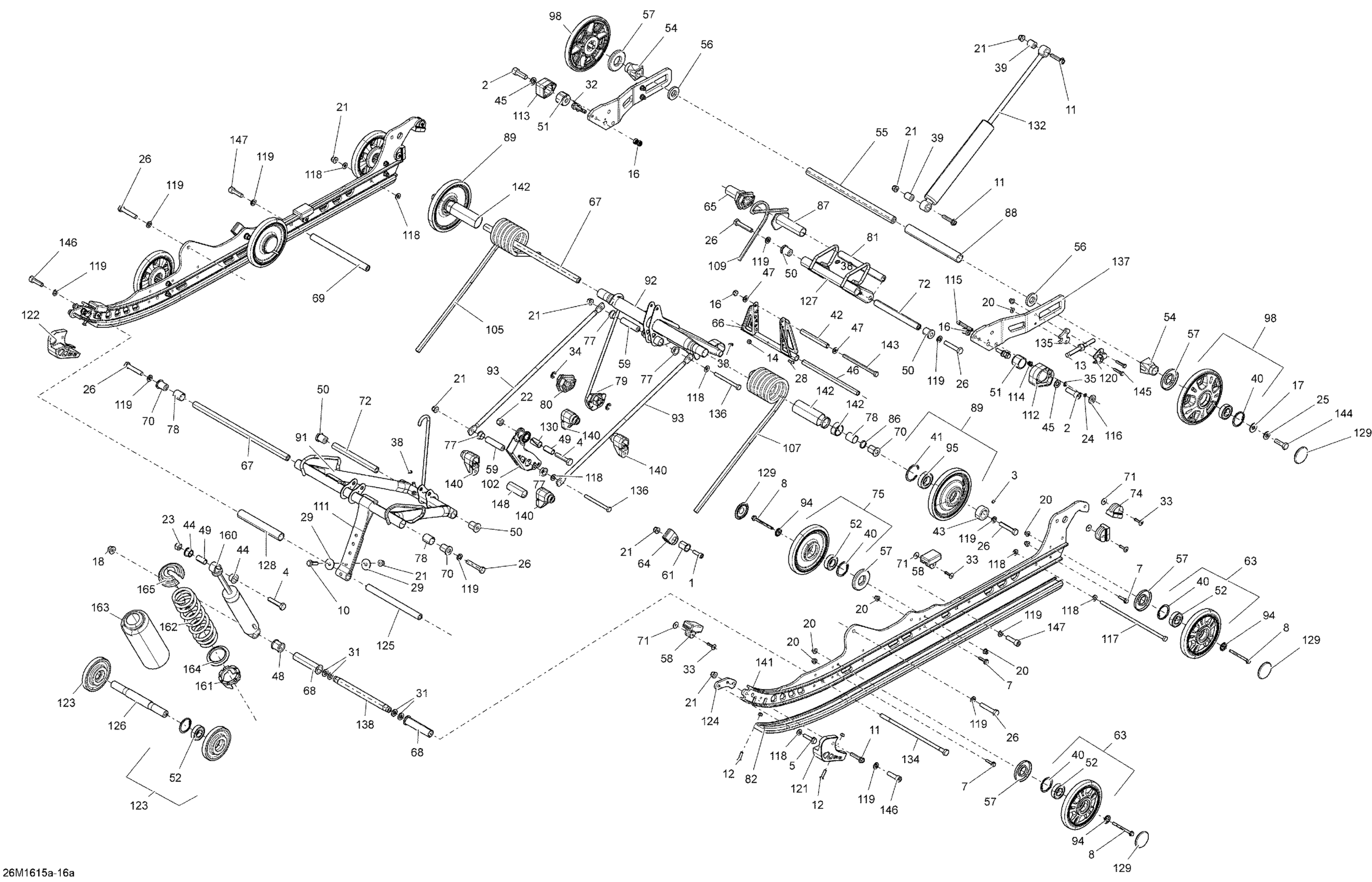

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 Rear Suspension - Package LT Diagram
