Description

Price

1

Hair Pin

114045200

$11.49

2

Socket Screw M5 X 25

205052544

$1.69

4

Elastic Stop Nut M5

232551414

$1.49

5

Flat Washer M5

234051410

$1.49

6

Torx Screw M6 X 30

250000580

$6.19

7

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.09

8

Torx Screw M5 X 14

250000742

$1.49

9

Lock Washer 8 mm

250200009

$2.19

10

Conical Spring Washer M14

250200144

$4.49

11

Spring Pin M3 X 30

250400063

$2.19

12

Pop Rivet 3/16"

293150103

$1.49

16

O-Ring

293300185

$1.49

17

Circlip

293370037

$3.29

18

Circlip

293370049

$5.09

19

Circlip

293370065

$1.49

22

Avex Rivet

390909200

$1.49

24

Pulley Roller

417127016

$25.99

25

Washer

417127155

$8.39

26

Calibration Ass'y

415129604

$22.49

27

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

28

Release Spring

417127344

$46.99

29

Fixe Flange Ass'y | Includes 100a to 100f

417127351

$349.99

30

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$164.99

31

Cam Ass'y | Includes 100m to 100q

417127391

$164.99

32

Bushing

417222758

$22.49

33

Roller Axle

417223257

$7.09

34

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$46.99

35

Thrust Washer

417223255

$2.09

36

Ramp Axle

417223694

$4.99

37

Seat Spring

417223752

$15.49

38

Governor Cup Ass'y

417223865

$189.99

39

Fixed Flange Ass'y

417224091

$189.99

40

Slider Shoe

417223919

$3.99

41

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$209.99

42

Roller

417223767

$7.99

43

Ramp 716 Ass'y

417223508

$38.99

45

Spacer

417300265

$2.39

46

Side Protector

417300356

$14.99

47

Front Belt Guard Bracket

417300374

$25.99

48

Reinforcement

417300380

$7.49

49

Guide

417300381

$11.99

50

Belt Guard

417300382

$92.99

55

Pulley Drive Bolt

417300432

$42.99

58

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

61

Safety Belt Guard Decal

516005509

Unavailable

61

Decal English

516005503

Unavailable

65

Bracket

517281905

$18.49

66

Strength Washer

517302322

$12.99

67

Hex. Cap Screw M8 X 75

207287544

$5.29

68

Drive Belt

417300585

$154.99

69

Belt Gard Decal

516007493

$12.99

70

Clutch Spring

417223747

$17.49

71

Pivot Stud

417127294

$14.99

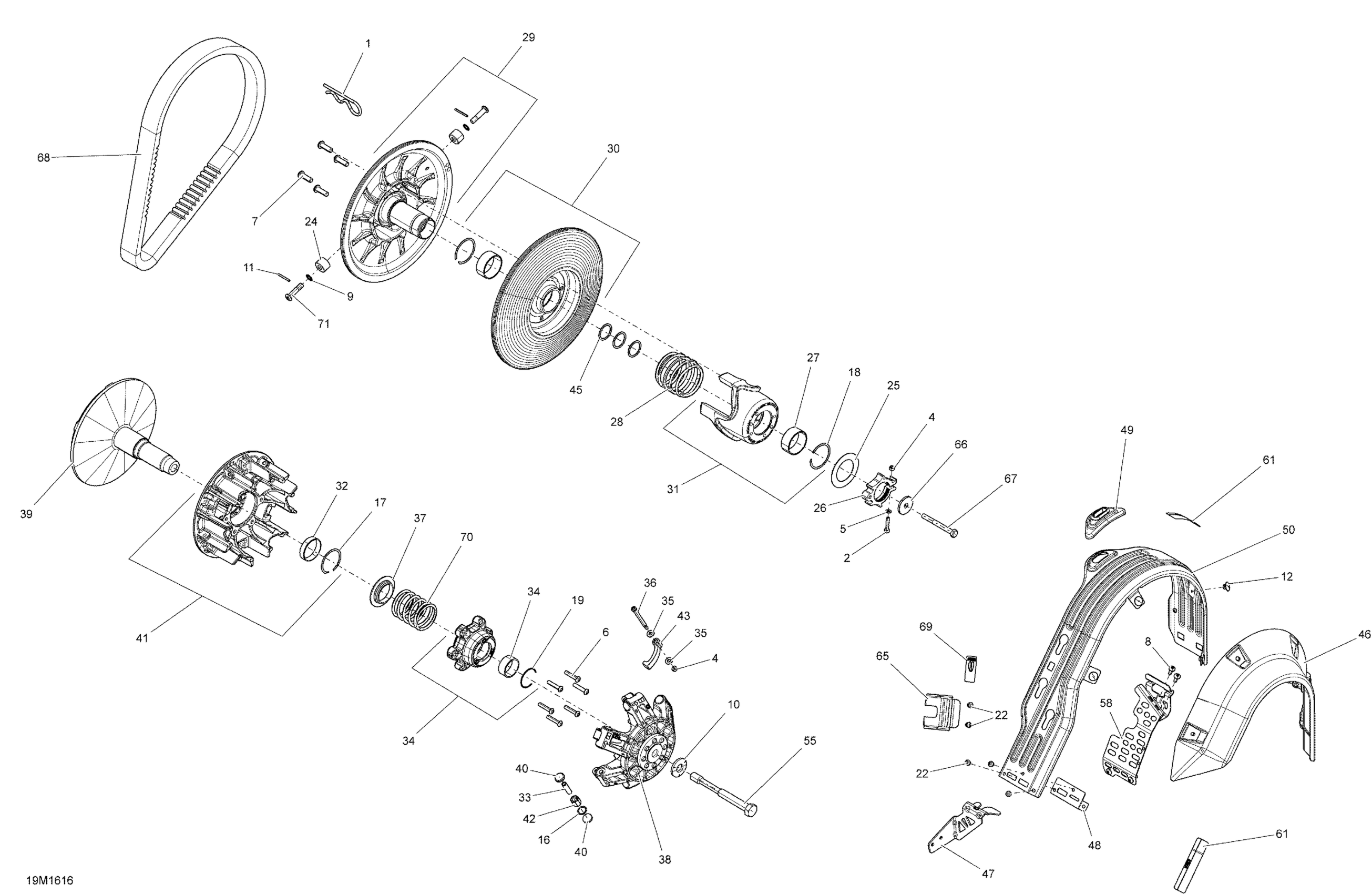

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 Pulley System Diagram
