Description

Price

1

Socket Head Screw M8 X 22

250000414

$2.06

2

Washer

250200111

$1.74

4

Avex Rivet

390909200

$0.29

5

Stavex Rivet

293150144

$0.77

6

Pop Rivet 3/16”

390910000

$0.48

8

Spring

415107100

$6.20

9

Rubber Bumper

514053654

$49.20

10

Lower Stopper

514054496

$26.12

11

Spring Bracket

514054522

$6.28

12

Exhaust Tube, PTO Side

514054625

$184.58

13

LH Heat Shield

514054645

$54.58

14

Exhaust Manifold

514054673

$69.20

15

Exhaust Tube, MAG Side

514054731

$184.58

16

Upper Stopper

514054737

$11.58

17

Reflective Sheet

514054745

$10.63

18

Reflective Sheet

514054780

$6.31

19

Exhaust Gasket

514054807

$15.35

20

Reflective Sheet

514054820

$6.31

21

Reflective Sheet

514054829

$5.25

22

Reflective Sheet

514054830

$5.25

23

Spring Bracket

514055030

$10.55

24

Spring Bracket

514055037

$10.55

25

Gasket

514055112

$5.86

26

RH Heat Shield

514055325

$54.58

27

Muffler Ass'y | Includes 400 to 400h

514055327

Unavailable

29

Flat Washer

517225900

$0.17

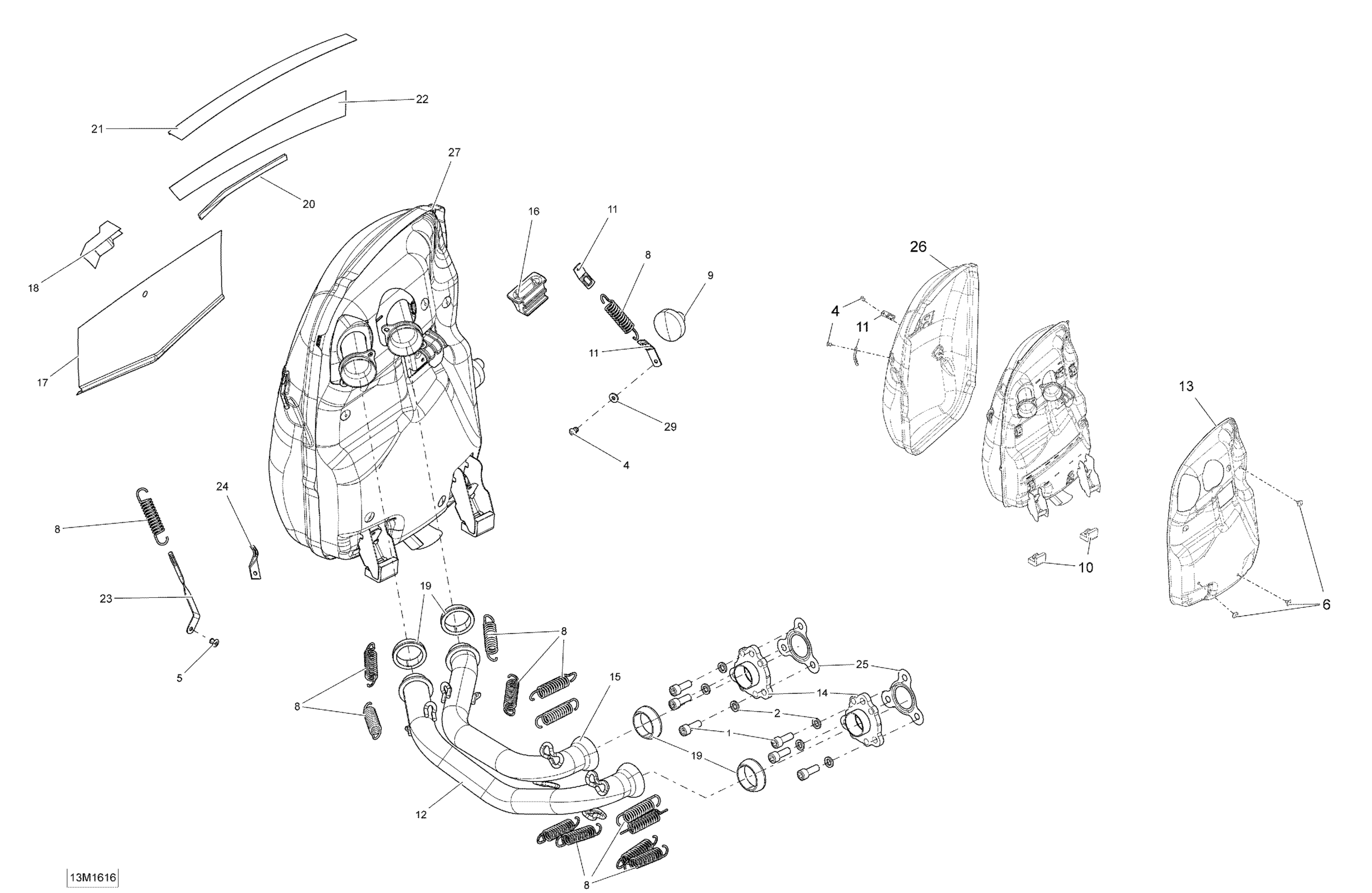

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 Exhaust System - 600 ACE Diagram

Muffler Ass'y | Includes 400 to 400h
