Description

Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.19

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

5

Hex. Flange Screw M6 X 25

207662544

$1.49

6

Flat Washer

224061121

$1.49

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

8

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.49

10

Oetiker Gear Clamp

293650025

$3.19

11

Crimp Clamp, 15.3-706R

293650047

$3.39

12

Crimp Clamp

293650099

$4.39

13

Oetiker Clamp

293650141

$4.39

14

Oetiker Gear Clamp

293650165

$5.49

15

Grommet

709000582

$4.79

18

Bushing

293900100

$7.79

19

Avex Rivet

390909100

$1.49

21

Avex Rivet

390909200

$1.49

25

Insert

293450275

$12.99

27

Radiator Pressure Cap

509000180

$14.99

28

T-Fitting

509000372

$10.99

29

Oeticker Gear Clamp, 25.6-706R

509000442

$5.29

30

Aba Gear Clamp, 26-38 MM

509000443

$12.49

31

Radiator

509000972

$319.99

32

T-Fitting

509000510

$13.49

33

Oetiker Gear Clamp, 36.5-706R

509000529

$10.99

35

Radiator Hose

509000560

$19.99

36

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

Unavailable

37

Radiator Hose

509000617

$16.49

38

Radiator Hose

509000618

$16.49

39

Hose

509000634

$24.49

40

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$244.99

41

Front Bracket

509000694

$10.99

42

Radiator Return Hose

509001062

$16.99

45

Support

509000715

$11.99

46

Clamp

509000735

$7.69

47

Support

509000772

$19.99

48

Hose

509000775

$11.99

50

Water Pipe

509000800

$114.99

51

Filling Hose

509001063

$15.49

59

Breather Hose

509000860

$25.99

64

Cooling Tank

509000875

$94.99

67

DEFLECTOR - Call your local BRP dealership

509000892

Unavailable

69

Radiator Hose

509000921

$13.99

70

Gear Clamp

509000931

$14.49

71

Engine Outlet Hose

509000932

$21.99

74

Radiator Support

509000988

$184.99

75

Warning Decal

516005904

Unavailable

76

Grommet

709200285

$9.89

78

Protector Tube 32 Mm 1000Mm Long

219704421

$27.99

79

Neoprene Seal 3000Mm Long

219704371

$52.99

80

Was 271000110 Protection Trim

219704353

$16.49

81

Hex. Flange Screw M6 X 16

207661654

$2.19

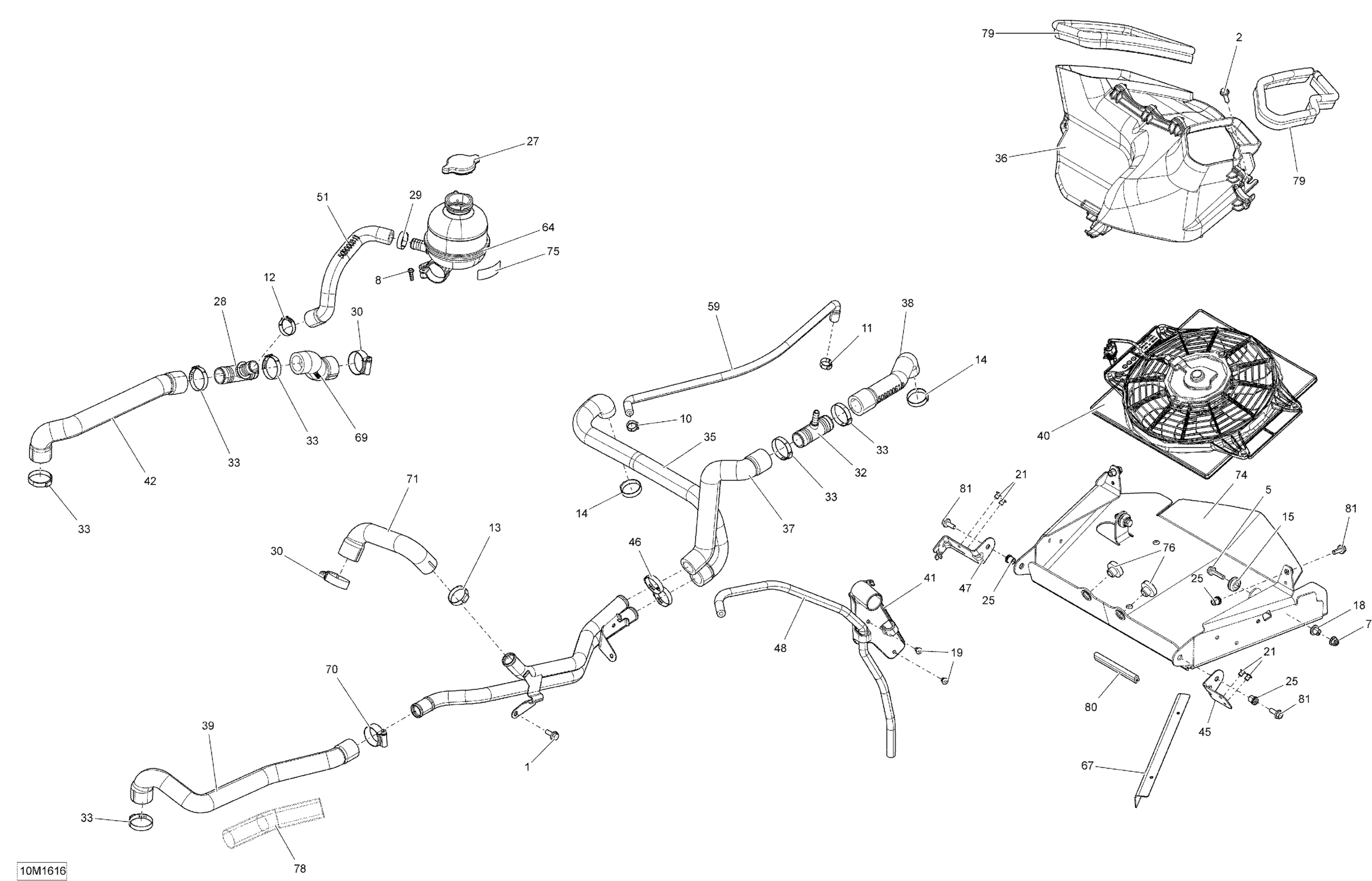

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 Cooling System Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Screw M6 X 20, Scotch Grip

Hex. Flange Screw M6 X 25

Flat Washer

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw K50 X 2.24 X 16

Oetiker Gear Clamp

Crimp Clamp, 15.3-706R

Crimp Clamp

Oetiker Clamp

Oetiker Gear Clamp

Grommet

Bushing

Avex Rivet

Avex Rivet

Insert

Radiator Pressure Cap

T-Fitting

Oeticker Gear Clamp, 25.6-706R

Aba Gear Clamp, 26-38 MM

Radiator

T-Fitting

Oetiker Gear Clamp, 36.5-706R

Radiator Hose

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

Radiator Hose

Radiator Hose

Hose

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

Front Bracket

Radiator Return Hose

Support

Clamp

Support

Hose

Water Pipe

Filling Hose

Breather Hose

Cooling Tank

DEFLECTOR - Call your local BRP dealership

Radiator Hose

Gear Clamp

Engine Outlet Hose

Radiator Support

Warning Decal

Grommet

Protector Tube 32 Mm 1000Mm Long

Neoprene Seal 3000Mm Long

Was 271000110 Protection Trim

Hex. Flange Screw M6 X 16
