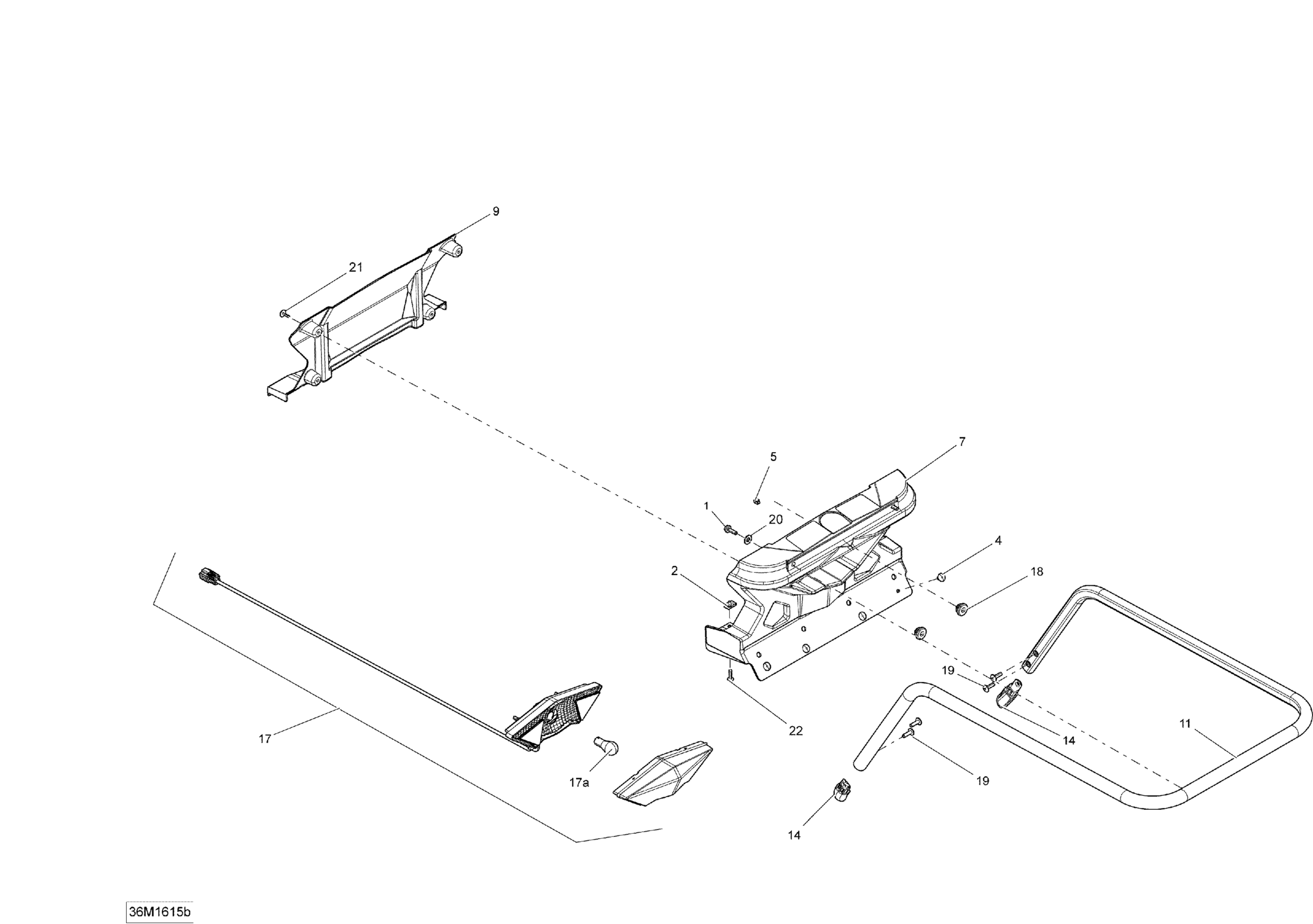

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 Luggage Rack - Package LT Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.66

2

Panel Nut M5 X 0.8

250000958

$3.48

4

Pop Rivet 3/16"

293150103

$0.52

5

Tie Wrap 142 mm

293750002

$0.88

7

Rear Light Support

511000625

$45.49

9

Rear Cover Support | Not Shown

511000701

$34.30

11

Luggage Rack | LT

511000706

$114.15

14

Black Cap

520000899

$12.31

17

Rear Light | Includes 200 to 200a

520001559

$94.75

17a

Bulb

520000758

$7.49

18

Stopper Rubber

705014429

$6.09

19

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

20

Flat Washer 6 mm

234062410

$0.64

21

Screw M4 X 16

250000725

$2.87

22

Torx Screw M5 X 20

250000724

$1.39
