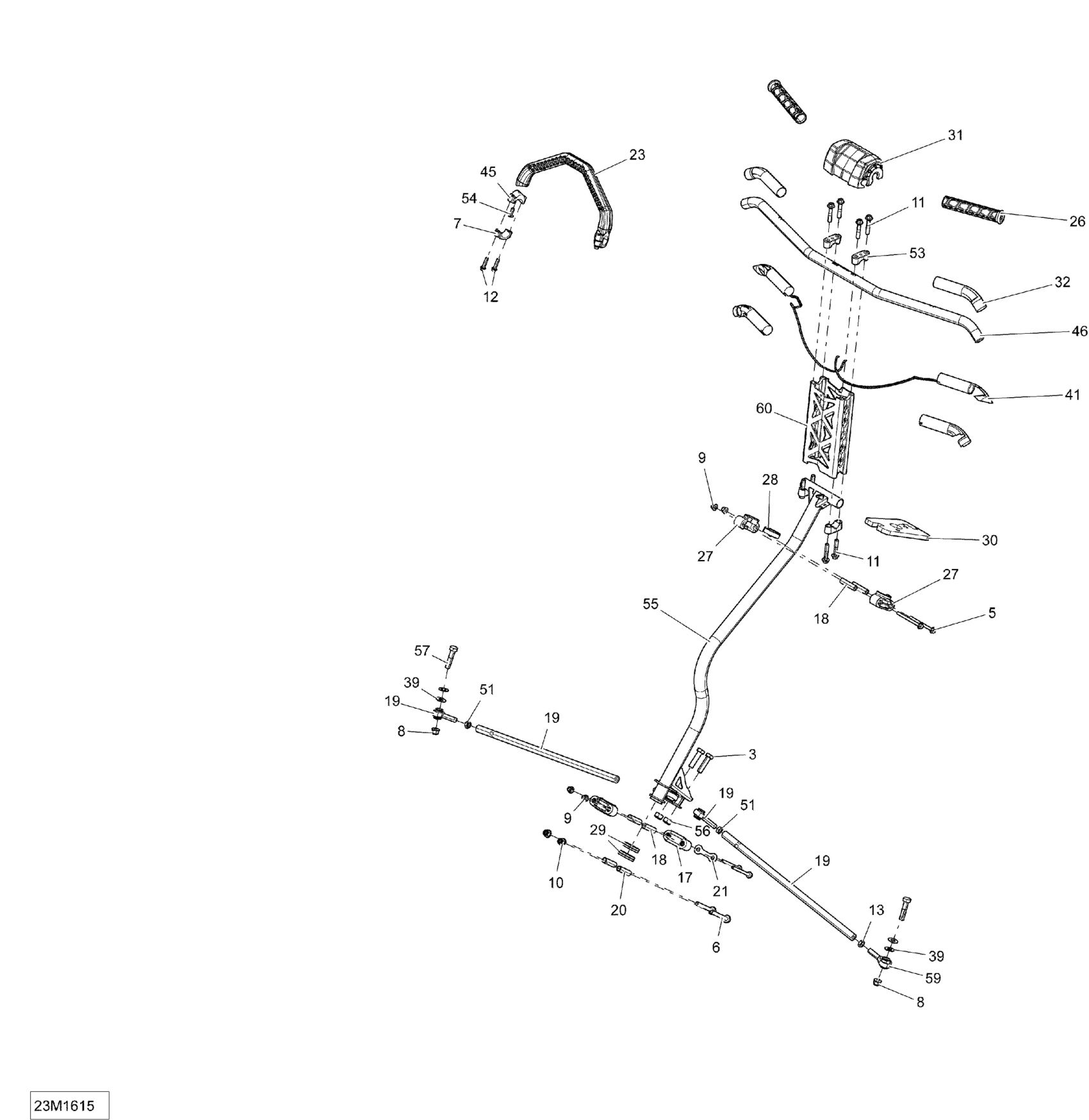

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 Steering Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

4

Hex. Screw M10 X 45

207004544

$1.60

5

Hex. Flange Screw M6 X 70

207667056

$3.61

6

Hex. Flange Screw M8 x 65

207686534

$2.00

7

Clamps | Includes 75a to 75b

719000049

$22.36

8

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Hex. Flange Screw M8 X 40

250000352

$3.16

11

Hex. Flange Screw M8 X 40

250000352

$3.16

12

Hex. Flange Screw M6 X 25

250000447

$2.00

13

LH Threaded Hex. Jam Nut M10

250100016

$0.70

17

Lower Half-Housing

506152217

$5.40

2

Housing Bushing

506152297

$9.93

19

ROD_LINK - Call your local BRP dealership

506152377

Unavailable

20

Lower Housing Bushing

506152388

$14.81

21

Stopper Plate

506152389

$9.93

23

Moulding Strap

506152460

$69.37

26

Grip

506152486

$14.27

27

Upper Half-Housing

506152508

$7.18

28

Upper Anti-Vibration Gasket

506152509

$4.39

29

Lower Vibration Ring

506152518

$4.39

30

Bushing

506152521

$13.19

31

Deep Black, Steering Pad

506152541

$41.01

32

Isolant

506152611

$7.57

39

Washer

506152582

$4.28

41

Heating Element 28 WATT This part replaces 506152602.

506152603

$42.51

41

HEATED FILM - Call your local BRP dealership

506152804

Unavailable

45

Black Support Plate

506152703

$13.54

46

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

51

RH Threaded Hex. Jam Nut M10

732610010

$0.70

53

Steering Support | Includes 40 to 40a

506152751

$10.09

53

Steering Support | Model-Extreme

548873704

$12.31

54

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

55

Steering Column

506152963

$276.84

56

Elastic Locking Nut M10

233601466

$1.74

59

RH Threaded Ball Joint

506152019

$38.78

59

LH Thread Ball Joint

506152081

$38.78

60

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.54
