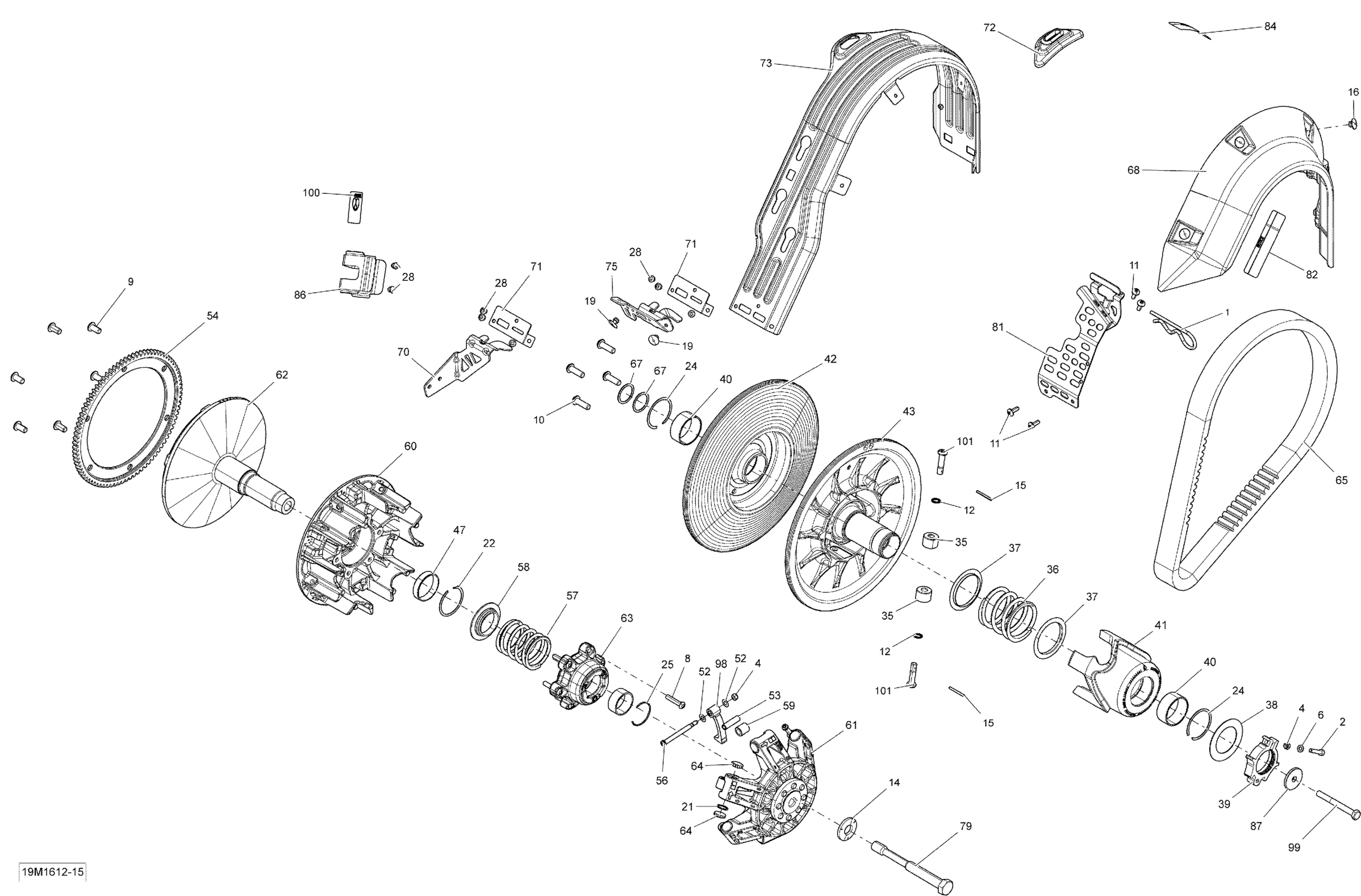

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 Pulley System Diagram

#

Description
Price

1

Hair Pin

114045200

$10.37

2

Socket Screw M5 X 25

205052544

$1.34

4

Elastic Stop Nut M5

232551414

$0.72

6

Flat Washer M5

234051410

$0.44

8

Torx Screw M6 X 30

250000580

$4.87

9

Torx Button Head Screw M8 X 16

250000706

$1.91

10

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

11

Torx Screw M5 X 14

250000742

$1.20

12

Lock Washer 8 mm

250200009

$2.00

14

Conical Spring Washer M14

250200144

$3.63

15

Spring Pin M3 X 30

250400063

$1.74

16

Pop Rivet 3/16"

293150103

$0.52

19

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

21

O-Ring

293300185

$0.93

22

Circlip

293370037

$2.93

24

Circlip

293370049

$4.57

25

Circlip

293370065

$0.93

28

Avex Rivet

390909200

$0.28

35

Pulley Roller

417127016

$22.36

36

Spring

417127061

$44.00

37

Swivel Abutment

417127116

$7.82

38

Washer

417127155

$7.79

39

Calibration Ass'y

415129604

$22.49

40

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

41

Cam Ass'y | Includes 100c to 100c3

417127367

$148.48

42

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

43

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$319.37

47

Bushing

417222758

$20.12

52

Thrust Washer

417223255

$1.91

53

Roller Axle

417223257

$6.37

54

Crown Gear Launch

417223476

$156.69

56

Ramp Axle

417223694

$4.46

57

Spring Clutch

417223748

$14.37

58

Seat Spring

417223752

$13.03

59

Roller

417223767

$7.15

60

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$188.03

61

Governor Cup Ass'y

417223865

$170.12

62

FIX FLANGE ASS'Y - Call your local BRP dealership This part replaces 417223870.

417223870

Unavailable

63

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.49

64

Slider Shoe

417223919

$3.57

65

Drive Belt

417300585

$138.03

67

Spacer

417300265

$2.06

68

Side Protector

417300356

$12.85

70

Front Belt Guard Bracket

417300374

$23.10

71

Reinforcement

417300380

$5.01

72

Guide

417300381

$8.73

73

Belt Guard

417300382

$82.81

75

Front Belt Guard Bracket

417300386

$13.73

79

Pulley Drive Bolt

417300432

$41.76

80

CVT Air Duct

417300439

$26.84

81

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$28.33

82

Decal English

516005503

Unavailable

84

Safety Belt Guard Decal

516005509

Unavailable

86

Bracket

517281905

$14.90

87

Strength Washer

517302322

$10.76

98

Ramp 700 Ass'y This part replaces 417223557.

417223604

$62.66

99

Hex. Cap Screw M8 X 75

207287544

$4.24

100

Belt Gard Decal

516007493

$9.33

101

Pivot Stud

417127294

$13.18
