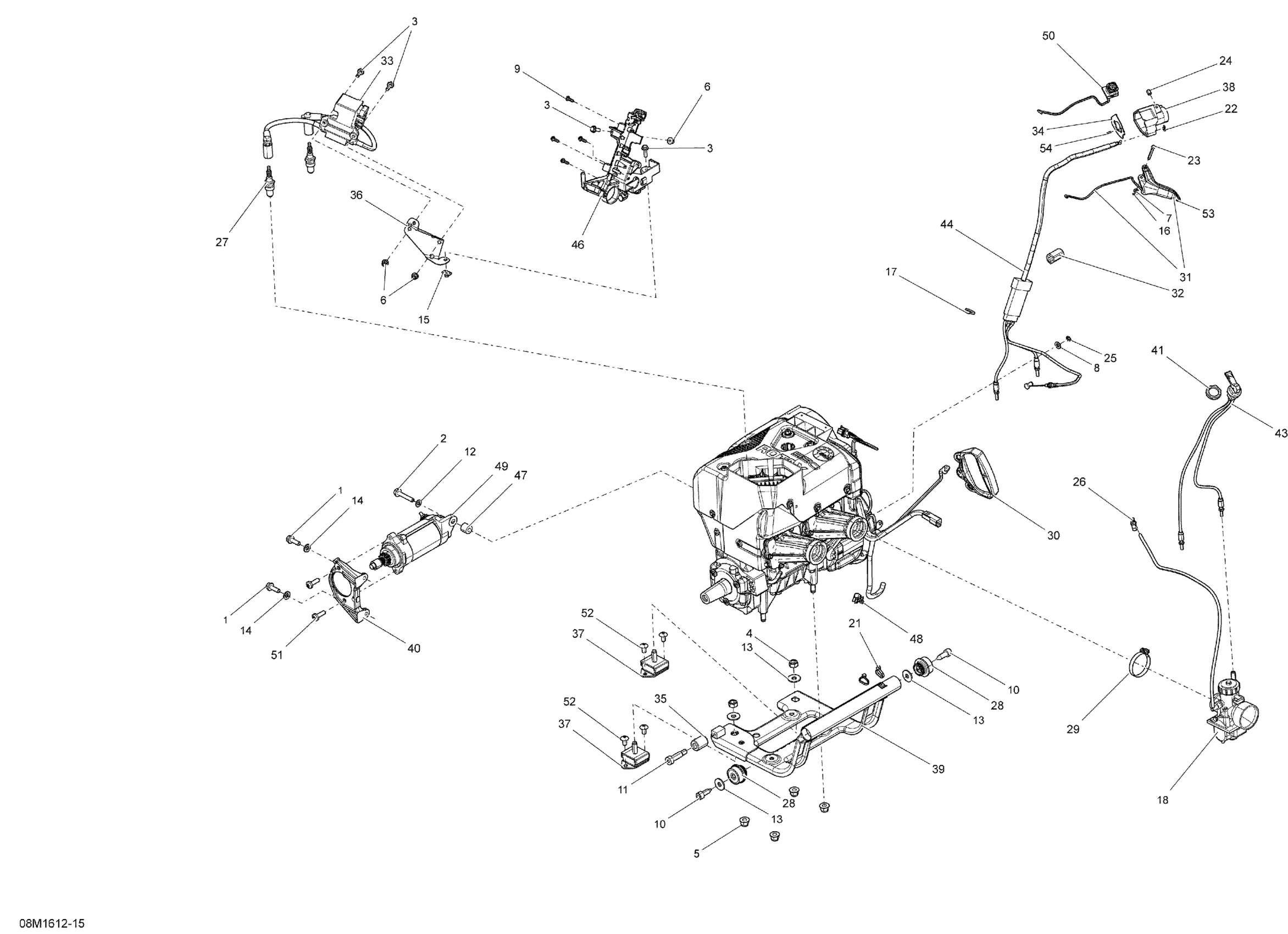

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 Engine Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

2

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Elastic Stop Nut M10

232500416

$1.56

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Flat Washer M5, Stainless

234051600

$0.64

8

Flat Washer 8 mm, Nylon

234081100

$1.00

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

10

Screw M10 X 30

250000094

$22.36

11

Socket Head Screw, Scotch Grip

250000463

$7.09

12

Flat Washer With Teflon 8 mm

250200008

$3.12

13

Flat Washer M10 | 4X4

250200014

$1.17

14

Conical Spring Washer M8

250200146

$0.83

15

Nut Welded, M6

293100003

$6.32

16

Circlip

293370050

$0.45

17

Tie Wrap 142 mm

293750002

$0.88

18

Carburetor VM30-219, PTO

403138814

$290.27

18

Carburetor VM30-218, MAG

403138813

$322.49

21

Tie-Rap 180 mm

414115200

$0.09

22

Circlip

414274500

$0.74

23

Lever Pin

414438700

$10.81

24

Socket Set Screw M8 X 10

414440800

$3.88

25

Circlip

414753500

$0.59

26

Male Connector

414814100

$2.12

27

Spark Plug NGK BR9ECS-5

512059552

$9.70

28

Rubber Mount

512059691

$43.25

29

Gemi Clamp | Not Shown

512059834

$10.21

30

Starter Grip

512060136

$14.10

31

Handle Ass'y | Includes 3820 to 3820a

512061251

$87.28

32

Protector

512060313

$9.03

33

Calibrated Module

512060324

$569.99

34

Plate

512060390

$9.03

35

Stopper

512060395

$17.13

36

Coils Support

512060460

$17.88

37

Rubber Mount

512060564

$38.78

38

Throttle Housing

512060603

$10.25

39

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$189.99

40

Support

512060656

$55.19

41

Plastic Nut

512060671

$0.96

43

Choke Cable

512060676

$90.27

44

Throttle Cable

512060885

$73.85

46

Coils Support

512060924

$9.03

47

Spacer

515176597

$13.18

48

Tie Rap Mount (screwable)

515176795

$4.96

49

Starter

515178473

$319.49

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

51

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

52

Torx Truss Screw M8 X 16

250000746

$2.78

53

Handle, 30 mm

572084501

$15.64

54

Torx Truss Screw M2 X 12

250000756

$6.07
