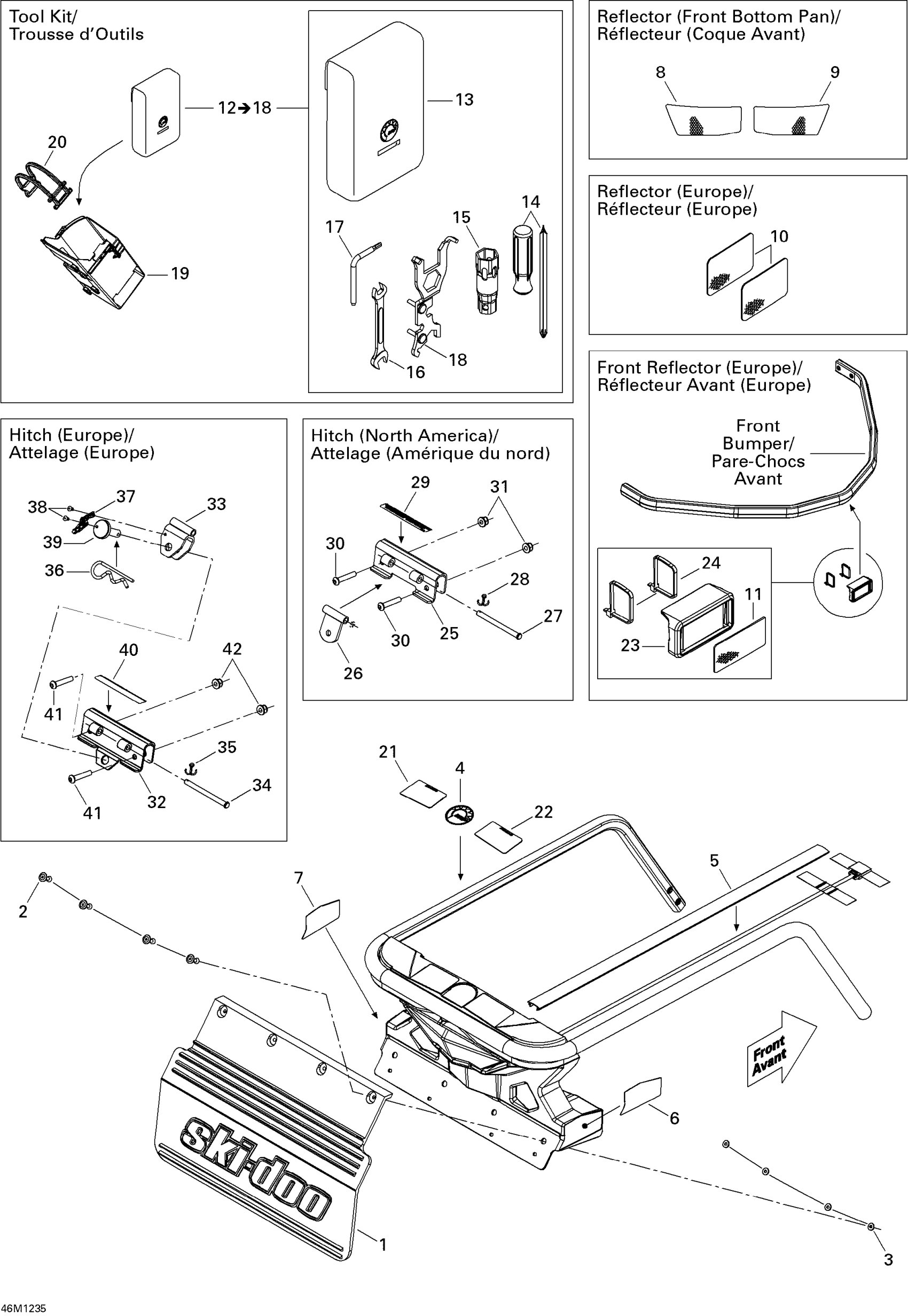

Ski-Doo Tundra LT 600ACE LFF, 2012 Utilities Diagram

#

Description
Price

1

Snow Guard

520000949

$82.99

2

Pop Rivet 3/16"

293150100

$1.08

3

Washer

517124300

$0.16

4

BRP Logo 48 mm

219903305

$14.27

5

Radiator Trim

520000829

$20.74

6

Red, RH Rear Reflector

520000881

$13.38

6

Yellow, RH Rear Reflector

520000883

$13.38

7

Red, LH Rear Reflector

520000880

$13.38

7

Yellow, LH Rear Reflector

520000882

$13.38

8

Yellow, RH Front Reflector

520000891

$13.38

9

Yellow, LH Front Reflector

520000892

$13.38

10

Amber, Reflector

520000271

$19.20

11

White, Reflector

415037900

$19.20

12

Tool Kit | Includes 16 To 22

529000066

$46.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

17

Spacing Tool

520001142

$10.99

18

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

19

Tool Kit Rack

520000894

$14.99

20

Latch

520000528

$6.60

21

LH WARNING DECAL, SECURITY - Call your local BRP dealership

516005043

Unavailable

22

RH Warning Decal, Security

516005044

Unavailable

23

Deep Black, Reflector Support

520000871

$5.29

24

Tie Rap 371 mm

293750018

$0.46

25

Support

511000768

$29.20

26

Hitch Plate Welded

511000521

$14.54

27

Lock Pin

511001451

$8.57

28

Cotter Pin

371800200

$0.51

29

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

30

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

31

Hex. Flange Elastic Nut M8

233281414

$1.14

32

Support

511000554

$18.43

33

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

34

Lock Pin

511001451

$8.57

35

Cotter Pin

371800200

$0.51

36

Hair Pin

114045200

$10.69

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Pop Rivet 5/32” | Model Europe

390404300

$0.31

39

Pin

511000555

$18.43

40

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

41

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

42

Hex. Flange Elastic Nut M8

233281414

$1.14
