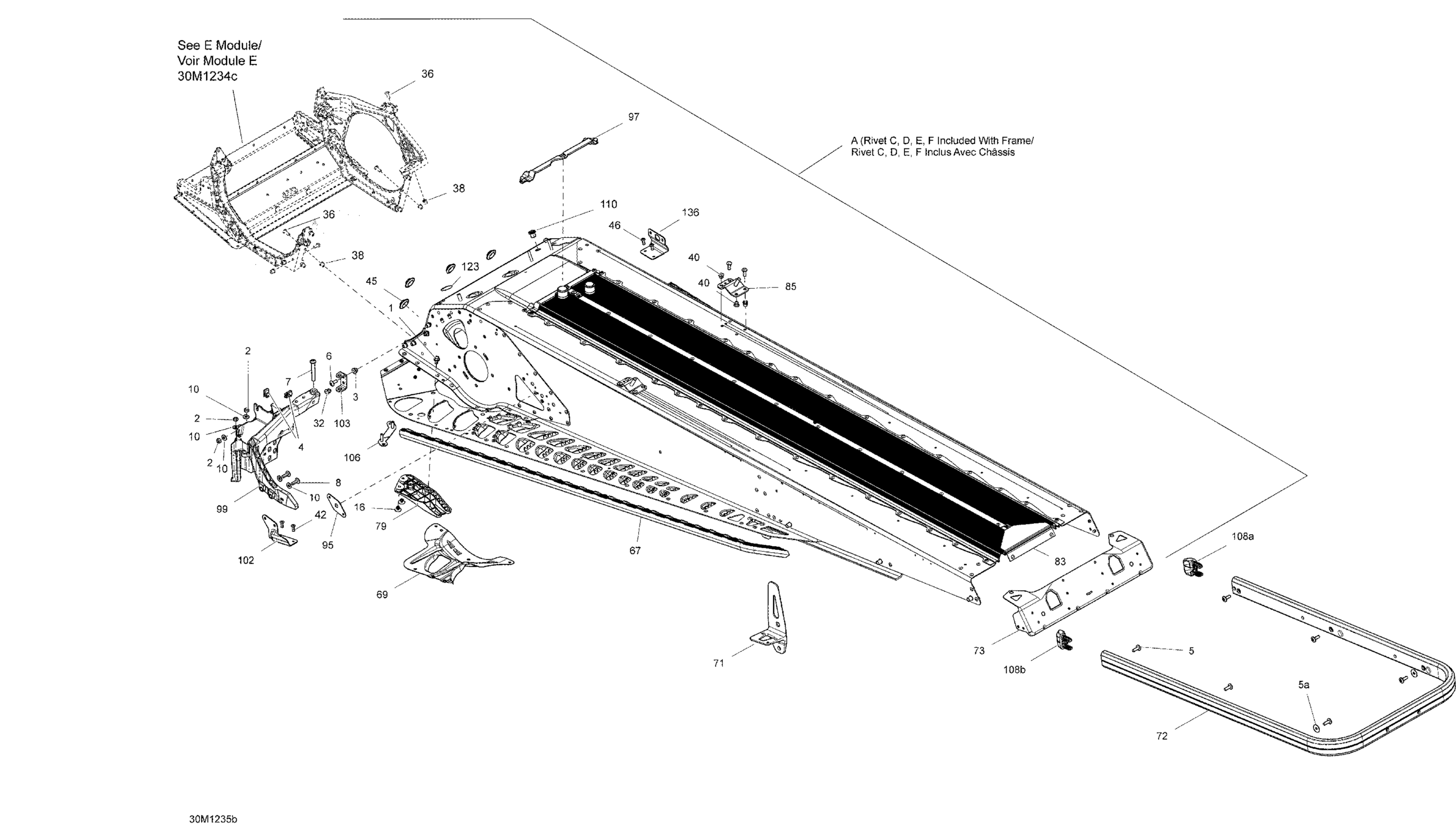

Ski-Doo Tundra LT 600ACE LFF, 2012 Frame 154" Diagram
#
1
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
2
Elastic Stop Nut M6
232561414
Unavailable
3
Hex. Flange Nut M6
233061414
Unavailable
4
Panel Nut M5 X 0.8
250000958
Unavailable
5
Torx Screw M6 X 1.0 X 18, Scotch Grip
250000779
Unavailable
6
Tork Screw M6 X 16
250000534
Unavailable
7
Torx Screw M8 X 55
250000535
Unavailable
8
Tork Screw M6 X 18
250000536
Unavailable
10
Flat Washer
250200039
Unavailable
32
Ornit Rivet 6,5 X 14.5
293150266
Unavailable
36
Hex. Flange Screw M6 X 20
207662044
Unavailable
38
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
45
Black, Plug
293730052
Unavailable
46
Pop Rivet 3/16"
390402300
Unavailable
67
RH ROLLER - Call your local BRP dealership
518325159
Unavailable
67
LH Roller | Includes 10bd to 10be
518325160
Unavailable
69
RH Reinforcement
518324874
Unavailable
69
LH Reinforcement
518324875
Unavailable
71
RH Slide Bracket
518325955
Unavailable
71
LH Slide Bracket
518325956
Unavailable
72
Clear Rear Bumper
518325579
Unavailable
73
Rear Cap
518327105
Unavailable
79
RH Deflector, Black Polypropylene
518325782
Unavailable
79
LH Deflector, Black Polypropylene
518325783
Unavailable
85
RH Rear Base
518325973
Unavailable
85
LH Rear Base | Includes 10v to 10x
518325974
Unavailable
97
Seal
518326656
Unavailable
99
LH Stirup
518326820
Unavailable
102
Support
518326960
Unavailable
103
U-Attach
518326961
Unavailable
106
Attach | Includes 10n to 10p
518326986
Unavailable
110
Insert
293450275
Unavailable
123
Adhesive Patch
518325560
Unavailable
136
RH Support | LT
518326482
Unavailable
108a
Full Moon RH Cap
520000711
Unavailable
108b
Full Moon LH Cap
520000712
Unavailable
5a
Flat Washer
224061201
Unavailable
A
FRAME TUNDRA 154 ACE - Call your local BRP dealership | LT
415130263
Unavailable
C
Avex Rivet
390909200
Unavailable
E
Stavex Rivet
293150144
Unavailable
F
Henrob Rivet
293150146
Unavailable
