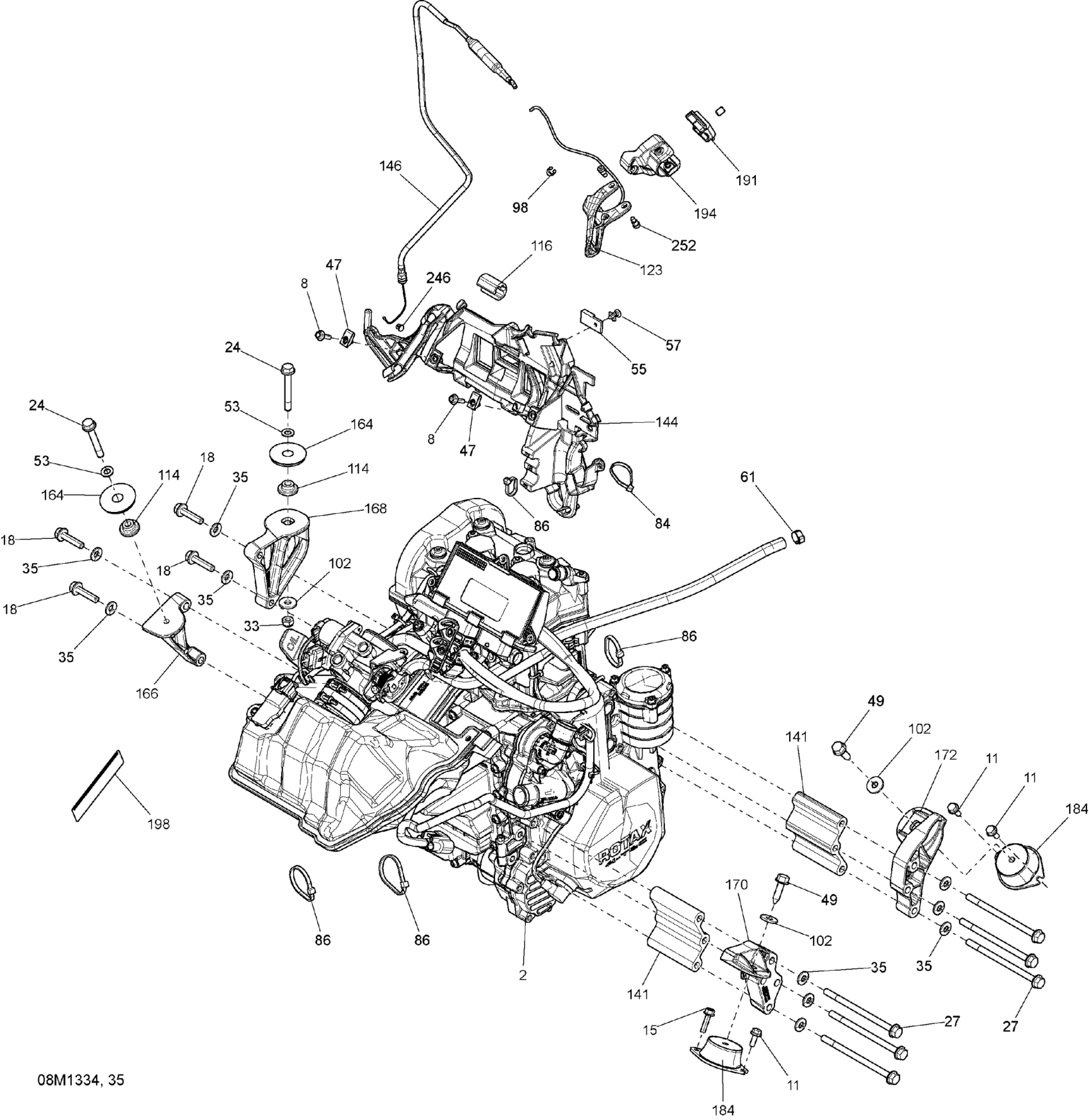

Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 Engine And Engine Support Diagram

#

Description
Price

2

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

Unavailable

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

15

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

18

Hex. Flange Screw M8 X 35

250000986

$1.74

24

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

27

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

33

Hex. Elastic Stop Nut M8

232581414

Unavailable

35

Conical Spring Washer M8

234281474

$1.25

47

Panel Nut M5 X 0.8

250000958

Unavailable

49

Cone Screw, M8 X 30

250000257

$1.72

53

Flat Washer With Teflon 8 mm

250200008

Unavailable

55

Clip

270000141

$8.33

57

Avdel Rivet

293150027

Unavailable

61

Oetiker Clamp

293650046

Unavailable

84

Tie Wrap 368 mm

293750008

$0.85

86

Tie-Rap 180 mm

414115200

$0.09

98

Circlip

414274500

Unavailable

102

Yellow, Washer

503183200

Unavailable

114

Spacer

512060285

$17.66

116

Protector

512060313

$9.31

123

Throttle Handle Ass'y

512061252

Unavailable

141

Shim

512060505

$42.28

144

MODULE SUPPORT - Call your local BRP dealership

512060509

$10.32

146

Throttle Cable

512060607

$77.66

164

Stopper

512061203

$12.52

166

Rear Support PTO

512061139

$23.82

168

Front Support PTO

512061140

$17.66

170

Rear Support MAG

512061142

$27.66

172

Front Support, MAG

512060663

$18.43

184

Rubber Mount

512060729

$69.97

191

Upper Housing

512060859

Unavailable

194

Lower Housing

512060860

Unavailable

198

Caution Decal, Oil Level

516005521

Unavailable

246

Cable Guide

707000434

Unavailable

252

Flange Screw

732601143

$4.02
