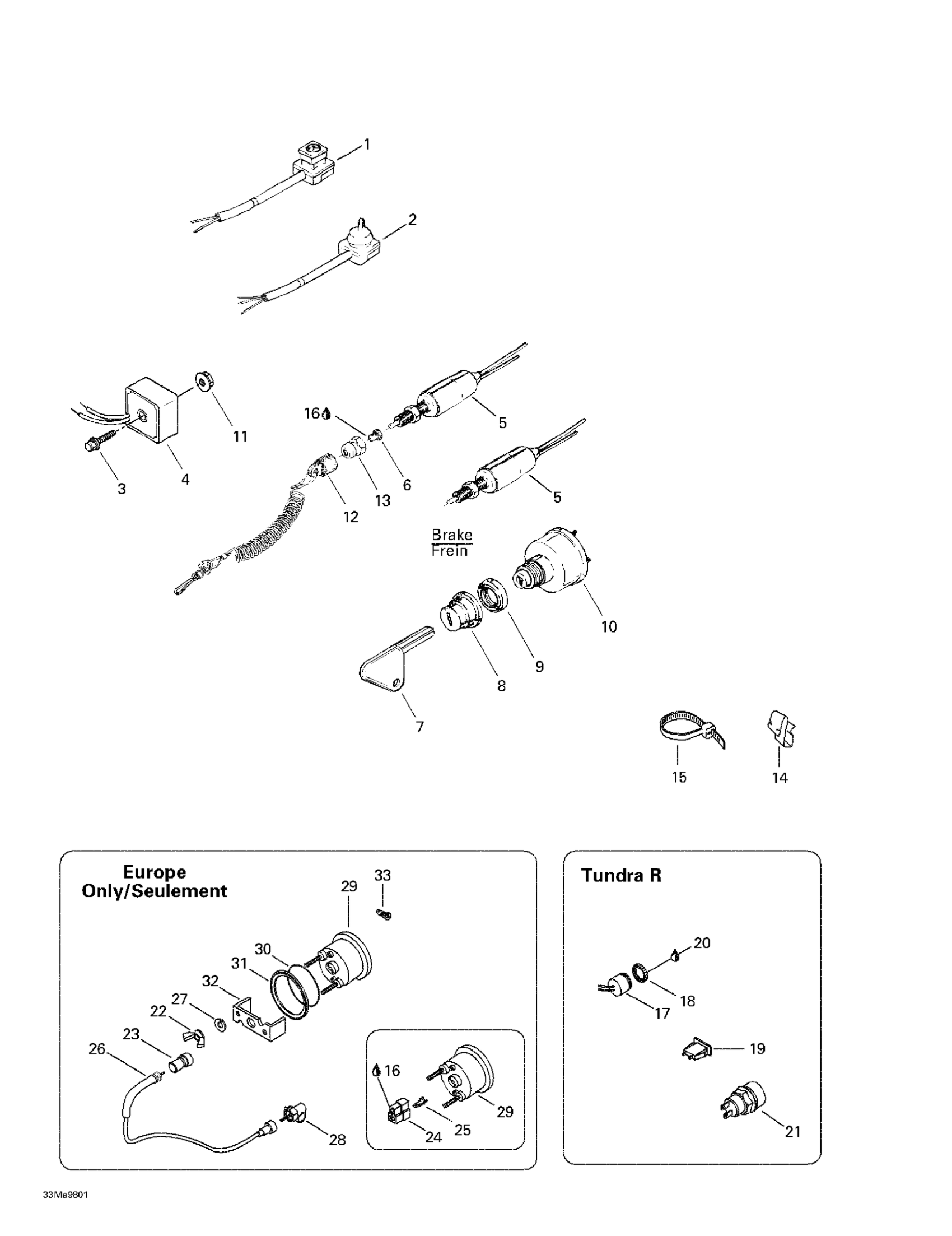

Ski-Doo Tundra II LT, 3270, 1998 Electrical System Diagram
#
Description
Price
1
Kill Switch
410209400
Unavailable
2
Dimmer Switch
410213000
Unavailable
4
VOLTAGE REGULATOR - Call your local BRP dealership
515163800
Unavailable
7
Blank Key
415129350
Unavailable
8
Switch Boot
570013700
Unavailable
10
IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.
410111200
Unavailable
11
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Clip
414095100
Unavailable
16
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
17
HORN - Call your local BRP dealership
515176035
Unavailable
20
Silicone Sealant 51388, 300 ml
296000309
Unavailable
21
Push Button
415130372
Unavailable
22
Wing Nut M5
414070300
Unavailable
23
Knob Ass'y (Europe) | Tundra R.
414487700
Unavailable
24
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
25
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
26
Speedometer Cable (Europe) | Tundra R.
414516500
Unavailable
28
Drive Angle (Europe) | Tundra R.
414143700
Unavailable
29
Speedometer (Europe) | Tundra R.
414682000
Unavailable
30
O-Ring | Formula S.
414187200
Unavailable
31
Plate | Formula S.
414187300
Unavailable
32
Case Holder | Formula S.
414187400
Unavailable
33
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
