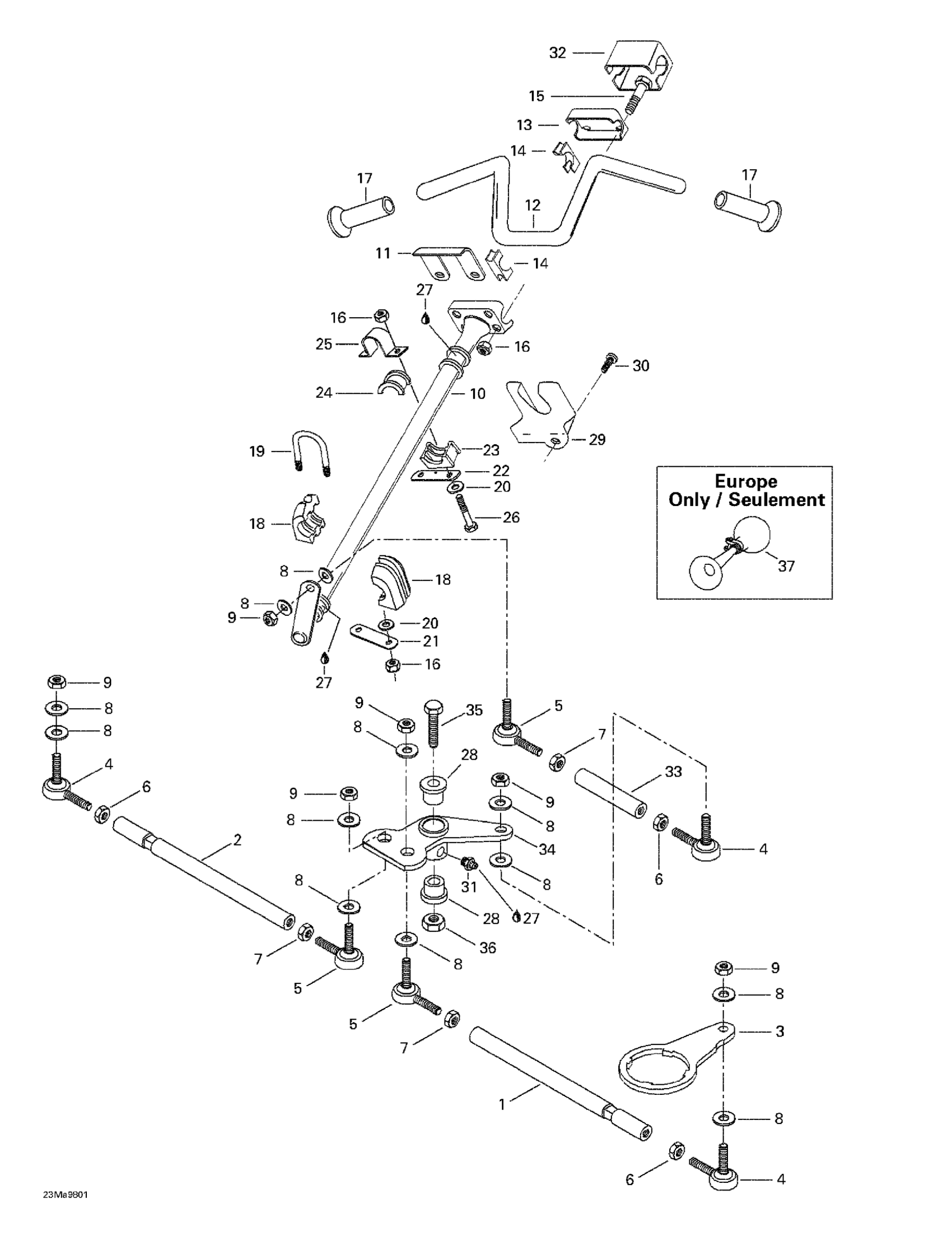

Ski-Doo Tundra II LT, 3270, 1998 Steering System Diagram

#

Description
Price

1

Tie Rod

506113300

Unavailable

2

Tie Rod

506113400

Unavailable

3

Steering Arm

506148900

Unavailable

4

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

5

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

6

RH Threaded Hex. Jam Nut M10

732610010

$0.70

7

LH Threaded Hex. Jam Nut M10

250100016

$0.70

8

Washer

503175800

$3.16

HARD WASHER - Call your local BRP dealership | LTD

503125900

Unavailable

9

Elastic Flange Nut M10

232501416

$1.43

10

Main Tube

506113600

Unavailable

11

Retainer Support

517224200

Unavailable

12

Handlebar

506115900

Unavailable

13

Steering Clamp

506055400

Unavailable

14

Steering Support

709400919

$20.12

15

Hex. Screw M8 X 55

207085544

$1.57

16

Hex. Elastic Stop Nut M8

232581414

$0.54

17

RH Grip 6-1/2"

506151530

Unavailable

18

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

19

U-clamp | X

506060600

$14.90

20

Flat Washer 8 mm

234081410

$0.79

21

Lock Tab

517134700

Unavailable

22

Paint Plate

506149500

Unavailable

23

Bushing

572064400

Unavailable

24

BUSHING - Call your local BRP dealership

572064500

Unavailable

25

Retainer Support

517126200

Unavailable

26

Hex. Screw M8 X 20

207182044

$0.70

27

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

28

CUSHION - Call your local BRP dealership

414530000

Unavailable

29

PAINT PLATE - Call your local BRP dealership

517262000

Unavailable

30

Phillips Screw 8x1/2"

364901600

Unavailable

31

Grease Fitting

408200700

$3.21

32

Steering Cover

572066900

Unavailable

33

Tie Rod

506149800

Unavailable

Tie Rod | Tundra II LT 3270.

506113800

Unavailable

34

Welded Idler Arm

506118000

Unavailable

35

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

36

Elastic Locking Nut M10 X 1.5

233601416

$1.63

37

Horn

549011291

$34.30
