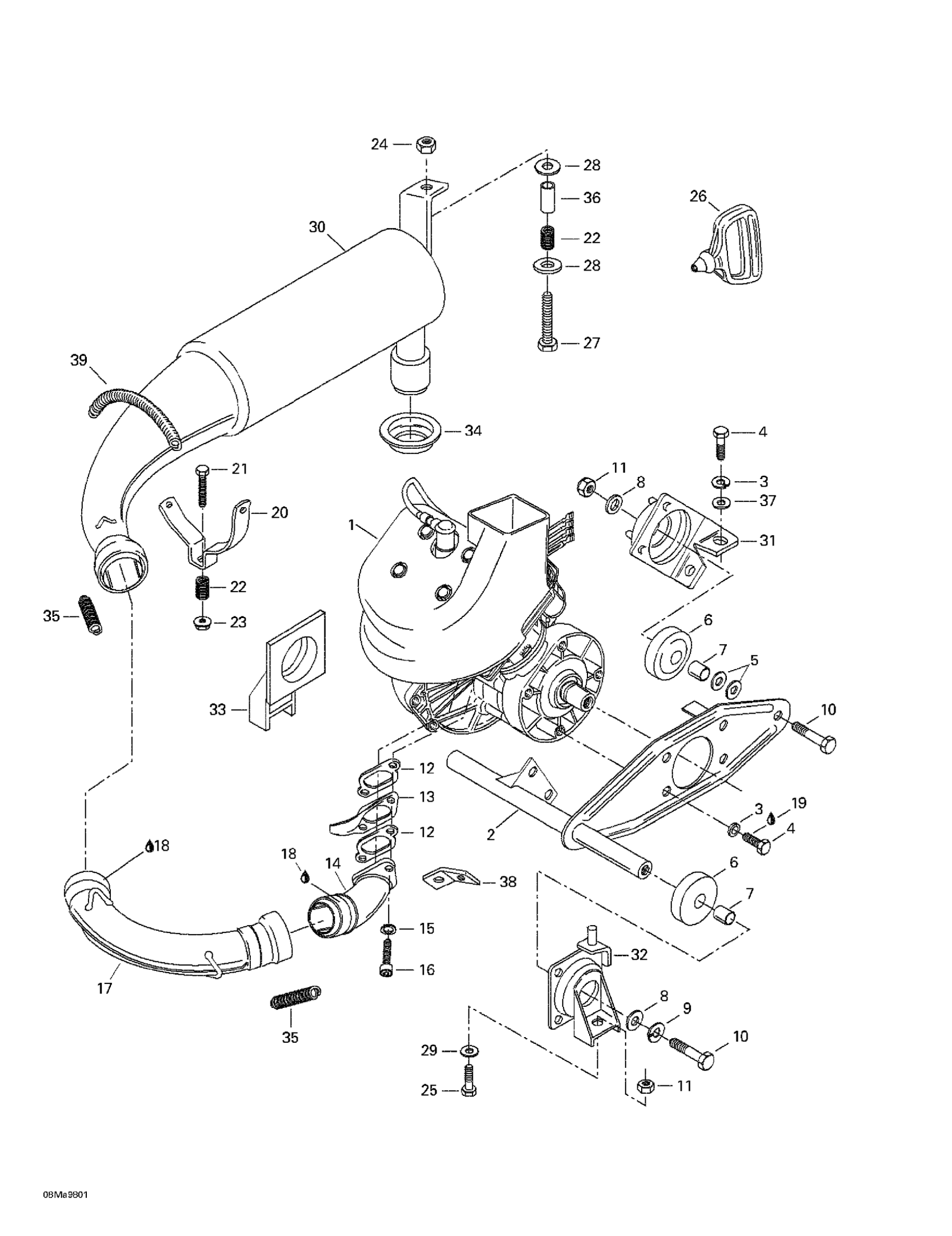

Ski-Doo Tundra II LT, 3270, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

ROTAX Engine <<277>> | Tundra R.

400206000

Unavailable

ROTAX Engine <<277>> | Tundra II LT 3270. Tundra II LT 3271.

400205900

Unavailable

2

Engine Support

512048000

Unavailable

3

Lock Washer 8 mm

234181401

Unavailable

4

Hex. Screw M8 X 20

207182044

$0.61

5

Shim

504039800

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership | Includes item 4 and 5

570126800

Unavailable

7

BUSHING - Call your local BRP dealership

517167100

Unavailable

8

Washer

506063100

Unavailable

9

Lock Washer 10 mm

224701170

Unavailable

10

Hex. Screw M10 X 40

207004044

$4.65

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Gasket 1 mm

420831847

Unavailable

13

AIR DEFLECTOR - Call your local BRP dealership

420975720

$11.51

14

Exhaust Socket

420978836

Unavailable

15

Washer-Lock Din.128

420945832

Unavailable

16

Socket Head Screw M8 X 30

205083044

Unavailable

17

Welded Exhaust Elbow

514050300

Unavailable

Exhaust Elbow | Tundra II LT 3270. Tundra II LT 3271.

514042600

Unavailable

18

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

19

Loctite 243, 10 ml

293800060

$20.77

20

Muffler Support

514017900

Unavailable

21

Hex. Screw M6 X 45

207064544

Unavailable

22

SPRING - Call your local BRP dealership

414913700

$2.28

23

Elastic Stop Nut M6

232561414

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

Unavailable

25

Hex. Screw M10 X 25

207102544

Unavailable

26

Starter Grip

572084400

Unavailable

27

Hex. Screw M8 X 50

207085044

Unavailable

28

Flat Washer 8 mm

234082410

$1.11

29

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

30

Muffler

514050200

Unavailable

Muffler | Tundra II LT 3270.

514032000

Unavailable

Muffler | Tundra II LT 3271.

514050700

Unavailable

31

WELDED SUPPORT - Call your local BRP dealership

512050400

Unavailable

32

LH Support

512048400

Unavailable

33

RH Welded Support

512048300

Unavailable

34

Exhaust Grommet

570141300

Unavailable

35

SPRING - Call your local BRP dealership

517182100

Unavailable

36

Guide

514035800

Unavailable

37

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

38

SPRING BRACKET - Call your local BRP dealership

420953170

Unavailable

39

Spring

517268300

Unavailable

40

Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.

420992069

$60.74
