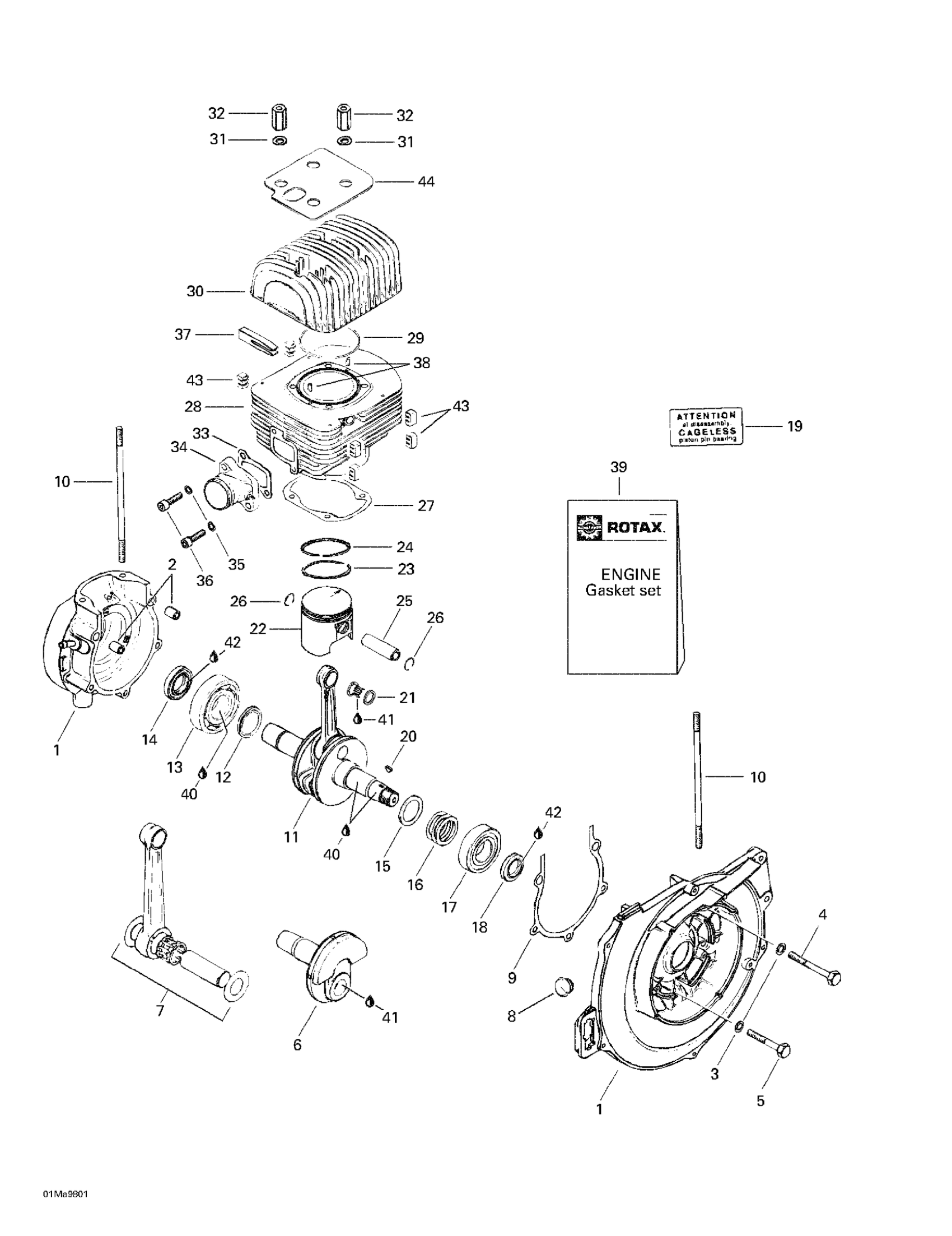

Ski-Doo Tundra II LT, 3270, 1998 Crankcase And Cylinder Diagram
#
1
Crankcase Ass'y | 1 to 5
420886709
Unavailable
Crankcase | Tundra II LT 3270. Tundra II LT 3271.
420886706
Unavailable
2
DOWEL - Call your local BRP dealership
420229150
Unavailable
3
Washer-Lock Din.128
420945832
Unavailable
4
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
6
PTO CRANKSHAFT - Call your local BRP dealership
420919951
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Cable Grommet
420860962
Unavailable
Cable Grommet | Tundra II LT 3270. Tundra II LT 3271.
420960287
Unavailable
9
GASKET CRANKCASE - Call your local BRP dealership
420850060
Unavailable
10
STUD M8 X 175 - Call your local BRP dealership
420840620
Unavailable
11
Crankshaft
420995301
Unavailable
12
SPACER RING - Call your local BRP dealership This part replaces 420827440.
420827441
Unavailable
13
BALL BEARING - Call your local BRP dealership
420932571
Unavailable
14
Oil Seal
420850050
Unavailable
15
SPACER RING - Call your local BRP dealership This part replaces 420827440.
420827441
Unavailable
16
SHIM 0.3 - Call your local BRP dealership
420944582
Unavailable
SHIM 0.1 - Call your local BRP dealership
420944583
Unavailable
Shim 0.5
420944584
Unavailable
SHIM 0.2 - Call your local BRP dealership
420944586
Unavailable
17
Ball Bearing
420932581
Unavailable
18
Oil Seal
420230425
Unavailable
19
Cageless Label
420897280
Unavailable
20
Woodruff Key
420246055
Unavailable
21
Needle Bearing
420832320
Unavailable
22
Piston 71.91, Std | 22 to 24 This part replaces 420888175.
420890070
Unavailable
Piston 71.91, Std | 22 to 24 This part replaces 420888175.
420890070
Unavailable
Piston 72.16, 1st Oversize This part replaces 420888176.
420890071
Unavailable
Piston 72.16, 1st Oversize This part replaces 420888176.
420890071
Unavailable
Piston 72.41, 2nd Oversize This part replaces 420888177.
420890072
Unavailable
Piston 72.41, 2nd Oversize This part replaces 420888177.
420890072
Unavailable
23
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
420915850
Unavailable
RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership
420915851
Unavailable
RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership
420915852
Unavailable
24
Semi-Trapez Ring 72.00 mm
420215235
Unavailable
Semi-Trapez Ring 72.25 mm
420215236
Unavailable
Semi-Trapez Ring 72.50 mm
420215237
Unavailable
25
GUDGEON PIN - Call your local BRP dealership
420916186
Unavailable
26
Piston Circlip
420945735
Unavailable
27
Gasket 0.4 mm
420831858
Unavailable
28
Cylinder with Sleeve
420913218
Unavailable
29
O-Ring This part replaces 420850540.
293300026
Unavailable
30
Cylinder Head
420823789
Unavailable
31
Flat Washer 8.4 mm
420250315
Unavailable
32
DISTANCE NUT M8 X 27.5 - Call your local BRP dealership
420842010
Unavailable
33
INTAKE GASKET - Call your local BRP dealership
420831861
Unavailable
34
INTAKE SOCKET ASS?Y - Call your local BRP dealership
420867408
Unavailable
35
Washer-Lock Din.128
420945832
Unavailable
36
Socket Head Screw M8 X 30
205083044
Unavailable
37
RUBBER FIN - Call your local BRP dealership
420860100
Unavailable
38
Drive Pin 5 X 10
420929650
Unavailable
40
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
41
Sealant Loctite 648
219703000
Unavailable
43
NOISE DAMPER - Call your local BRP dealership
420860097
Unavailable
44
SILENT BLOCK - Call your local BRP dealership
420960130
Unavailable
