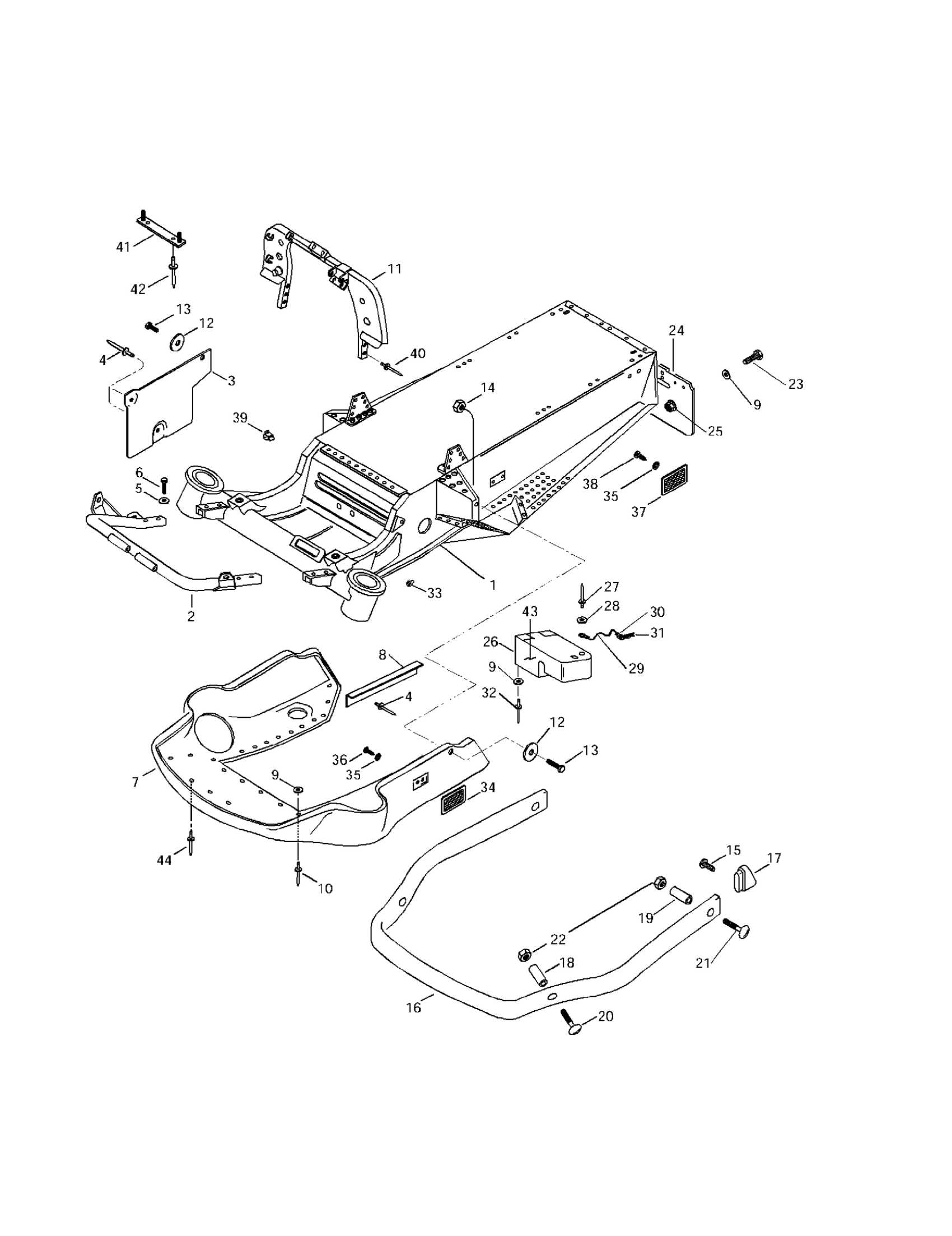

Ski-Doo Tundra II LT, 1997 Frame And Body 2 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Bumper | Tundra II LT 3270. Tundra II LT 3271.

518312400

Unavailable

3

Heat Shield | Tundra II LT 3270.

517251600

Unavailable

4

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

5

Lock Washer M6, Black

234161471

$0.52

6

Hex. Screw M6 X 25

207162544

Unavailable

Hex. Flange Screw M6 X 35

207063544

$1.35

7

Bottom Pan | Tundra II LT 3270. Tundra II LT 3271.

414920900

Unavailable

8

Paint Reinforcement

517259200

Unavailable

9

Washer

517124300

Unavailable

10

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

11

Upper Column Support

518317900

Unavailable

12

Flat Washer

224061121

$0.44

13

Hex. Screw M6 X 16

207161644

Unavailable

14

Elastic Stop Nut M6

232561414

Unavailable

15

Self Tapping Screw

222641060

Unavailable

16

Bumper

517248810

Unavailable

17

Bumper Cap

572039300

Unavailable

18

BUSHING - Call your local BRP dealership | TROUSSE

517250600

Unavailable

19

Bushing | TROUSSE

517250700

Unavailable

20

Carriage Screw M8 x 75

222287565

Unavailable

21

Carriage Bolt M6 X 55 This part replaces 207785541.

207765544

Unavailable

22

Hex. Elastic Stop Nut M8

232581414

Unavailable

23

Hex. Screw M5 X 20

207152044

$0.88

24

Snow Guard

572013800

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

Tool Box

414624900

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

WASHER - Call your local BRP dealership

391301000

$0.65

29

Wire

414407400

Unavailable

30

Terminal Ring

561502800

Unavailable

31

Hair Pin

414575600

Unavailable

32

Pop Rivet 3/16"

390906800

Unavailable

33

Grease Fitting

408200700

Unavailable

34

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

35

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

37

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

38

Phillips Screw M5 x 8

222850865

Unavailable

39

Clip

414227300

$1.45

40

Pop Rivet

390411300

Unavailable

41

Retainer Plate

517278800

Unavailable

42

Pop Rivet 3/16"

390402400

Unavailable

43

Kit-Tool | Tundra II LT 3270. Tundra II LT 3271.

529028600

Unavailable

Socket Wrench 21/26 mm

529014800

Unavailable

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

Socket Wrench 10/13 mm

529014900

Unavailable

Was 412500100 Rope-Starter

219704403

Unavailable

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

44

Pop Rivet 3/16"

390906800

Unavailable
