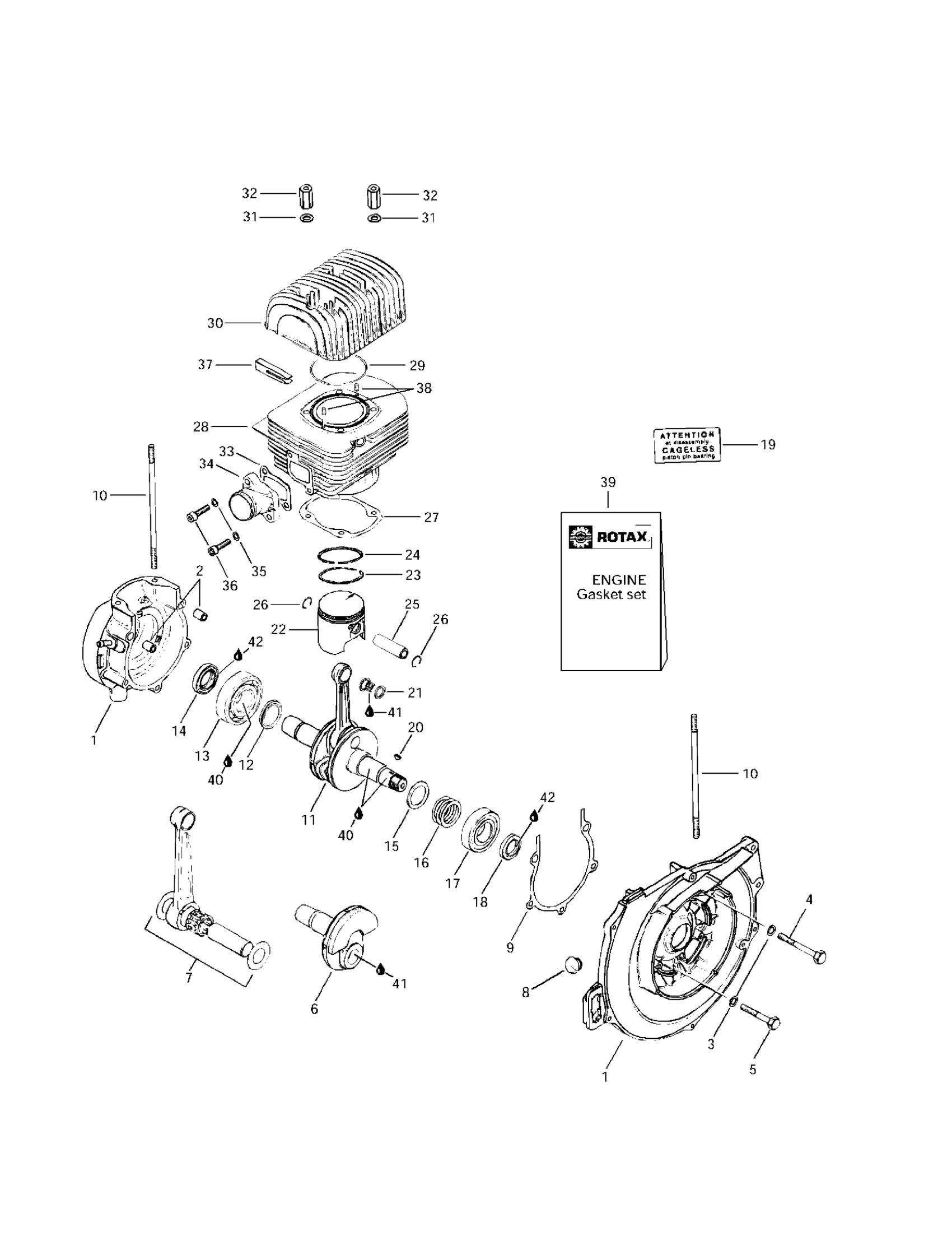

Ski-Doo Tundra II LT, 1997 Crankcase And Cylinder Diagram

#

Description
Price

1

Crankcase | Tundra II LT 3270. Tundra II LT 3271.

420886706

Unavailable

2

DOWEL - Call your local BRP dealership

420229150

Unavailable

3

Washer-Lock Din.128

420945832

Unavailable

4

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

5

Hex. Screw M8 X 55

207085544

$1.62

6

PTO CRANKSHAFT - Call your local BRP dealership

420919951

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Cable Grommet | Tundra II LT 3270. Tundra II LT 3271.

420960287

Unavailable

9

GASKET CRANKCASE - Call your local BRP dealership

420850060

Unavailable

10

STUD M8 X 175 - Call your local BRP dealership

420840620

Unavailable

11

Crankshaft

420995301

Unavailable

12

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

13

BALL BEARING - Call your local BRP dealership

420932571

Unavailable

14

Oil Seal

420850050

Unavailable

15

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

16

SHIM 0.3 - Call your local BRP dealership

420944582

Unavailable

SHIM 0.1 - Call your local BRP dealership

420944583

Unavailable

Shim 0.5

420944584

Unavailable

SHIM 0.2 - Call your local BRP dealership

420944586

Unavailable

17

Ball Bearing

420932581

Unavailable

18

Oil Seal

420230425

Unavailable

19

Cageless Label

420897280

Unavailable

20

Woodruff Key

420246055

Unavailable

21

Needle Bearing

420832320

Unavailable

22

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

Unavailable

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

Unavailable

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

Unavailable

23

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

24

Semi-Trapez Ring 72.00 mm

420215235

Unavailable

Semi-Trapez Ring 72.25 mm

420215236

Unavailable

Semi-Trapez Ring 72.50 mm

420215237

Unavailable

25

PISTON PIN - Call your local BRP dealership

420916185

Unavailable

26

Piston Circlip

420945735

Unavailable

27

Gasket 0.4 mm

420831858

Unavailable

28

Cylinder with Sleeve

420913218

Unavailable

29

O-Ring This part replaces 420850540.

293300026

Unavailable

30

Cylinder Head

420823787

Unavailable

31

Flat Washer 8.4 mm

420250315

Unavailable

32

DISTANCE NUT M8 X 27.5 - Call your local BRP dealership

420842010

Unavailable

33

INTAKE GASKET - Call your local BRP dealership

420831861

Unavailable

34

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

35

Washer-Lock Din.128

420945832

Unavailable

36

Socket Head Screw M8 X 30

205083044

Unavailable

37

RUBBER FIN - Call your local BRP dealership

420860100

Unavailable

38

Drive Pin 5 X 10

420929650

Unavailable

39

Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.

420992069

$60.74

40

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

41

Sealant Loctite 648

219703000

Unavailable

42

Dow Corning 111, 150 g

413707000

$57.82
