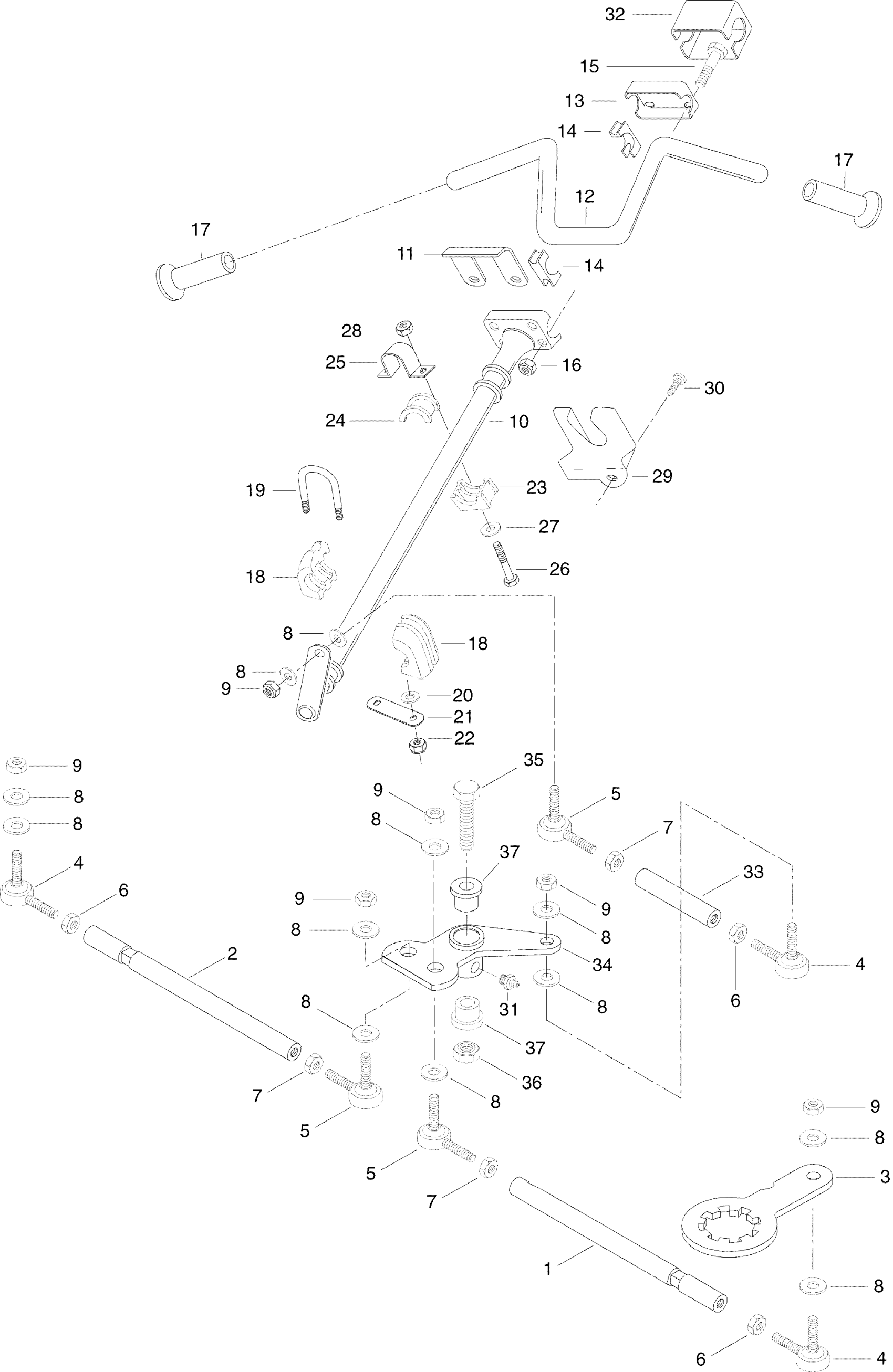

Ski-Doo Tundra II LT, 1996 Steering System Diagram
#
Description
Price
1
Tie Rod
506113300
Unavailable
2
Tie Rod
506113400
Unavailable
3
Steering Arm
506121800
Unavailable
4
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
5
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
6
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
7
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
9
Elastic Flange Nut M10
232501416
Unavailable
10
Main Tube
506113600
Unavailable
11
Retainer Support
517224200
Unavailable
12
Handlebar
506115900
Unavailable
13
Steering Clamp
506055400
Unavailable
14
Steering Support
709400919
Unavailable
16
Hex. Elastic Stop Nut M8
232581414
Unavailable
17
RH Grip 6-1/2"
506151530
Unavailable
18
HALF-BUSHING - Call your local BRP dealership
572067100
Unavailable
19
U-clamp | X
506060600
Unavailable
20
Flat Washer 8 mm
234081410
Unavailable
21
Lock Tab
517134700
Unavailable
22
Hex. Elastic Stop Nut M8
232581414
Unavailable
23
Bushing
572064400
Unavailable
24
BUSHING - Call your local BRP dealership
572064500
Unavailable
25
Retainer Support
517126200
Unavailable
27
Flat Washer 8 mm
234081410
Unavailable
28
Hex. Elastic Stop Nut M8
232581414
Unavailable
29
PAINT PLATE - Call your local BRP dealership
517262000
Unavailable
30
Phillips Screw 8x1/2"
364901600
Unavailable
31
Grease Fitting
408200700
Unavailable
32
Steering Cover
572066900
Unavailable
33
Tie Rod | Tundra II LT 3270.
506113800
Unavailable
34
Welded Idler Arm
506118000
Unavailable
