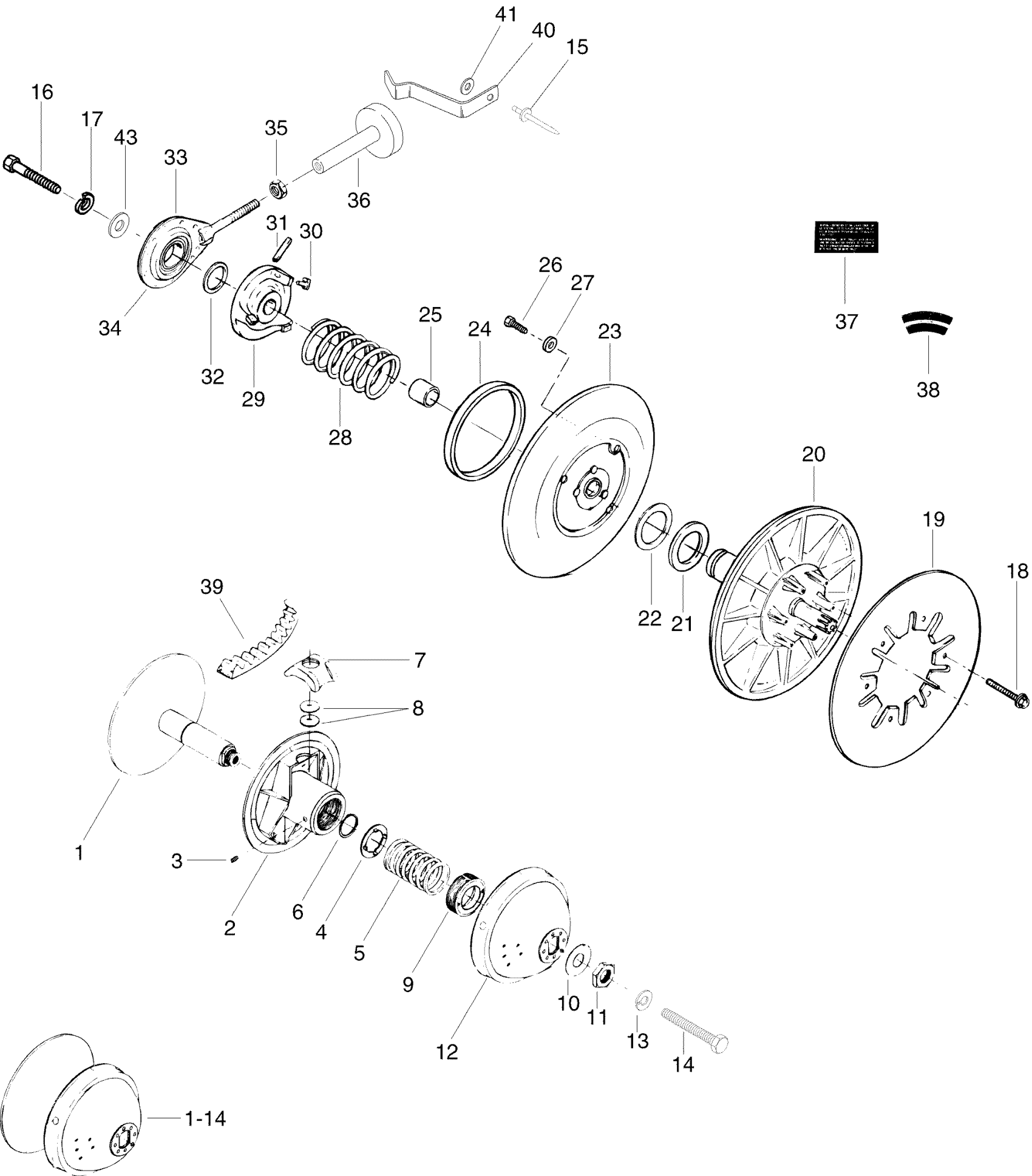

Ski-Doo Tundra II LT, 1996 Pulley System Diagram
#
1
Drive Pulley Ass'y | Includes 1 - 12.
417120600
Unavailable
1
Flange-Inner Half
417116000
Unavailable
2
Flange-Outer
417120500
Unavailable
3
Locking Screw
417116800
Unavailable
4
Guide Washer | 380 F.
417116200
Unavailable
5
Spring
417115900
Unavailable
6
Circlip
417116100
Unavailable
7
Centrifugal Block
417114300
Unavailable
8
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
9
Bushing Support
417117300
Unavailable
10
Retainer Washer
417116500
Unavailable
11
NUT - Call your local BRP dealership
417118300
Unavailable
12
Cap
417118600
Unavailable
13
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
14
BOLT - Call your local BRP dealership
417113800
Unavailable
15
RIVET_POP 1/8 - Call your local BRP dealership
390402500
Unavailable
17
Lock Washer 8 mm
234181401
Unavailable
19
Brake Disk | Tundra II LT 3270.
504124300
Unavailable
20
Fixed Pulley | Tundra II LT 3270.
504141000
Unavailable
22
SHIM - Call your local BRP dealership
504108200
Unavailable
23
Sliding Pulley | Includes 23 - 27. Tundra II LT 3270.
504138000
Unavailable
24
Bushing | Tundra.
414674900
Unavailable
25
Bushing | Tundra.
414786700
Unavailable
27
Flat Washer
399910000
Unavailable
28
Release Spring | Tundra.
414509900
Unavailable
29
Outer Cam Ass'y | Tundra.
504087400
Unavailable
31
DOWEL PIN - Call your local BRP dealership
372900500
Unavailable
32
Spacer
504003900
Unavailable
33
Support Ass'y
580593000
Unavailable
35
Hex. Nut M8
232081414
Unavailable
36
Rod Retainer
570028300
Unavailable
37
Spec Decal
414561600
Unavailable
38
Maintenance Decal
414313600
Unavailable
41
Flat Washer | Not shown
391300800
Unavailable
42
High Altitude Kit (Not Shown)
861743400
Unavailable
43
WASHER - Call your local BRP dealership
517078700
Unavailable
