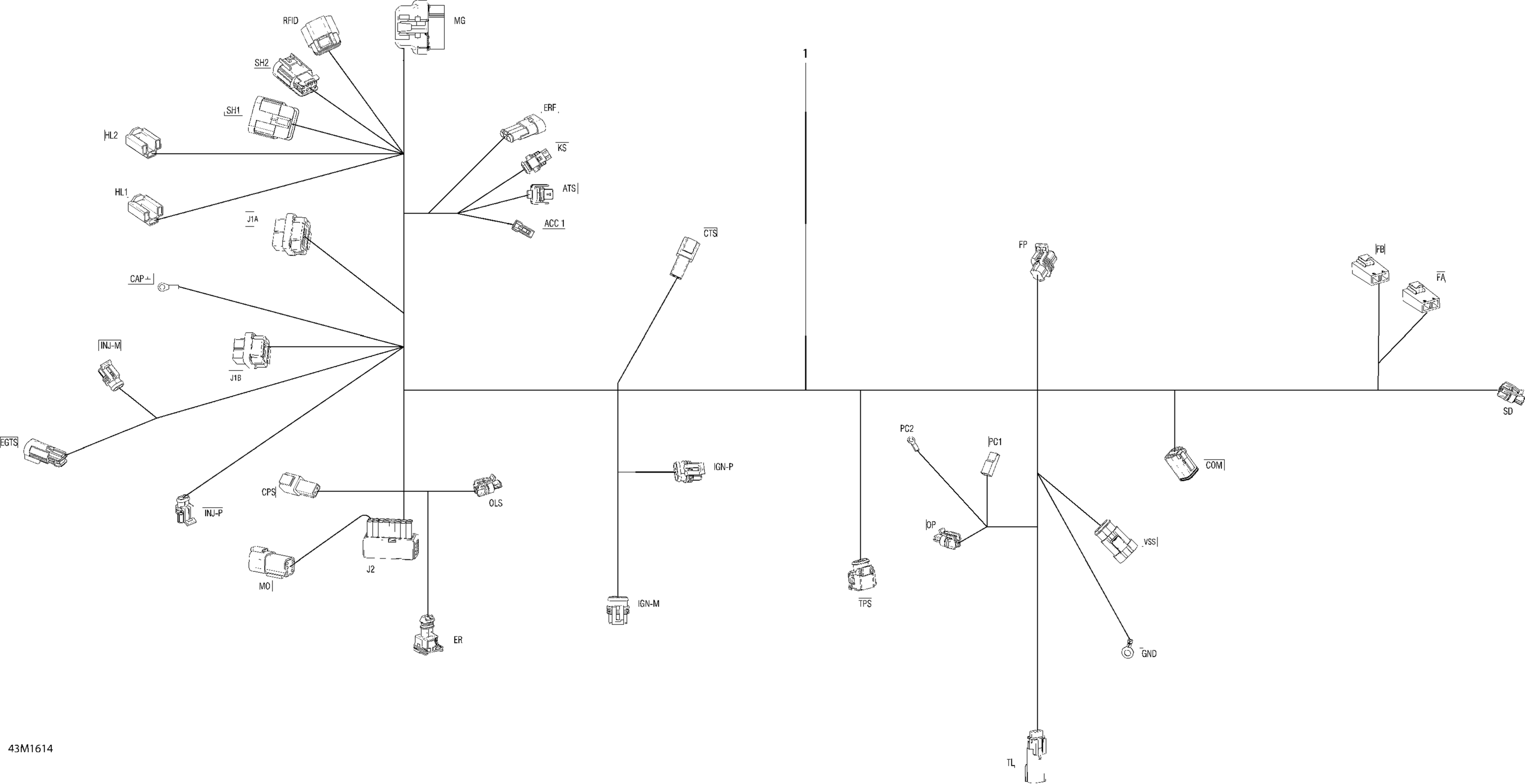

Ski-Doo TUNDRA - 2-STROKE - XTREME, 2017 Electrical Harness Diagram

#

Description
Price

1

Main Harness

515177982

$461.51

ACC1

Female Housing, 2 Circuits

515175658

Unavailable

ACC1

Female Terminal

515175231

Unavailable

ATS

Female Terminal Housing

515176890

$11.14

ATS

Wire Seal

710001163

Unavailable

ATS

Female Terminal

710001164

Unavailable

CAP+

Shrink Tubing, 6 mm

515177246

Unavailable

CAP+

Terminal Ring

515177799

$7.24

COM

Housing, 6 Circuits

278002896

Unavailable

COM

Male Wedge, 6 Circuits

515175678

Unavailable

COM

Female Terminal

278001665

Unavailable

COM

Female Terminal

278000632

Unavailable

CPS

Male Housing, 2 Circuits

409206900

Unavailable

CPS

Male Lock, 2 Circuits

409207500

$3.02

CPS

Male Terminal

278000631

$4.12

CTS

Male Housing, 2 Circuits

409206900

Unavailable

CTS

Male Lock, 2 Circuits

409207500

$3.02

CTS

Male Terminal

278000631

$4.12

EGTS

Housing Connector

515177298

$10.14

EGTS

Seal

710001233

Unavailable

EGTS

Terminal

710001224

$3.02

ER

Female Terminal Housing, 2 Circuits

415128500

$6.31

ER

Seal

415128501

Unavailable

ER

Female Terminal

278000998

$3.48

ERF

Housing

710000568

Unavailable

ERF

Wire Seal

515176621

Unavailable

ERF

Male Terminal

515176164

Unavailable

FA

Clip

710000992

$4.00

FA

Fuse Holder

409004000

Unavailable

FA

Female Terminal

409004200

Unavailable

FB

Clip

710000992

$4.00

FB

Fuse, 5 Amperes | CE

278000344

$3.22

FB

Fuse Holder

409004000

Unavailable

FB

Female Terminal

409004200

Unavailable

FB

Female Terminal

409011600

$5.11

FP

Housing

710001132

$9.60

FP

Lock

710001133

$4.12

FP

Seal

278001482

$2.55

FP

Female Terminal

278001481

$3.02

GND

Open Barrel Terminal

278001392

Unavailable

HL1

Female Housing

515177663

Unavailable

HL1

Terminal

515176909

Unavailable

HL2

Female Housing

515177663

Unavailable

HL2

Terminal

515176909

Unavailable

IGN_M

Female Housing, 3 Circuits

409209600

Unavailable

IGN_M

Wire Seal

278001013

Unavailable

IGN_M

Female Terminal

278001014

Unavailable

IGN_P

Female Housing, 3 Circuits

409209600

Unavailable

IGN_P

Wire Seal

278001013

Unavailable

IGN_P

Female Terminal

278001014

Unavailable

INJ_M

Female Housing, 2 Circuits

409209500

$13.48

INJ_M

Wire Seal

278001013

Unavailable

INJ_M

Female Terminal

278001014

Unavailable

INJ_P

Female Housing, 2 Circuits

409209500

$13.48

INJ_P

Wire Seal

278001013

Unavailable

INJ_P

Female Terminal

278001014

Unavailable

J1A

Female Terminal Housing, 34 Circuits

515176342

$20.74

J1A

Plug

515175812

Unavailable

J1A

Female Terminal

515176348

$6.03

J1A

Female Terminal

515176541

$4.42

J1B

Female Terminal Housing, 26 Circuits

515176341

$28.43

J1B

Plug

515175812

Unavailable

J1B

Female Terminal

515176348

$6.03

J1B

Female Terminal

515176541

$4.42

J2

Female Terminal Housing, 16 Circuits

515176340

$13.94

J2

Wire Seal

278000999

$2.55

J2

Seal

415128501

Unavailable

J2

Female Terminal

278000998

$3.48

KS

Female Terminal Housing, 2 Circuits

278002520

$8.57

KS

Seal

415128501

Unavailable

KS

Female Terminal

278000998

$3.48

MG

Female Housing, 24 Circuits

515175801

Unavailable

MG

Retainer Block

515175802

Unavailable

MG

Plug

515175812

Unavailable

MG

Female Housing

710000399

Unavailable

MG

Wire Seal

515175803

Unavailable

MG

Female Terminal

515175806

$0.81

MG

Female Terminal

710001131

Unavailable

MO

Male Terminal Housing, 6 Circuits

710001539

$15.57

MO

Female Lock, 6 Circuits

278000735

$3.02

MO

Male Terminal

278000631

$4.12

OLS

Female Housing, 2 Circuits

515177192

Unavailable

OLS

Wire Seal

710001163

Unavailable

OLS

Female Terminal

710001164

Unavailable

OP

Female Housing, 2 Circuits

515177192

Unavailable

OP

Seal Wire

710001332

Unavailable

OP

Terminal

710000925

Unavailable

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

PC1

Female Terminal

409010100

$5.46

PC2

Shrink Tubing, 6 mm

515177246

Unavailable

PC2

Ring Terminal

515175504

Unavailable

RFID

Female Housing

515177186

$25.35

RFID

Seal

710001233

Unavailable

RFID

Terminal

710001229

$3.02

SD

Female Housing, 2 Circuits

515177192

Unavailable

SD

Seal Wire

710001332

Unavailable

SD

Terminal

710000925

Unavailable

SH1

Housing, Packard

710001929

$10.83

SH1

Cap

710001225

Unavailable

SH1

Seal

710001233

Unavailable

SH1

Seal Wire

710001332

Unavailable

SH1

Terminal

710001224

$3.02

SH1

Terminal

710001223

$3.02

SH2

Housing

710001927

$8.57

SH2

Seal

710001233

Unavailable

SH2

Terminal

710001224

$3.02

TL

Housing

515178023

Unavailable

TL

Male Terminal

515178013

Unavailable

TPS

Female Terminal Housing, 3 Circuits

278002521

$9.60

TPS

Seal

415128501

Unavailable

TPS

Female Terminal

278000998

$3.48

VSS

Clip

710000992

$4.00

VSS

Housing

710000568

Unavailable

VSS

Wire Seal

515176621

Unavailable

VSS

Male Terminal

515176164

Unavailable
